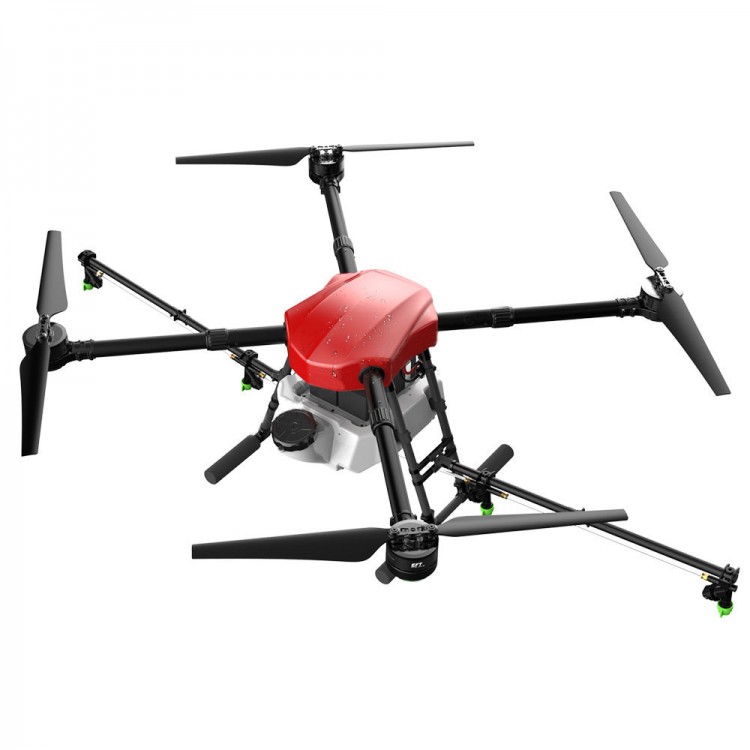

4-Axis Agriculture Drone Frame Quadcopter Frame 10KG/22LB Load Capacity with 10L Spraying System
Features:
- 10KG/22LB load capacity
- Drone frame and spraying system for agriculture drones
- User-friendly structure makes it easy and quick to fold and unfold
- Vertical foldable design: reliable and firm when the frame is folded and unfolded
- Can be fixed with pins, and the arms will not shake, which is convenient for transportation and handling
- Built-in shock-absorbing rubber rings significantly reduce the vibration caused by motor rotation
- Additional screw holes to enhance safety to cope with various harsh environments
Specifications:
- Stretched size: 950 x 950 x 495mm/37.4 x 37.4 x 19.5"
- Folded size: 600 x 600 x 495mm/23.6 x 23.6 x 19.5"
- Load capacity: 10KG/22LB
- Water tank: 10L
- Spraying range: 3-5m/9.8-16.4ft
- Single operation area: 8-10 mu (1.3-1.6 acres)
- Operation efficiency: 1-1.5 mu/min (0.2 acre/min)
Package Included:
1. Quadcopter Frame:
- Center board
- Arms
- Landing gears
2. Spraying System:
- Spraying nozzle
- Water tank
- Water hose
- Pump
Note:
- Power parts such as batteries, motors, ESC, propellers, remote controller, and flight control are not included in the package.
- E5000 power kit is recommended.
