4 axis TB6560 Stepper Motor Driver CNC Controller Board V Type for Engraving Machine

4 axis TB6560 Stepper Motor Driver CNC Controller Board V Type for Engraving Machine

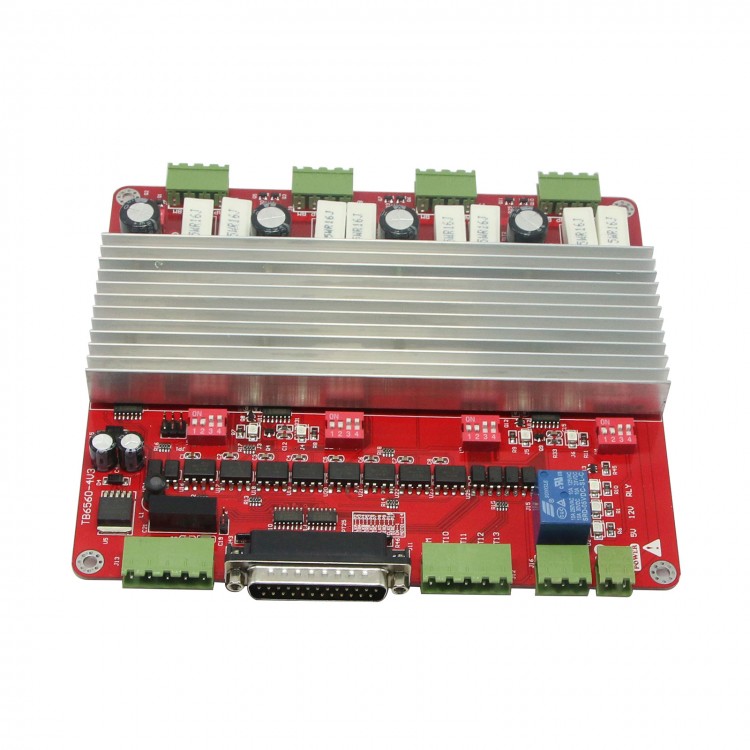

4 axis CNC controller TB6560 stepper motor driver board Products Features:
- The advantages of the TB6560AHQ chip
- The vibration of the motor is small and low noise: because of the 2/8/16 resolution can satisfy the different speed.
- Flush type low heat The area of the chip can support itself to cool when the current is low
- Supports a lot of stepper motors
- The advantages in the high-speed running condition

Features:
- 4-wire 0-3.5A normally 3A , the 3.5A is the peak currentcan be regulated rate current output, bipolar stepper motor driver
- Standard parallel port , supports Mach2/3,EMC2, KCAM 4 etc.
- Optical isolated (IO) and DCDC power isolated to protect the PC parallel port and other equipments
- Limit and emergency stop port ( standard DB9 port)
- 4 working modes: mixed mode , fast mode, slow mode, standard mode
- 4-microstep: 1 1/2 1/4 1/16
- 12-36V single power input uses the switch power chip as the 5V power supply, stable and low heat
- Adopts RC + 7414 auto semi-flow
- The relay output can control the main axis
- 5th axis extension control port

Question and Answer:

Q1:why other supplier's TB6560 driver has 3.5A/3A current,but yours is 2.5A?
A :TB6560 chip average output current is 2.5A,peak current is 3.5A,and can drive small than 3A stepper motor,ours 2.5A means the top average output current in real,also it is a long time security value,this is not design problem,it is according to the TB6560 chip self specification.

Friendly Note:
It is not worthy to save small money to buy a driver board but broken mainboard or lose step and skewing when engraving.

 Package include:
- 1 x 4axis TB6560 Stepper Motor Driver board
- 1 x DB25 parallel cable

English user manual will send by email
Software Dowload link
User manual download link
instruction download
