4 CH Channel H.264 Surveillance DVR System CCTV Security 3G Mobile Digital Recorder

4 CH Channel H.264 Surveillance DVR System CCTV Security 3G Mobile Digital Recorder
Features:
- Economical All-in-one 4CH DVR WithOut Harddisk
- Support Network Access
- Support VGA Output
- All-in-one convenient for the users
DVR Specifications:
- Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources
- GUI OSD interface,more intuitive,easier to use for user-friendly
- Support 4ch Full D1 realtime recording resolution,ahead to D1 High-Definition period.
- Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.
- Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobilephone view
- Support Multiple channel playback (Support 4CH playback simultaneously, each channel can be enlarge to full screen)
- Support Network function:one IE browser centralized monitoring and CMS Software for multiple DVR (up to 255 DVR simultaneously)
- Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play
- Supports Built-in free DDNS domain name,with Server address: http://www.dvrcenter.com
- Support Mobilephone remote view by Symbian S60V3/V5;WindowsMobile;Androidsystem;Iphone;Blackberry
- Support alarm triggered recording will send alerts matter to the designated email.
- System auto recovery to power after power reconnected,and return to the pre-power-down state
- Video Compression Format: H.264
- Video System: NTSC / PAL
- Video Input/Output(BNC): 4CH BNC input/1CH BNC output
- Audio Input/Output: 1CH audio input,1CH audio output(RCA)
- Maximum Recording Rate(each channel support at D1 real-time): D1:704*480 pixels with 120IPS /704*576 pixels with 100 IPS
- HD1:704*240 pixels with 120 IPS /704*288 pixels with 100 IPS
- CIF:352*240 pixels with 120 IPS /352*288 pixels with 100 IPS
- QCIF:176*120 pixels with 120 IPS /176*144 pixels with 100 IPS
- Image Quality Setting: Supper Best,Well,Good,Medium,Normal and Bad
- Hard Disk Storage: Support one SATA HDD, unlimited for the capacity
- Alarm Input/Output: No
- Multiplex Operation: Live display/record/playback/backup/network transmit
- Recording Mode: Auto/Manual/Timer/Motion
- Playback Mode: Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set
- Backup Device:USB flash disk/USB remove HDD/Network
- Pre-alarm Recording: Recording for 10 seconds before alarming
- Network Protocol:TCP/IP、PPPOE 、DDNS 、FTP、UPNP、ARSP and NTP
- Ethernet remote view:Support remote surveillance up to 10 users simultaneously
- VGA Interface: YES ,support VGA and BNC can work at the same time
- Log record function: YES
- Video Loss Detection: YES
- Video Adjustable: Hue /Saturation /Contrast /Brightness adjust
- PTZ Control: NO
- IR Remote control/USB Mouse: YES
- Power Source: DC 12V
- Size(mm): 260(W) x 45(H) x 234(D)

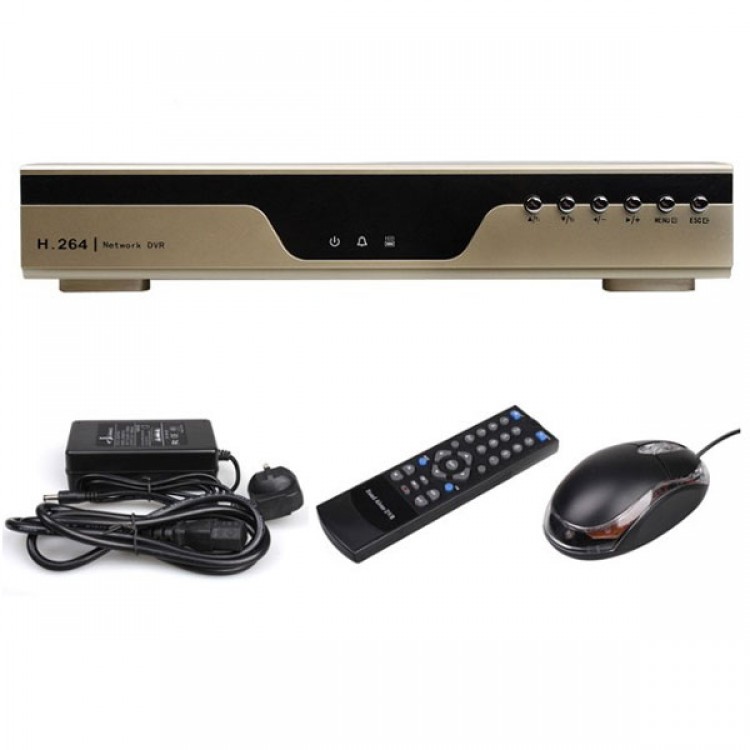

Packing List:
- 4CH Stand-alone DVR x 1pc
- Remote Controller for DVR x 1pc
- Control Mouse for DVRx1pc
- Power supply for All x 1pc
- User manual x 1pc
