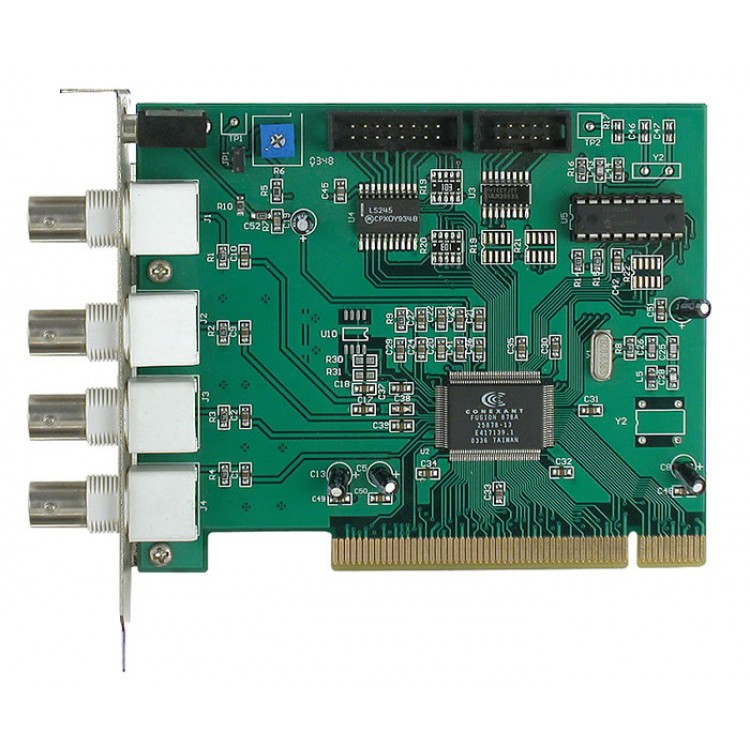

4 Channel 25/30 pfs Video DVR PCI Card

4Ch 30 Frame CCTV Digital Surveilance

Parameter

Total Capacity

PAL: 25 Frames/S

NTSC: 30 Frames/S

Compression Format

Mpeg4

Video Input

1-4 Channel Input

Audio Input

                   NO

Resolution

Displaying resolution: 320x240 768x576

Recording resolution: 320x240 768x576

Data Storage

100-150M/H/CH

Specification

PCI2.2 Criterion

Comply with PCI2.2 Criterion, support PNP

Video Input Type

SKY-104 BNC: BNCX4

Video Input Impedance

75?

Consumption

6W(Compact structure and stability system)

Card Dimension

145(L) x 120(W) x 19(H) mm

Net Weight

130g

Temperature

-10?~+50?

Configuration

Operation System

Windows 2000/XP/NT

Recommendations

P4/2.4G/DDR256M1ATI 64M or Above (VIA chipset motherboard is not compatible with SKY-203)

Maximum Cards

Support 4 cards

Accessories

CD

1 PCS

Color Box

No box

Selectable Accessories

BNC-AV adaptor*4

Package Detail

Standard Packing

DVR Card+ Moisture-proof Gauze+ Static Bag+ PVC bubble bag+ Color Box

Gross Weight

220g

Carton

25 PCS/CTN

Carton Size

W x H x D (mm)

Total Weight

KG

Software Functions:
1. 16 Channel Alarm are connectable (Infrared detector, vibrate sensor);
2. Alarm record works automatically when alerts;
3. Alarm record time is adjustable;
4. 3 Channel alarm output, light, siren are controllable;
5. Motion detect alarm are available for setting for each camera, motion detect area is adjustable;
6. Alarm record works when video motion detect alerts;
7. Video signal lost or image screen also will alert;
8. Remote transmission and control;
9. Remote image transmission can work by LAN, ISDN, telephone line and etc;
10. Remote playback, PTZ control and sever end alarm function;
11. Image resolution at 400TVL(More over camera at 420TVL);
12. Multi-record mode, like schedule record, motion record and etc;
13. Recording frame rate is adjustable per channel (1/60 fps/s/-25fps/s);
14. Alarm record: Skip to real-time record when alarm record happens;
15. Recording data can save as local hard disk. Removable hard disk or CD-recorder are for long time storage;
16. Playback: speed is selectable (fast forward or fast reverse);
17. Able to collect single frame for printing or electronic zoom in;
18.  Record and playback can work at a time.
