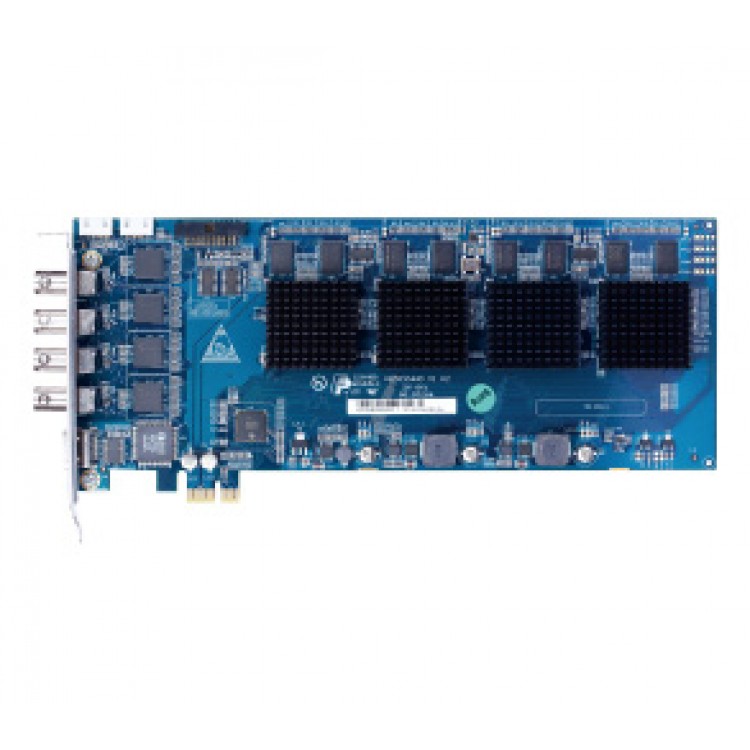

4 Channel HD-SDI 1080P Display Recording Hybird DVR Video Card

Availability: Out Of Stock

  • Price:$418.03
  • Price in reward points: 4180 Reward Points: 42
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $409.67 $401.31 $388.77 $372.05 Contact US
Quantity:

Introduction:

The INS-4HYDVRCARD01 card is the world’s leading H.264 compression card, featured with Full HD video (1080P resolution) support.

It is the first HD DVR card, adopting the latest video compression technologies and new generation encoding chipset.

Features:

  • Support 1080P HD video display and recording.
  • With advanced H.264 technology, experience 40% higher image quality and over 60% of saving on recording storage space
  • Support dual-stream compression

Functions:

  • Audio and video hardware compression card, using advanced standard H.264 video compression
    algorithm to achieve excellent image quality and high compression ratio
  • 4 channel 1080P(25,30)/1080I(50,60)/720P(25,30,50,60) HD-SDI video inputs
  • Support up to 1080P realtime live view
  • 4 channel full-HD video realtime compression, max 200fps at 1080P, support dual-stream
  • channel G.711 audio compression
  • Support motion detection, video loss and camera masking function; support OSD, logo overlay,
    video frame rate, frame rate dynamic setup and etc
  • Support RAW video and JPG snapshot function
  • Support 1 channel 1920 x 1080 HDMI output or 1 channel 1280 x 1024 VGA output with 1/4-window display.
  • PCI-E x1 port, compatible with all VEC series compression cards

Specification:


General
  • Encoder: SoC
  • PCI Standard: PCI-Express 1.0x
  • Sub Card: 4 channel audio input(BNC), 1 channel matrix output(VGA)
Video
  • Input: 4 channel, HD-SDI HD video, BNC
  • Standard: 1080P(25,30)/1080I(50,60)/720P(25,30,50,60)
  • Preview Resolution: Max 1080P(1920×1080), Realtime
  • Compression: H.264
  • Encoding Resolution:
    -1080P(1920×1080),
    -720P(1280×720),
    -1080P/4(960×540),
    -720P/4(640×360),
    -1080P/16(480×270),
    -720P/16(320×180)
  • Encoding Speed:
    -Main Stream: 25/30fps at all resolution, Max 200fps at 1080P
    -Extra Stream: 1080P/4, 720P/4, 1080P/16, 720P/16 with 25/30 fps
  • Bit Rate: 256Kbps to 10Mbps
  • RAW Stream: Support, Full-channels at 1080P / 720P / 1080P/4 / 720P/4
  • Output:
    -1 channel HDMI(1920×1080)/1 channel VGA(1280×1024, Sub card expansion)
    -1/4 display split, Support Tour function
Audio
  • Input: 4 channel, BNC(Sub card expansion)
  • Compression: PCM(G.711)
  • Sampling Rate: 16bit/8KHz
  • Bit Rate: 64Kbps
System Requirement
  • Operating System: Windows 2000/XP/2003/Vista/7
  • CPU: Intel or AMD
  • Motherboard: Based on Intel or AMD chipset, PCI-E slot
  • Memory: 1GB or above
  • Graphics: AMD, NVIDIA, Intel graphics cards, memory 256MB or above
Environmental
  • Working Environment: -10 to +55 degree C  / 10 to 90%RH / 86 to 106kpa
  • Power Requirement: 12V +/- 10%, 3.3V +/- 10%
  • Power Consumption: 16W
  • Dimension: 250mm×106.6mm
