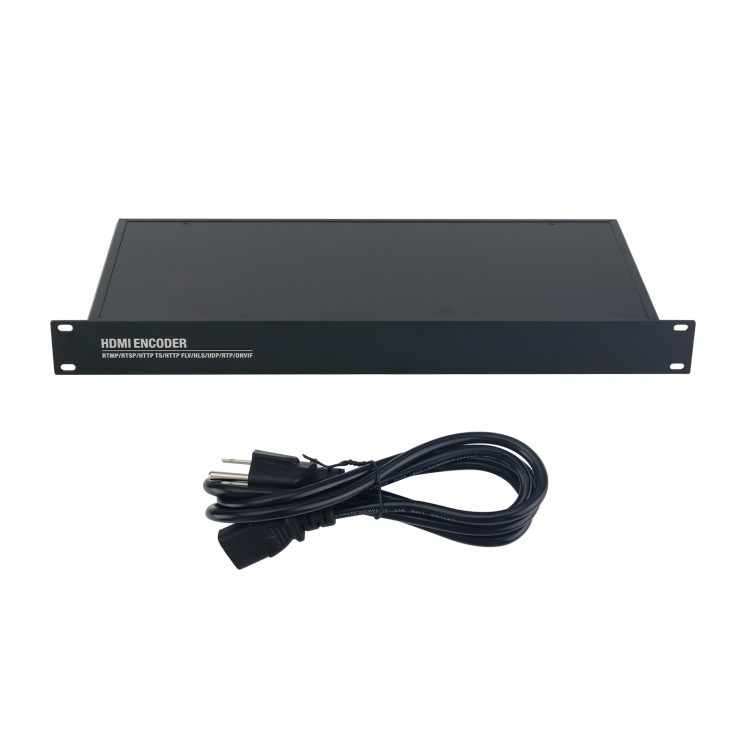

4-Channel HDMI-compatible to Network 1080P 60FPS Audio and Video Live Streaming Encoder with 1U Rack

4-Channel HDMI-compatible to Network 1080P 60FPS Audio and Video Live Streaming Encoder with 1U Rack

Features:
- Support simultaneous 4-channel 1920x1080P 60FPS HD input.
- Supports 1 main stream, 3 secondary streams, and outputs 4 streams.
- Functions: live streaming, monitoring NVR recording, IPTV live streaming, LAN live streaming, low latency transmission, OSD settings.
- 7 x 24hours 4-channel stable working.
- Collecting game computer graphics for live streaming without affecting the speed of the game computer; Directly replacing another computer to complete live streaming saves money, space, and electricity.
- Support for RTMP/RTMPS/SRT protocols to stream live to major mainstream platforms.
- Built in RTMP/SRT server, default RTMP streaming address - rtmp://192.168.1.168/live/0; default SRT streaming address - srt://192.168.1.168:9000
- By using the ONVIF protocol, NVR can retrieve the encoder IP and add it to the NVR to play stored videos.
- Supports live streaming for multiple people on the local area network, and supports for RTMP/RTSP/HTTP TS/HLS/FLV/RTP/UDP/SRT protocols for direct playback within the local area network.
- It can access IPTV modem.
- Collect computer desktop data, play PTE protocol with a delay of 80-200 milliseconds; The PTE protocol is a proprietary protocol independently developed, with the main function of low latency.
- OSD display, multiple areas in the video screen can add logo images, text, scrolling text, and time.
- Audio access: can connect 2 channel of 3.5mm external audio, HDMI-compatible audio and external audio HDMI mixing; Audio encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3; Channel: Stereo/Left/Right; RTSP stream compatible with G711A encoding.

Specification:
Audio/Video Input:
- Video input: 4 channel HDMI-compatible
- Audio Input: 4 channel HDMI-compatible built-in audio; 4 channel 3.5mm external audio

Video Encoding:
- Encoding type: H.265/H.264/MJPEG
- H.264 profile: Baseline/Main/High optional
- Encoding frame rate: 5 - 60 adjustable/same as input frame rate/automatic
- Key-frame interval (fps): 5 - 300 adjustable
- Bit rate (kbit): 32 - 32000 adjustable
- Encoded resolution: 3840x2160 /1920x1080 /1680x1200 /1680x900 /1280x1024 /1280x720 /1024x768 /1024x576 /960x540 /850x480 /800x600 /720x576 /720x540 /720x480 /720x404 /704x576 /640x480 /640x360 /608x448 /544x480 /480x480 /480x384 /480x360 /480x320 /480x272 /480x270 /400x320 /400x224 /352x480 /352x228 /320x256 /320x180 /240x180 /same as the input resolution
- Stream control: CBR/VBR optional
- Streaming protocol: support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/SRT/UDP Multicast/RTP Multicast

General Parameter:
- Network: Gigabit
- Configuration management: via WEB
- ONVIF: support for ONVIF search or browse video
- Power supply: 220V
- Power consumption: <7W
- Working temperature: -20℃ to +60℃
- Working humidity: <90%, non-condensing
- Product size: 48 x 20 x 4.5cm
- Net weight: 1.8kg

Package Included:
- 1 x Encoder
