For Toshiba TA8184 Audio Tone Control Board HiFi Preamp Tone Board Support Electronic Volume Control
$27.84
HiFi 5-Segment Ultra-low Noise Audio Tuning Board Preamplifier BA3822 Equalizer +/-11dB Adjustment
$35.22
2.1 Audio System Bluetooth Digital Power Amplifier Board TPA3116 2x50W + 100W Subwoofer 8-26VDC Input
$25.20

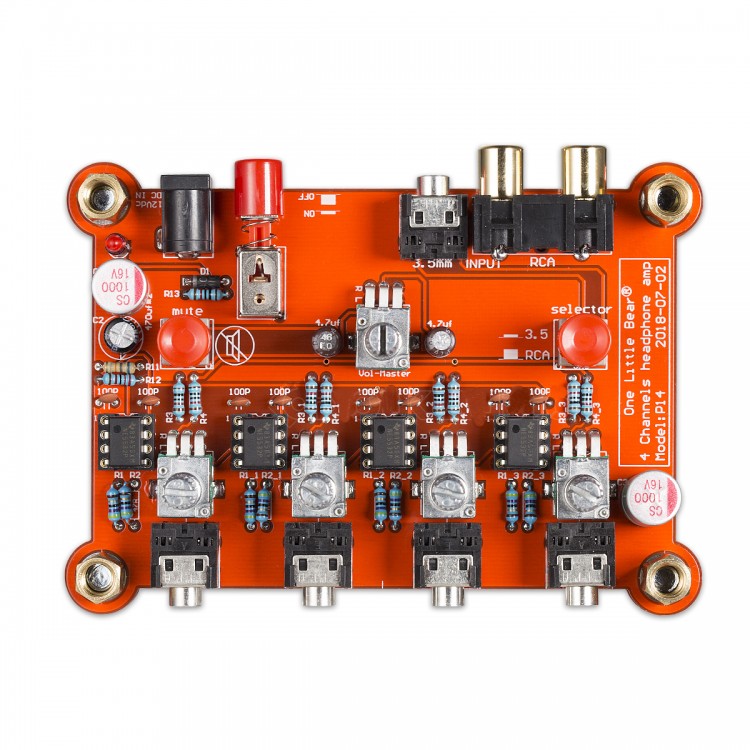

4-Channel Headphone Amplifier Splitter Independent Volume Control Master Volume Control P14
Features:
- Two input modes and switch freely: users can choose 3.5mm jack or RCA jack input, and can switch between the two modes freely by 3.5/RCA selector
- Double volume control and one mute button: with 4 independent volume controls, 4 users can enjoy the same sound source but with different volumes at the same time.
- Better shielding design: adopting 3 layers of PCB, it performs well in shielding interference and offers clear sound for each channel
- With 4 independent Op Amp(NE5532): each channel equips with its own op amp so users can change or upgrade it according to his requirements for sound characteristics
Parameters:
- Input interface: stereo 3.5mm interface, stereo RCA interface
- Input impedance: 22KΩ
- Input level: +22 dB
- Output interface: stereo 3.5mm
- Output impedance: 16Ω
- Gain: 19 dB/channel
- SNR: gt; 98 dB
- Power supply: DC 12V 500mA
Package Included:
- 1 x 4-Channel Headphone Amplifier
- 1 x 12V Power Supply
