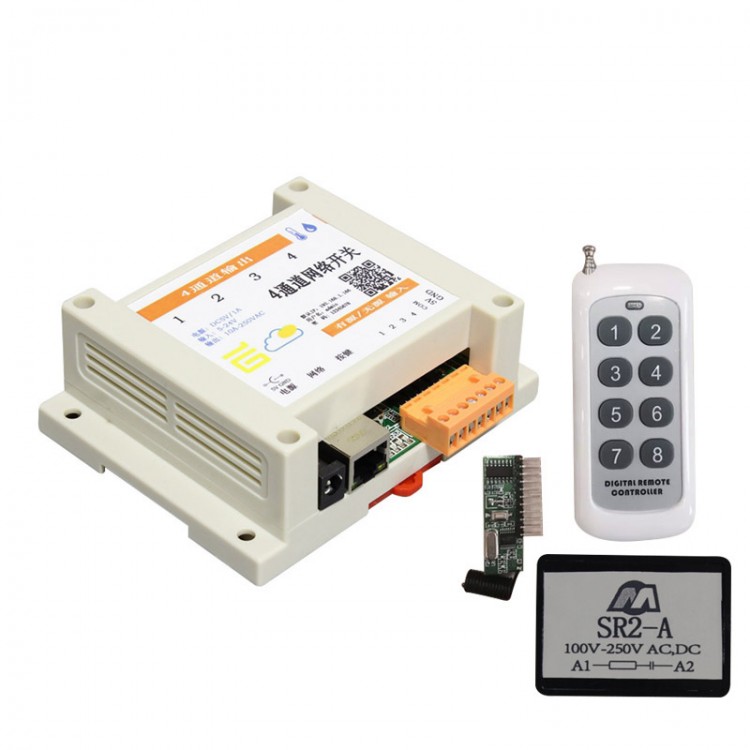

4-channel Network Relay Switch with 8-channel 300m Remote Controller and Surge Suppressors

4-channel Network Relay Switch with 8-channel 300m Remote Controller and Surge Suppressors

Product Description:
Support native control,remote control,Android the second develop interface,onboard temperature humidity sensor.Support TCP,UDP,TCP modbus,ICMP,IGMP,NTP,ARP,MQTT,HTTP protocol.Support outer web PC and Android integrated manage,support local area network (LAN) PC centralized control
Optional GPRS version,support internet of things (IoT) data card,standard 50M/month.

Features:
- Ethernet RJ45 interface
- Onboardtemperature humidity sensor
- Support 433MHz remote control
- Onboard WEB servicer,can visit and control through web
- 4-channel 250V/AC 10A relay independent output
- Support status return,real-time display present relay status
- 4-channel isolation panel pointinput,can directly control relay output
- Standby power:0.8W;The max power:3W
- Output port the max voltage current:AC 250V/10A
- Size:115x90x40mm
- Working temperature:-25-80
- Storage temperature:-40-85
-Storage humidity:5%-95%RH
- HTTP PORT:80,support modification
- TCP PORT:1234,support modification
- DHCP:forbidden,support modification
- Host name:iotzone,support modification
- Sub-web code:255.255.255.0,support modification
- NAC address:Random,support modification
- Prwferred choice DNS servicer:114.114.114.114,support modification
- Spare:DNS servicer:8.8.8.8,support modification
- User name:admin,not support modification
- User code:12345678
- Http the max users:6,not support modification

5V DC power supply,with selt-recory fuse
One key parameter restore
Support scenarios mode,can edit by webpage and support input hardware
Support TCP Modbus protocoltrigger
Support Chinese English interface
Support TCP/UDP two communication order control

G4 support GPRS data control,scan the QR code,you can achieve remote control.

http://www.iotzone.cn/upload/file/1506578589.pdf

4-channel Network relay switch mobile phone remote control

Externsl web visit APP conrol:
External web operation procedure:
- Connect hardware,connect router and make power on.
- Download Android APP
- Open the setting in the webpage,scan the QR code
- Device binding is done,can control name,real-time display status and display temperature humidity

Network relay switch V4S Video

Advantages:
- Imported chip and resistance capacitance
- 100MHz main frequency industrial ARM as 32 bit processor,stable and fast operation speed
- 10M/100M Ethernet physical layer chip(PHY),fast response
- Environmental friendly copper terminal
- Discrete device independent drive relay
- Real-time operation system
- Multi watchdog timer,real-time monitor program operation

8-channel 300m remote controller

http://v.youku.com/v_show/id_XNzc5MzQzNTQ4.html

http://www.iotzone.cn/upload/file/1442458687.pdf

Remote Controller parameter:
- Working voltage:3-5VDC
- Working current:<=4mA（5.0VDC）
- Working method:OOK/ASK
- Frequency range:315MHz
- Size:40x12.5x8MM

Surge suppressors parameter:AC contactor and relay protector prevents electronic circuit form surge and protects relay contractor.

Package List:
- 1 x 4-channel Network relay switch
- 1 x 8-channel 300m remote controller
- 1 x Surge Suppressors
- 1 x User manual
