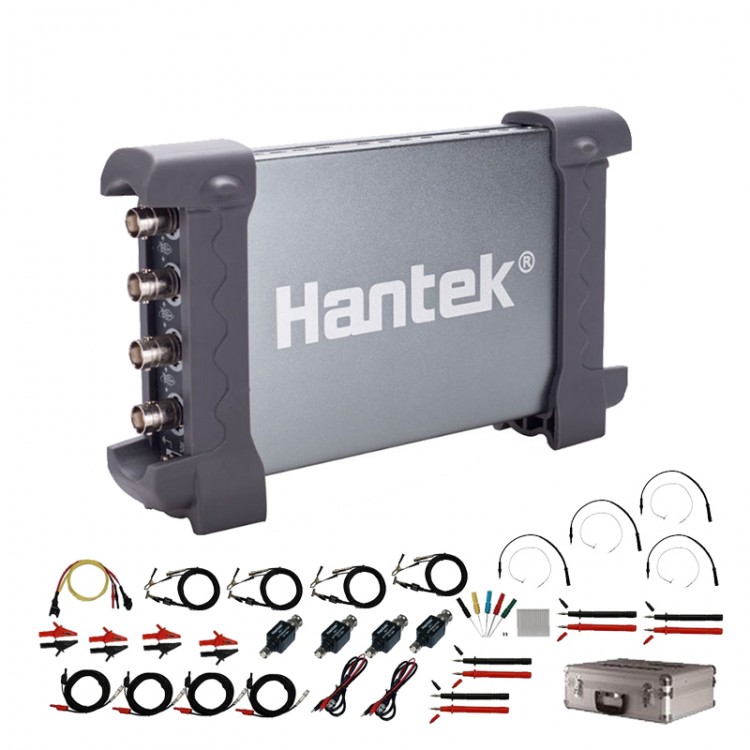

4 Channel Oscilloscope Hantek Automotive USB Oscilloscope 70MHz 1GSa/s Sampling Hantek6074BE Kit III
Product Introduction:
Standard
equipped over 80 types of automotive measurement function (Ignition
Action/The Sensor/Bus Diagnosis/Performer/Startup & Charge); USB 2.0
interface plug and play, and no need extra power supply; Support tablet
PC; Support for WIN10/ WIN8/WIN7, etc. Free software upgrading
constantly, higher cost performance; Support USBXI, easy to operate. 4
channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high
input sensitivity and large input range, 70MHz high bandwidth, small
size, easy for carrying. Dynamic cursor tracking, waveform record and
replay function.
Features:
* Standard equipped over 80 types of automotive measurement function;
First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes
adjusting valve vacuum & ignition, Idle exhaust ignition, Starting
exhaust ignition
Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits
*
Fit for the portable computers, table PC, and suitable for wild mobile
use and business trip use. Support for WIN10/ WIN8/WIN7 etc.
* USB 2.0 interface plug and play, and no need extra power supply;
*
Great function, More than 20 kinds of automatic measurement function,
PASS/FAIL Check function. Resourceful trigger function, dynamic cursor
tracking, waveform record and replay function.
* Good mechanical
design with small size which is easy for carrying. The outer case is
made by the same material as that for iPad - Anodized aluminum. It has
great heat resistance and abrasive resistance with beautiful appearance.
The hardness of aluminum alloy surface is greatly improved.
* 4
channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high
input sensitivity and large input range, 70MHz high bandwidth,
* The waveform data could be output to EXCEL, BMP, JPG.
* Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
* FFT spectrum analyzer
* One computer could connect with multiple oscilloscopes, expand the channel number easily.
* Provide secondary development library DLL; Provide developing examples for Labview\VB\VC\QT.
Package Included:
- 1 x Set of Digital Oscilloscope
