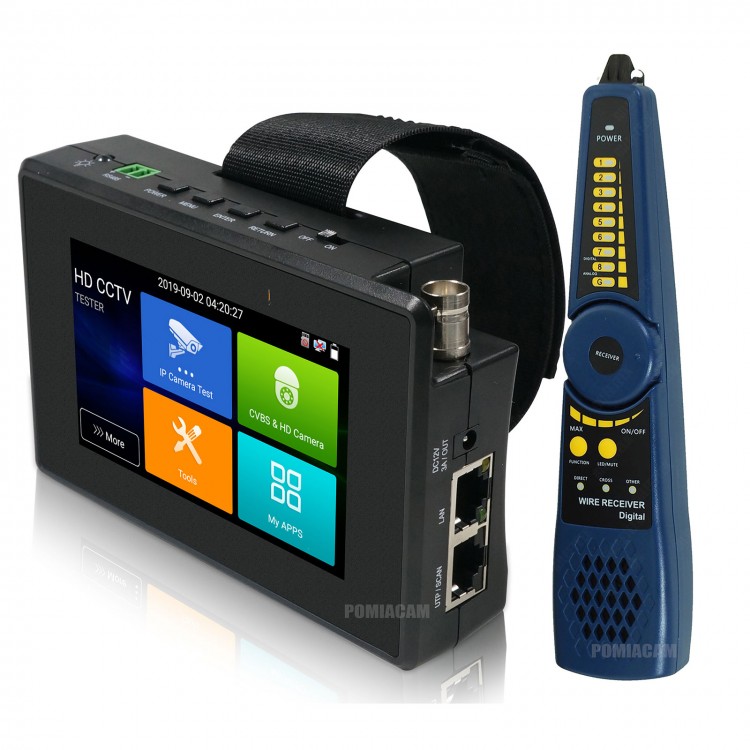

4" HD CCTV Tester 4K 8MP IP CVBS CVI TVI AHD w/ WiFi Hotspot IPC-1800ADH Plus + Digital Cable Tracer

4" HD CCTV Tester 4K 8MP IP CVBS CVI TVI AHD w/ WiFi Hotspot IPC-1800ADH Plus + Digital Cable Tracer

Upgrading:
● 8MP TVI / 8MP CVI / 8MP AHD / 4K H.265 IP / CVBS Camera test

Features:
● Model: IPC-1800ADH Plus
● 8MP TVI / CVI / AHD, 4K H.265 IP, CVBS Camera test
● H.265 / H.264, 4K video display via the general public
● For Dahua, Hikvision, Axis etc.
● Fast ONVIF, automatic video display and create test report
● DC12V 3A, PoE output power DC 8V
● Integrated WIFI, create a WIFI hotspot
● RJ45 cable TDR test, cable quality test
● Wrist design, portable and easier to carry
● 10/100 / 100M Ethernet, Display of network and traffic status

Camera Test:
● 4 inch touch screen, 800 * 480 resolution
● H.265 & H .264 IP, 4K video display via the general public
● Fast ONVIF, automatic connection and display image, create test report
● For Axis, Hikvision camera test, enter the ONVIF application, enter the username and password to test
● 8MP TVI / 8MP CVI / 8MP AHD
● CVBS camera test and PTZ control
● IPC TEST (non-onvif test), for HIK test tool (for Hikvision camera), for DH test tool (for Dahua camera)
● IP discovery, just by a key to detect all IP address network cameras
● Fast video, just by a key to detect all network cameras and automatic display
● 12V 3A DC output power
● PoE DC 48V output power, maximum power 25.5W
● Innovative HD coaxial focusing, video signal quality test
● Built-in WiFi, display the wireless camera image, create a WIFI access point

Cable Test:
● RJ45 cable TDR test, state of test cable pair, length, attenuation, reflectivity, impedance, bias etc.

Other Functions:
● 10/100 / 1000M Ethernet, network status and traffic display
● Wrist design, portable and easier to carry
● TesterPlay: tester, android version mobile phone, PC display at the same time
● Network tool: PING test, IP address scanning, blinking port etc.
● Drop-down menu, can select Poe power, IP setting, CVBS, information etc. from LAN
● Auto-update software, you can install applications with the android version
● Media player, 4K video files and MKV/MP4 media files
● Display its authentic resolution of IP camera images
● PTZ control supports more than 30 protocols. For PELCO-P, PELCO-D, and SAMSUNG
● Audio input, support for recording and saving audio / LED lamp, calculators, music players and other application tools
● 7.4 V / 2400mAh, after 4 ~ 5 hours of charging, the working time lasts 7 hours

Specifications:
Display:
* New 4 inch IPS touch screen, 800 * 480 resolution

CVBS:
* 1-channel BNC input, NTSC / PAL (automatic adaptation)
* PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols. For PELCO-D / P, Samsung, Panasonic, etc.

IP 4K / H.265 / H.264 Camera Test:
* IP Discovery / ONVIF / IPC Quick Test / RTSP Game / APK Client
* Quick video: Automatically display video, create test report
* Test tool for Hik: Press a single key to activate camera for Hikvision, image test, can change the user name, password and IP settings
* Test Tool for Dahua: For Dahua Camera Test, Change Username, Password and IP Settings

Coaxial HD Test:
* TVI 8MP camera test, 3840x2160P 15 FPS, UTC control / OSD call menu
* CVI 8MP camera test, 3840x2160P 12.5 / 15 FPS, UTC control / OSD call menu
* AHD 8MP test, 3840x2160P 15 FPS, UTC control / OSD call menu
* Zoom Image: 4x zoom, to enlarge the image, screen snapshot, record, save, display and record and read

Power Supply:
* 12V / 3A DC12V / 3A output power off, temporary power supply for the camera

PoE Output Power:
* 48V PoE output power, maximum power 25.5W

Network Test:
* Link monitor, port flashing, Ping test

Audio Test:
* 1 channel audio signal input, test if the sound is normal, 1 channel audio signal, to connect the headphones

Data Monitor:
* Catch and analyze control device control data, can also send hexadecimal

Drop-Down Menu:
* You can select PoE power switch, IP setting, CVBS, LAN information, etc. in any interface

External Power Supply:
* DC 12V 1A

Operation Setting:
* OSD menu, select the desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc.

Automatic Shutdown:
* 1-30 (mins)

Working temperature:
* -10℃ to 50℃

Working Humidity:
* 30% to 90%

Dimension/Weight:
* 126 x 83 x 33 mm / 0.32 kg

Applications:
● Installation and maintenance of the video surveillance system
● Network cabling project installation and maintenance
● Dome camera, 4K H.265 IP camera test
● Video transmission channel test
● PTZ controller

Package Included:
- 1 x Set of IPC-1800ADH Plus + Digital Cable Tracer
