4 in 1 Network Cable Tester RJ45/RJ11/USB/BNC LAN Cable Cat5 Cat6 Wire Tester

4 in 1 Network Cable Tester RJ45/RJ11/USB/BNC LAN Cable Cat5 Cat6 Wire Tester

Product Description:
- Test 4 types of cables: RJ-45,RJ-11,USB and BNC.Test installed wiring or patch cables.
- Tests shielded (STP) or unshielded (UTP) LAN cables.
- Test shields in USB cables.
- Can test from 2 remote points.
- Beeper provides audible annunciation of test results.
- Remote unit stores in Main unit.
- BNC terminator 25/50 Ohm indications.
- Straight or crossover indications.

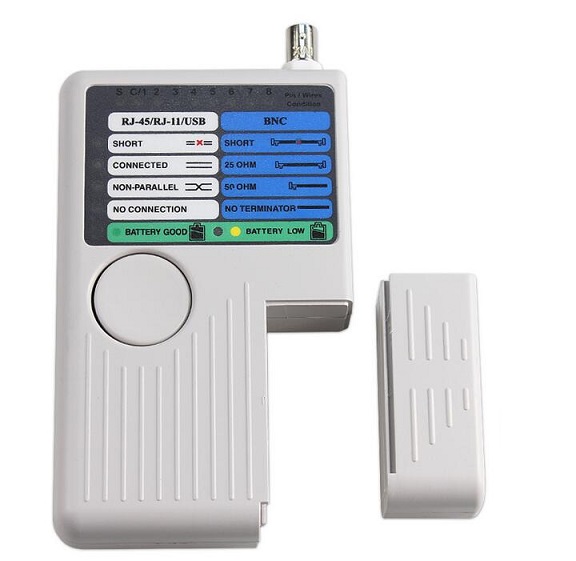

- LEDs indicate connections and faults of wire and pins.
- RJ-11/RJ-45 are equipped with 50u gold plating.300 feet test distance (RJ-45/RJ-11/BNC).
- Ergonomic portable handheld design.

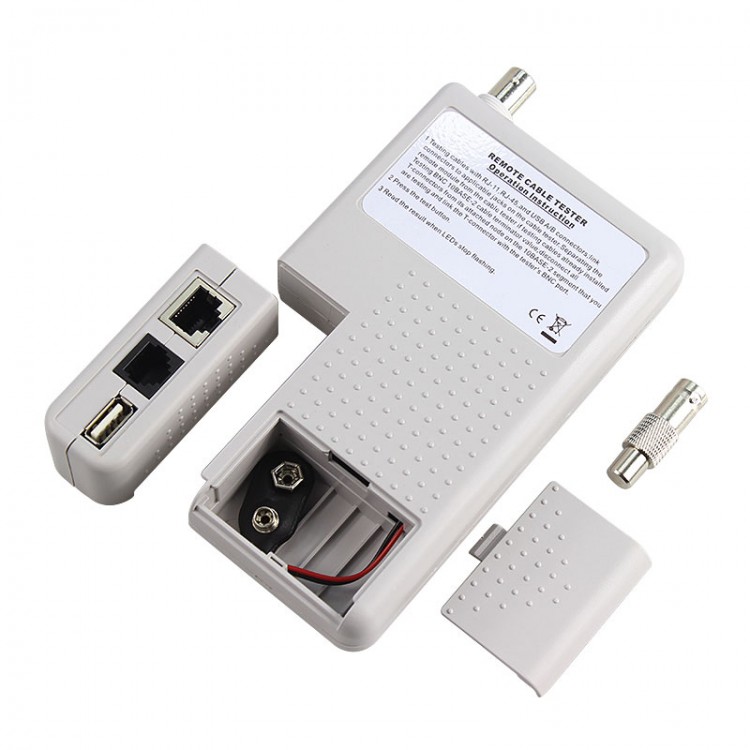

- Powered by a 9V Alkaline battery. (Not included)
- Convenient battery access.
- Low Battery Indicator.
- Simple one button test.
- Fast speed testing.
- With a soft leather bag for carrying.
- High quality warranted.

Following connectors with cables are applicable for testings:
- RJ45 plugs--Shielding(STP) or Non-shielding(UTP)
- RJ11 plugs--6P telephone plug
- USB plug--USB/A type to USB/B type
- BNC--to test the terminator value

Specifications:
- Cable Tested: UTP and STP LAN cables,terminated in RJ-45 male connectors (EIA/TIA 568);RJ-11 cables with male connectors,2 to 6 conductors installed;USB cables with Type A flat plug on one end and type B square Plug on other end;BNC cables with male connectors
- Faults Indicated: No Connections,short circuit,Opens and Crossover
- Low Battery Indicator: LED lights to indicate low battery Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included)
- Color: Grey
- Item dimensions: Appox. 162 x 85 x 25mm (6.38 x 3.35 x 0.98 inch)
- Item weight: 164g (Battery excluded)
- Weight: 215g

Package List:
- 1 x 4-in-1 Network Cable Tester

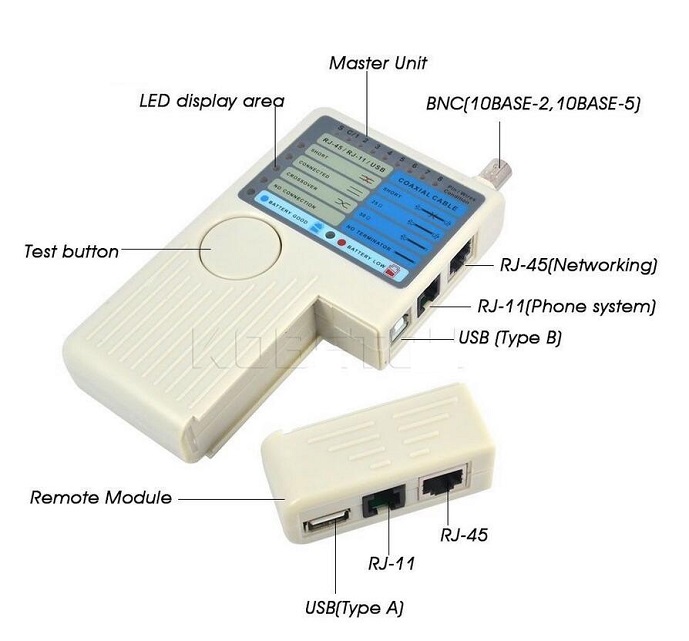

- 1 x Far End Remote Jack (USB RJ45 RJ11) (Attached to the main unit)
- 1 x BNC Remote Jack
- 1 x User Manual
