4 in 2 out 30A Relay 4 Port Network Switch Controller TCP UDP Ethernet Internet WEB Android Control
Description:
The controller has 2 channel 30A outputs switch control (default 2NO 2NC), 4 channel switch input detection with active reporting function, support active 5-12V input detection or dry contact inputs. Network Direct integrated, support TCP client, TCP server, UDP protocol, support network WEB parameter settings. The power supply is 9/12V, optional,please leave us a message about the one you want.
Features:
- 2 channel relay outputs control, 30A, 6000 watts current passive outputs per channel
- 4 digital inputs detection, support for passive dry contact (also supports active 5-12V DC switching inputs), With active trigger switch reporting functions.
- Network Direct integration, support TCP client, TCP server, UDP protocol

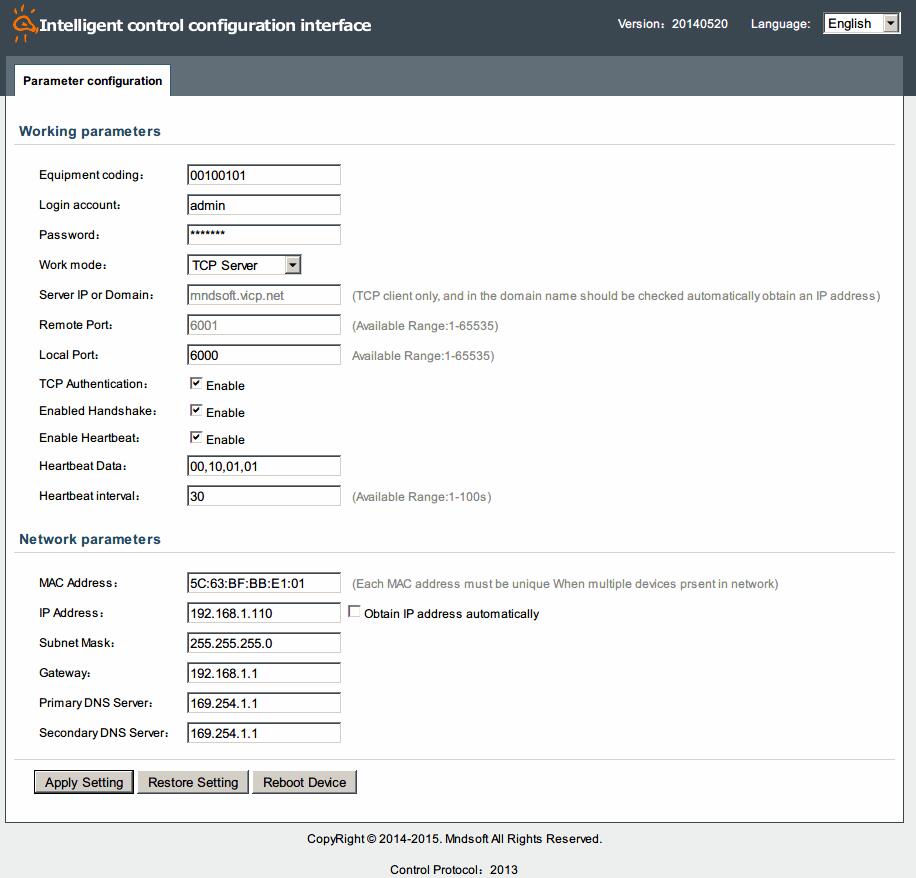

- Support network WEB parameter settings, you can connect to a wireless router to get wireles wifi control. default IP: 192.168.1.110, port 6000, admin / admin
- Standard 9V or 12VDC power supply (default 12v) , can be round hole or terminals type. (Leave message when ordering)
- Support Android mobile phone for wifi control
- Supports a variety of control modes. Supports digital input trigger relay switches, remote real-time control, timing control mode
- Easy to configure. Each channel can be configured among three modes.
- Trigger delay can be configured. 1-99 seconds.
- Auto power off memory. automatically save the last switch state when disconnected, restore after power on.
- Single or multiple jog control. Time delay control single channel or multi-channel at the same time.
Package List:
- 1 x Relay control box
- 1 x DC9V, 12V / 1APower adapter (optional)
- 1 x RJ45 network cable 1.8 m
