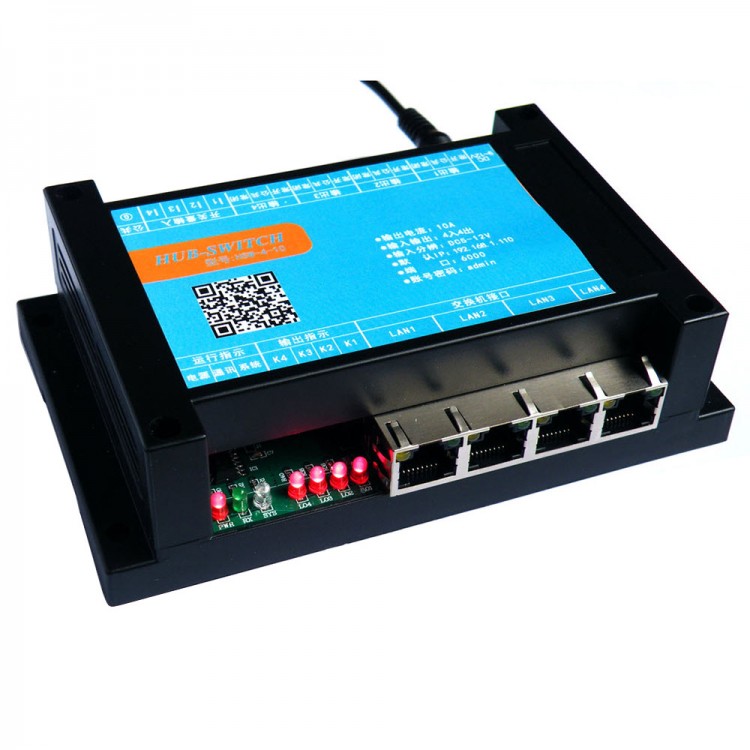

• 4 in 4 out 10A Relay 4 Port Network Switch Control Board TCP UDP Ethernet Internet WEB Android Control

4 in 4 out 10A Relay 4 Port Network Switch Control Board TCP UDP Ethernet Internet WEB Android Control

Availability: In stock, usually dispatched in 1 business day

  • Price:$78.88
  • Price in reward points: 789 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $77.30 $75.72 $73.36 $70.20 Contact US
Quantity:

4 in 4 out 10A Relay 4 Port Network Switch Control Board TCP UDP Ethernet Internet WEB Android Control

Description:

The controller added 4 port RJ45 10/100M Network switch on the basis of 4 in 4 out Network Relay (click to view), for the convenience to connect more devices like Net camera.

Specification:
- Working voltage: DC9-12V
- Working current: 1000 mA
- Operating temperature: -40 degrees C ~85
- Output control: 4 channel 10A relay (support normally open / normally closed)
- Input switch quantity: 4 channel passive switch quantity detection, supports DC3-12V active switch quantity detection
- Network interface: 4 channel10/100M dual speed adaptive, support the port automatic flip (MDI/MDIX Auto), support MAC address self-learning function
- Appearance size: 145*90*40mm

Package List:

- 1 x Relay control
