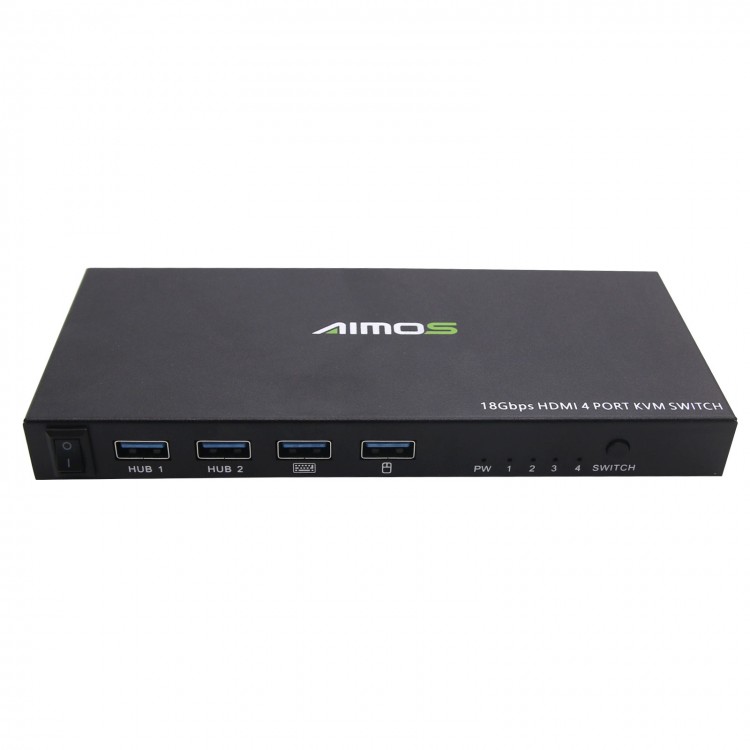

4 Port HDMI KVM Switch 4 IN 1 OUT For 4Kx2K Support 18Gbps/ HDMI 2.0/ HDCP 2.2 AM-KVM401

4 Port HDMI KVM Switch 4 IN 1 OUT For 4Kx2K Support 18Gbps/ HDMI 2.0/ HDCP 2.2 AM-KVM401

Features:
- Support 4-way HDMI input, 4-way USB input & 1-way HDMI output.
- Support input by a mouse and a keyboard; Support switching by shortcut keys; Support USB HUB function.
- Compatible with HDMI 2.0B, DVI 1.1 and HDCP 2.2.
- Video resolution up to 3840*2160 @60Hz; Support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0.
- Fit for audio formats, including LPCM2/ 5.1/ 7.1CH and Dolby 5.1CH.
- One set of keyboard, mouse and montior can be used to control 4 hosts.
- You can share a printer and a U disk, cutting down costs.
- 3 Switching Ways: By the device's SWITCH button, by your mouse or by your keyboard's shortcut keys. Press your keyboard's [ctrl] +[ctrl] + 1(or 2/3/4) or [Scroll] + [Scroll] + 1(or 2/3/4) to switch to to PC1/ PC2/ PC3/ PC4.
- Built-in ESD protection.
- Plug to play, requiring no driver.

Parameters:
Video:
- HDMI Version: HDMI 2.0 (Compatible with DVI 1.1); HDCP 2.2
- Transmission Rate: 6Gbps for each channel (Total 18Gbps)
- Resolution: 3840*2160@60Hz
- Interface: HDMI Female
- Compatible Cable Length:
<15M (Res: 1920*1080@60Hz);
<5M (Res: 3840*2160@60Hz)

USB Interface:
- Version: USB 2.0
- Uplink Port: USB-B
- Downlink Port: USB-A

Other Parameters:
- Power Supply Mode: USB 5V
- Power Consumption: Max. 4W
- Operating Temperature: -5℃ to 70℃
- Operating Humidity: 5% to 90%

Package Included:
- 1 x HDMI KVM Switcher
- 4 x USB Cables
- 1 x User Manual
