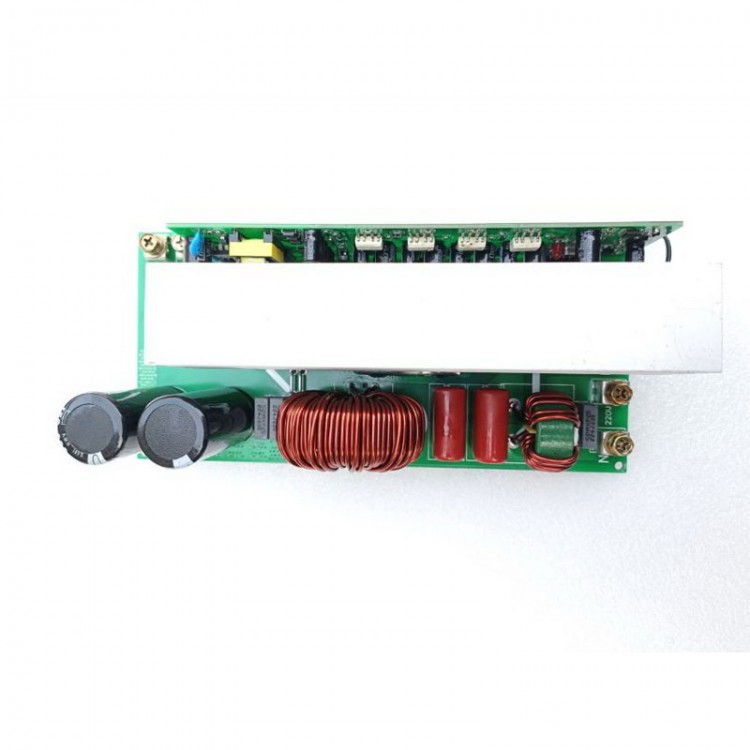

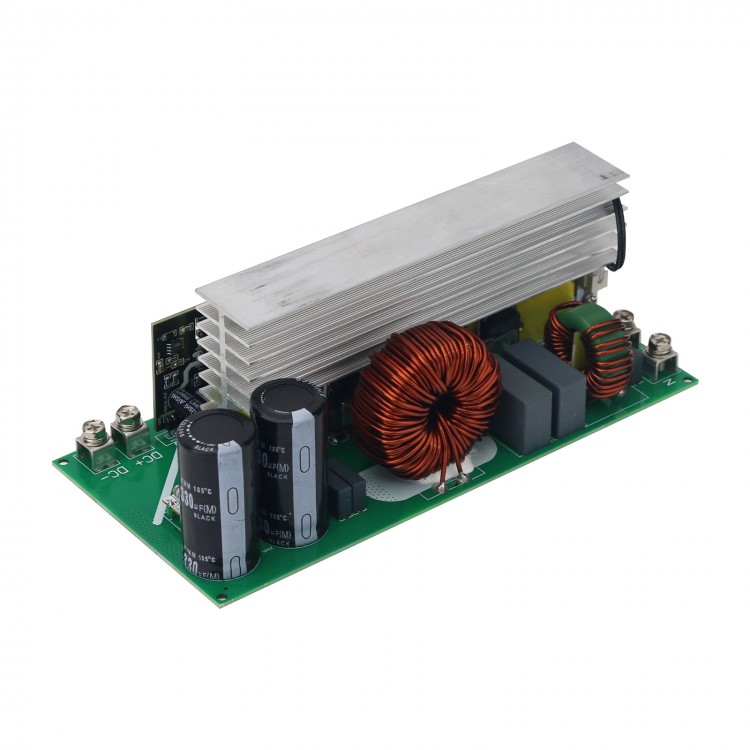

4000W New Energy Charging IGBT High Power Pure Sine Wave Inverter Board Rear Stage Board Stable Driving Board 110V/220V
Description:
- It is a high-power sine wave inverter board. It can be used for solar inverter conversion, modified sine wave inverter to sine wave inverter, high-frequency square wave inverter pre-stage to sine wave inverter, new energy vehicles and RV charging piles, charging and power extraction.
- It can be powered by battery series voltage 320-420V (note: when the input voltage is optimal, the power can reach the maximum. The lower the voltage, the less power). There is no need to connect a separate voltage auxiliary power supply to power it.
- Its driver board is a dedicated IGBT driver board, powered by multiple-way independent power supply. It is designed with negative voltage shutdown. Negative voltage shutdown can make IGBT really complete shutdown, more effective protection of IGBT due to malfunction, greater driving capacity and higher efficiency! The driver board boasts over-current, short-circuit, low-voltage and over-temperature protection. It also has an intelligent temperature control auxiliary fan socket [fan current up to 12V 0.3A]. When loaded with high power, it requires a larger fan to dissipate heat and an additional power supply to power the fan.
- The 4000W board adopts a dedicated IGBT driver board using 4pcs high-power to-274 IGBT. The 5000W board adopts a dedicated IGBT driver board using 4pcs high-power to-3PL IGBT. The 8000W board adopts a dedicated IGBT driver board using 12pcs high-power to-3PL IGBT.
Specification:
- Input voltage: DC320V-450V
- Output voltage: AC110-AC220V (adjustable)
- Output frequency: 50/60HZ (adjustable)
- Output waveform: pure sine wave
- Board size:
4000W full load version: 210 x 100 x 70mm
5000W full load version: 210 x 100 x 70mm
8000W full load version: 235 x 112 x 70mm
Package Included:
- 1 x Sine Wave Inverter Board
