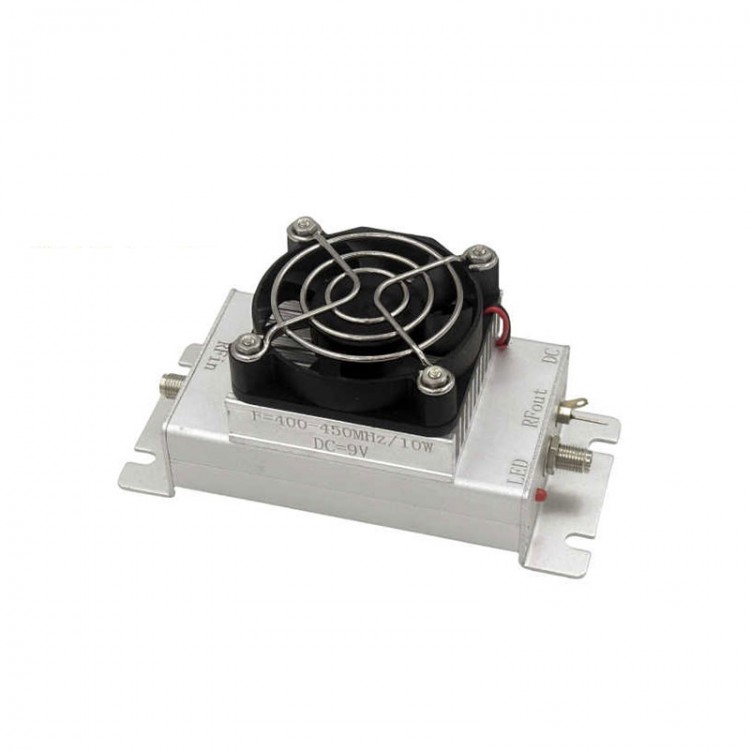

400MHz-450MHz 10W RF Power Amplifier RF Power Amp with 48dB Gain Heat Sink and Cooling Fan
Attention:
- When it is used for transmitting with an antenna, choose an antenna with a VSWR below 2.
- Be sure to connect a load at the output and then connect the amplifier module to a DC power supply.
- No-load work has the potential to damage the module.
- The input terminal (RF in) and the output terminal (RF out) of the module must be connected first. And then connect the module to a DC power supply.
- Be sure to connect the positive and negative electrodes correctly when the module is powered by a DC power supply. Reverse connection is not allowed because the module will be damaged.
Specifications:
- Working frequency: 400MHz-450MHz
- Input and output impedance: 50Ω
- Gain: 48dB
- Maximum input power: 10dBm at 10mW
- Output power: 10W at DC9V
- Power supply voltage: 9V-12V
- Working current: 1.9A (varies with input power and power supply voltage)
- Module connector: SMA female connectors at both ends
- Shell: Sandblasted aluminum shell
- Heat dissipation: Aluminum profile heat sink and normally open fan
- Dimensions: 50mm x 50mm x 110mm/2" x 2" x 4.3" (including heat sink but without the sizes of connectors)
Package Included:
- 1 x RF Power Amplifier
Packaging Details:
- Weight: 0.22kg
