Product Description: It is suitable for interphone coverage system,interphone relay station,433MHZ remote control increasing transmission distance,FSK,GFSK digital radio station transmission,wireless radio direction finder,laser driver.
Parameter:
- Transmitting frequency:400-470MHz,actual 380MHz~480MHz
- Output power:15~20W@13.8V,380MHZ &480MHZ terminals frequency output 10W.
- Input power:17dBm,50mW

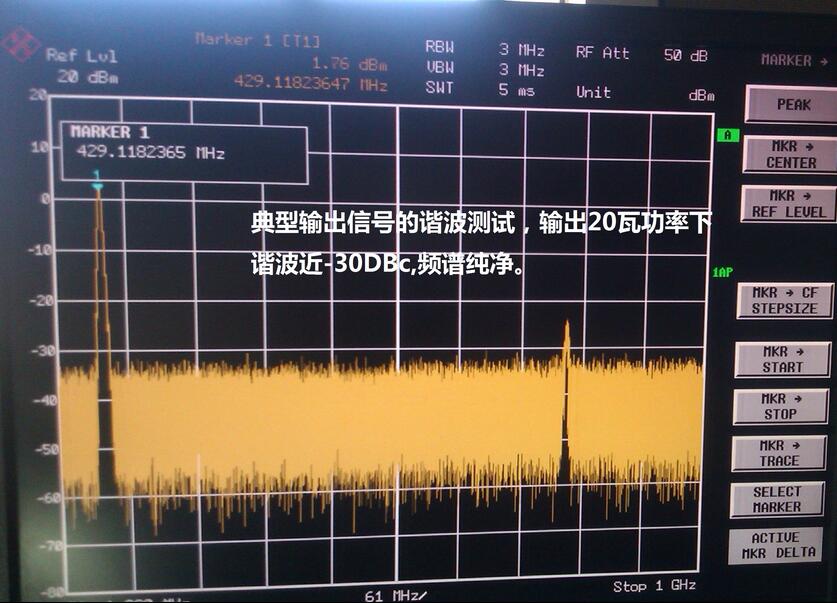

- Output harmonic: typical -27dBc
- Power supply:12-14V DC power,the working current varies with output power.max current:2.5A.
- RF interface & power terminal:RF signal input output SMA female,external thread inner hole,core capacitance power supply.
- Radiator:aluminium alloy shell with radiator.
Connection:

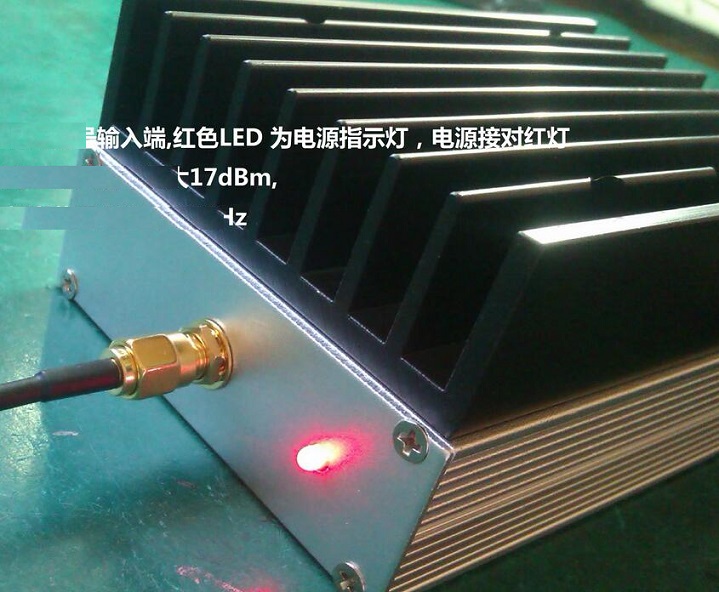

- The RF signal input port,red LED is power indicator.The red LED lights if power supply connects correctly.Input signal the max 17dBm,frequency range 400-470MHz.

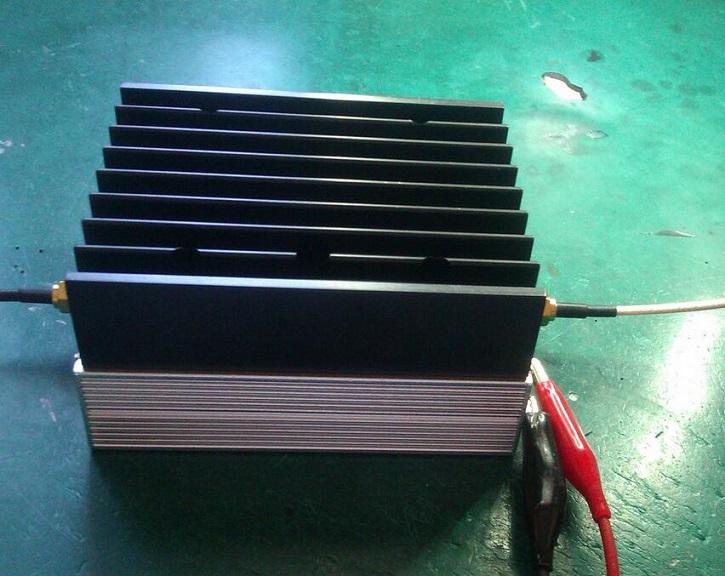

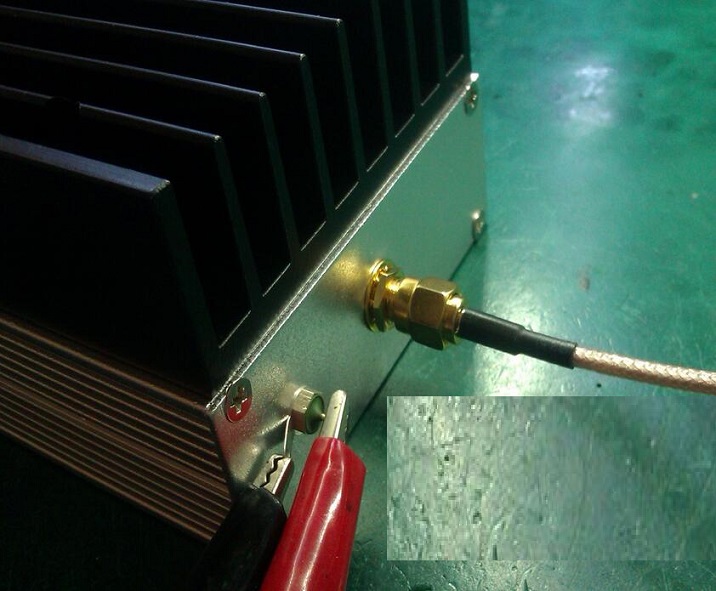

- The RF signal output port,impedance 50ohm,output 15-20W.The red clip(positive pole) connects +12~14V;The black clip is negative pole.
Package List:
- 1 x RF Power Amplifier
