Product Description: Increase signal power and increase launch range.It is suitable for interphone coverage system,a variety of single way digital radio stations and various radio equipment tests,EMC testing.
Parameter:
- Transmitting frequency:400-470MHz
- Input power:50mW,17dBm
- Output power:80W@13.8V
- Signal Connector:signal input SMA female;output terminal M SMA female or SMA female
- Power supply:12-14V DC power,working current:6-7A.
- Power connector:standard M3 core capacitance,center positive pole,shell negative pole,or red black cable.

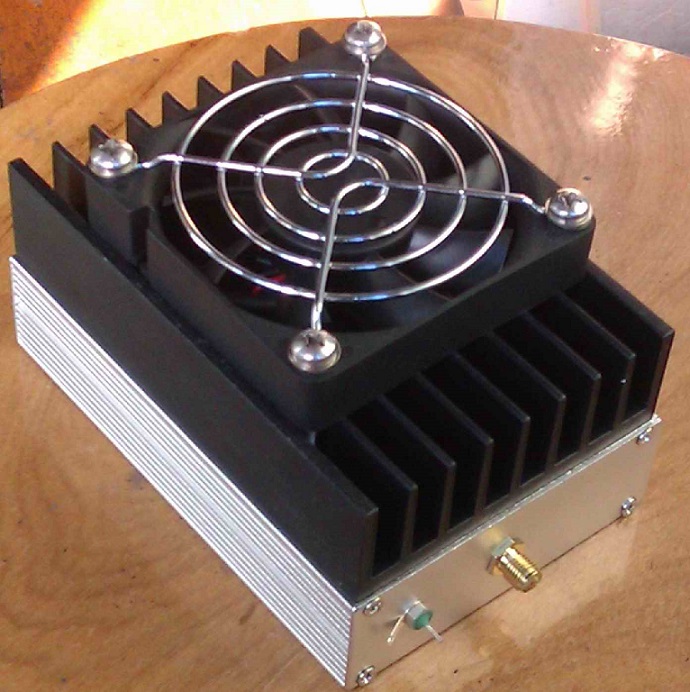

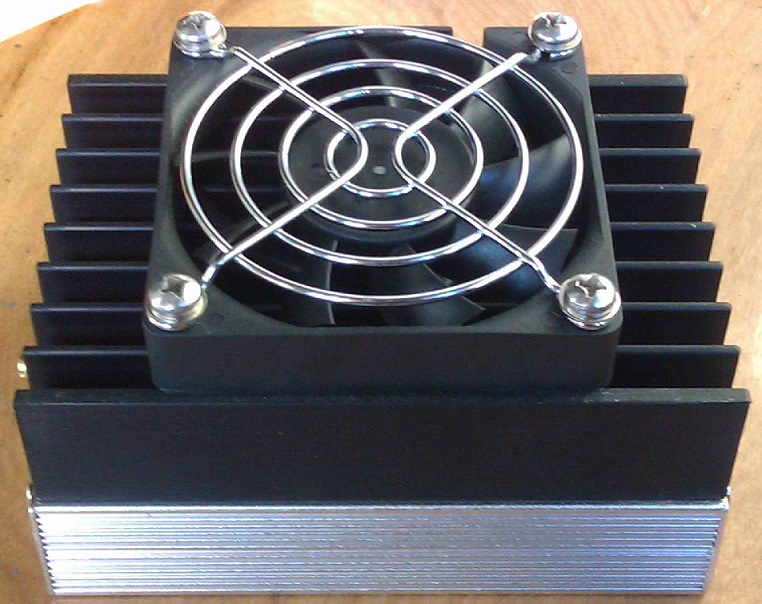

- Cooling mode:radiating metal shell & radiator fan cooling,stable working
- Size:110x75x70mm(LxWxH)(fan include)
Package List:
- 1 x FM Radio Amplifier
