Parameter:
- Transmitting frequency:400-470MHz U section covering the whole period
- Output power:the max 45W,2W input,output 30-35W;5W input,the max output.
- Receiving loss:superior to 1dB,the effect on the receiving sensitivity can be ignored.
- Power supply:12-14V,the higher the power voltage,the larger the transmitting power.The voltage is 13.8V,power is 45W.
- Power current:transmitting 6-7A.When receiving,the amplifier does not consume any current.
- The amplifier supports U segment station & U section working mode in UV dual band(TG-UV2)
- Ham Radio power:suitable for many transmitting power 2-7W radio
- Size:12.5x8x5cm(LxWxH)
Note: When transmitting,the red LED power indicator lights and when receiving,LED light off.

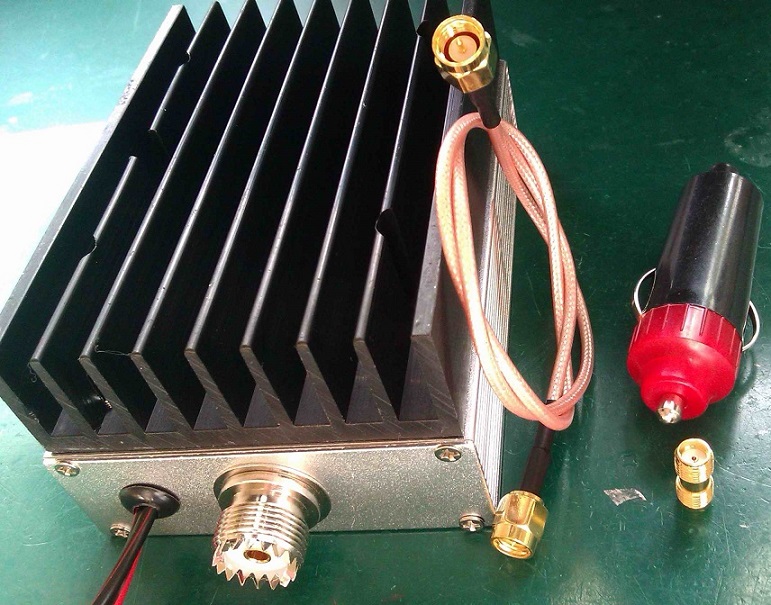

Connection: Connect amplifier SMA female(golden connector) to radio antenna socket with RF cable.The large needle M female(amplifier) connects antenna.The red cable connects power positive pole,black cable connects power negative pole.
Package List:
- 1 x FM Radio Amplifier
