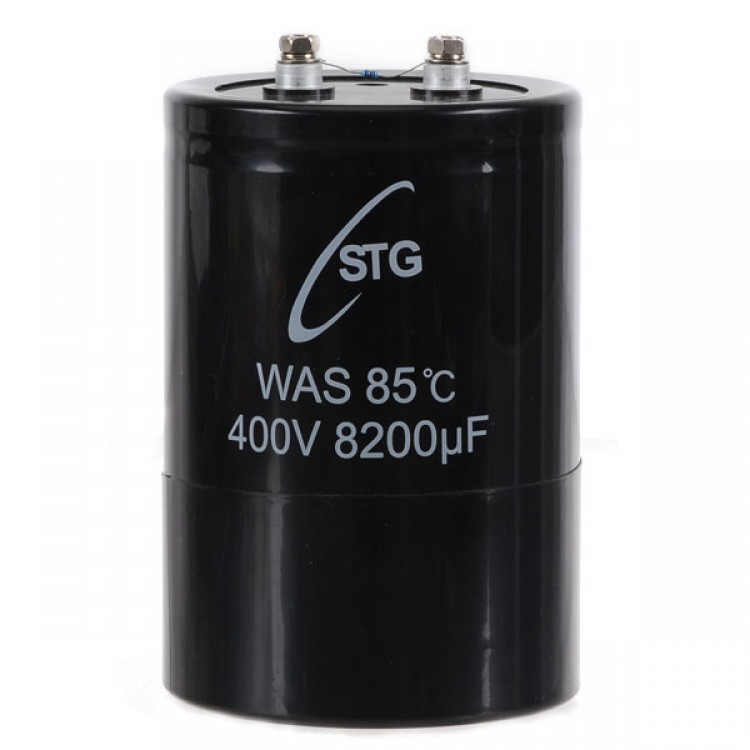

400v 8200uf Aluminum Electrolytic Capacitor 145*90*90mm
Descriptions:
- suitable for long-distance transport
- 400v 8200uf electrolytic capacitor
- 85 centigrade electrolytic capacitor
Specfications:
|
Items |
Characteristics |
|
Operating Temperature(°C) |
-25~85 |
|
Rated Voltage Range (V.DC) |
350~450 |
|
Capacitance Tolerance |
±20%(20°C, 120Hz) |
|
Leakage Current |
I less than 5mA (apply rated voltage for 5 minutes) |
|
I: leakage current(A) C: rated capacitance V: rated voltage |
|
|
Temperature Characteristics |
Electrostatic Capacitance Range: c(-25°C)/C(+20°C) more than 0.7(120Hz) |
|
Endurance |
The following specification shall be satisfied when the rated voltage is applied for 2,000 hours at 85°C |
|
Capacitance change: ±20% of the initial value |
|
|
Dissipation factor(tg Ö): less than 200% of the initial specification value |
|
|
Leakage current: less than initial specification value |
|
|
High-temperature storage |
The following specifications shall be satisfied when the capacitor is stored for 500 hours at 105°C and be cooled down to 20°C and was handled according to the JIS C51024.4 term |
|
Capacitance change rate: ±20% of the initial testing value |
|
|
Dissipation factor(tg Ö): less than initial specification value |
