400W+400W Two Channel Amplifier Board Hifi Audio 800W Power Amp Board with Transistors for Toshiba

400W+400W Two Channel Amplifier Board Hifi Audio 800W Power Amp Board with Transistors for Toshiba

Read before Purchasing:
Due to different production batches of components, the capacitance, capacity and withstand voltage components of this product may vary. Please make sure that you don't mind before purchasing.

Description:

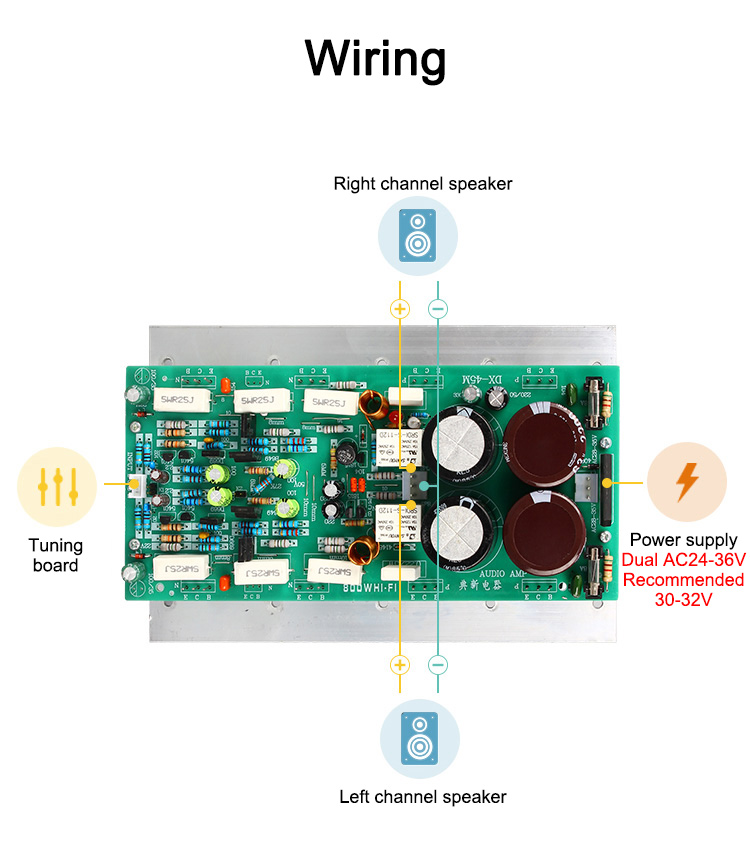

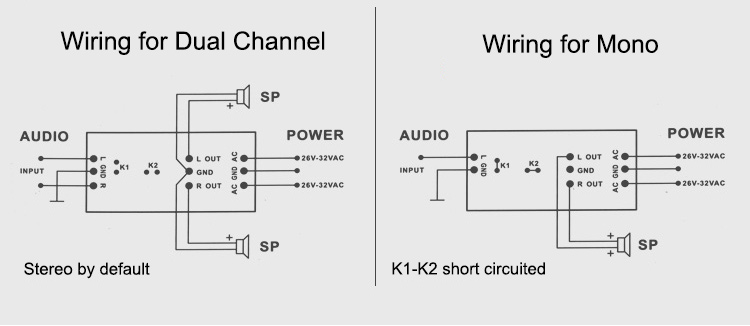

The amplifier board is designed with a thickened heat sink. It adopts a circuit design, with high power, good sound quality and minimal distortion! All parameters of the board have been strictly tested. The two channels only need to be connected according to the wiring diagram below to make sound, without any debugging by users. The board comes with filter rectification and heat sink. Just connect a power transformer and a preamp board.

Features:
- Stage amplifier board: High power amp board with 8pcs transistors for Toshiba.
- High power and good sound quality: all parameters of the amplifier board have been strictly tested. As long as the wiring is accurate, it can make sound, and does not require any debugging by the user.
- Eight original chips for Toshiba: audiophile-grade components ensure high-fidelity sound quality.
- Easy installation: Comes with rectifier filter, speaker delay protection and large heat sink.

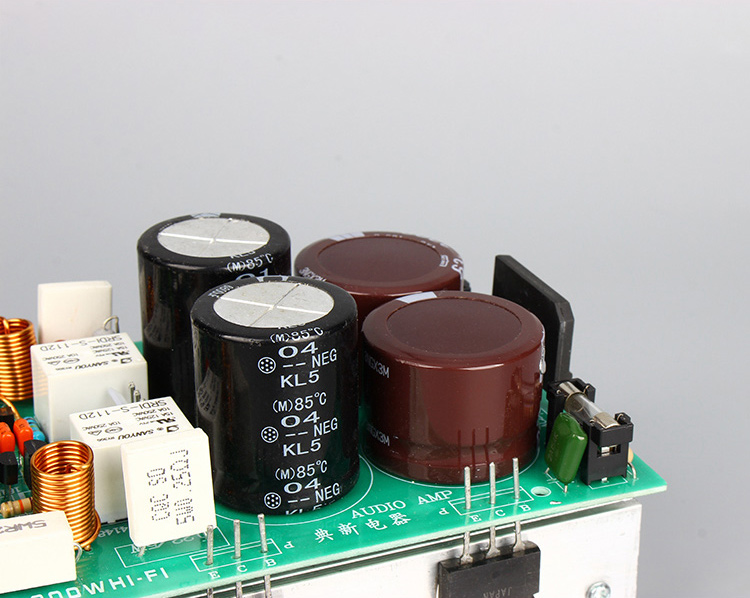

- Four filter capacitors (mono mode): two 63V 6800UF and two 63V 2200UF filter capacitors. Its total capacity reaches 18000UF, ensuring stable working performance.

Specifications:
- Working voltage: dual AC24-36V
- Recommended voltage: dual 30V or dual 32V
- Channel type: stereo dual-channel and mono
- Mono output: 800W
- Two-channel output: 400W+400W
- Impedance: 4Ω, 8Ω and 16Ω
- Weight: 0.9kg/2lb

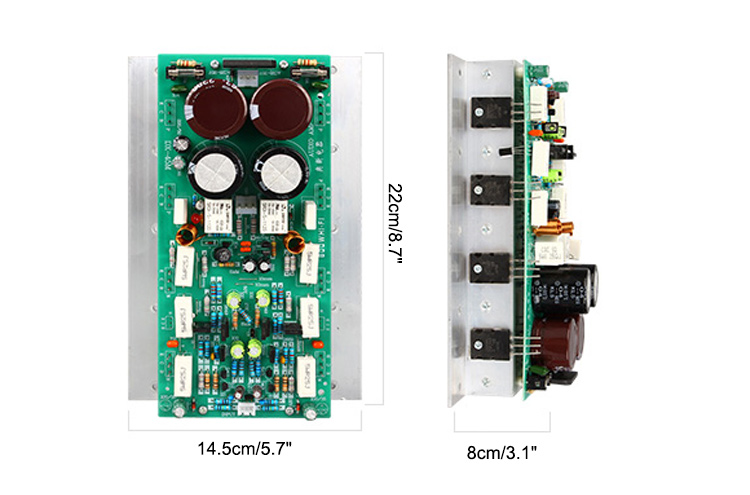

- Size: 22 x 14.5 x 8cm/8.7 x 5.7 x 3.1"

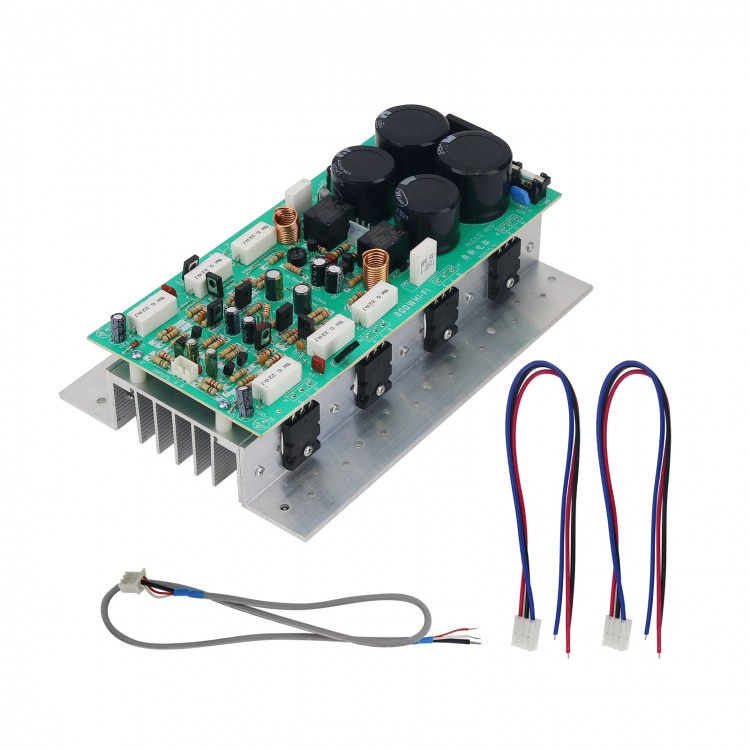

Package Included:
- 1 x Power Amplifier Board
- 2 x Cables
- 1 x Audio Cable
