400W Charger 4CH Full Protocol Fast Charging Module SW3518 Buck Module w/ 1.54" Screen for QC3.0 PD

400W Charger 4CH Full Protocol Fast Charging Module SW3518 Buck Module w/ 1.54" Screen for QC3.0 PD

Read before Purchasing:
* This product is a step-down fast charging module. If you need 20V to charge a laptop, you need a 24V power supply. If you normally use an output of less than 20V, you can use other low-voltage power supplies. And we recommend using 24V all the time, as this also does not change in cost.
* This product supports a maximum output of 400W, provided that your power supply has enough power (the product does not have a power supply by default). But in actual use, few buyers need such a high-power output, so we recommend that a power supply that does not need that much power, and users can use a 100-200W 24V power supply.

Features:

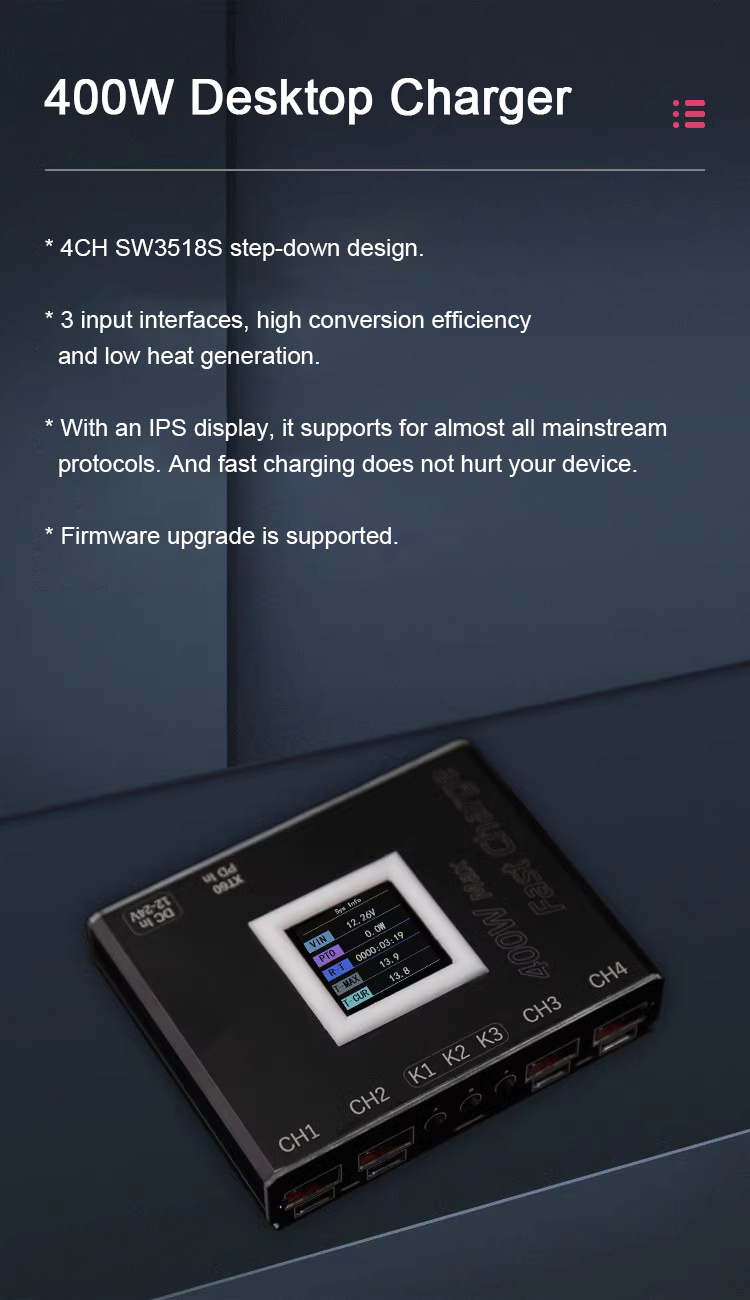

400W Full Protocol Desktop Charger
* 4CH SW3518S step-down design
* Three input interfaces, high conversion efficiency and low heat generation
* With an IPS display, it supports for almost all mainstream protocols. And fast charging does not hurt your device
* Firmware upgrade is supported

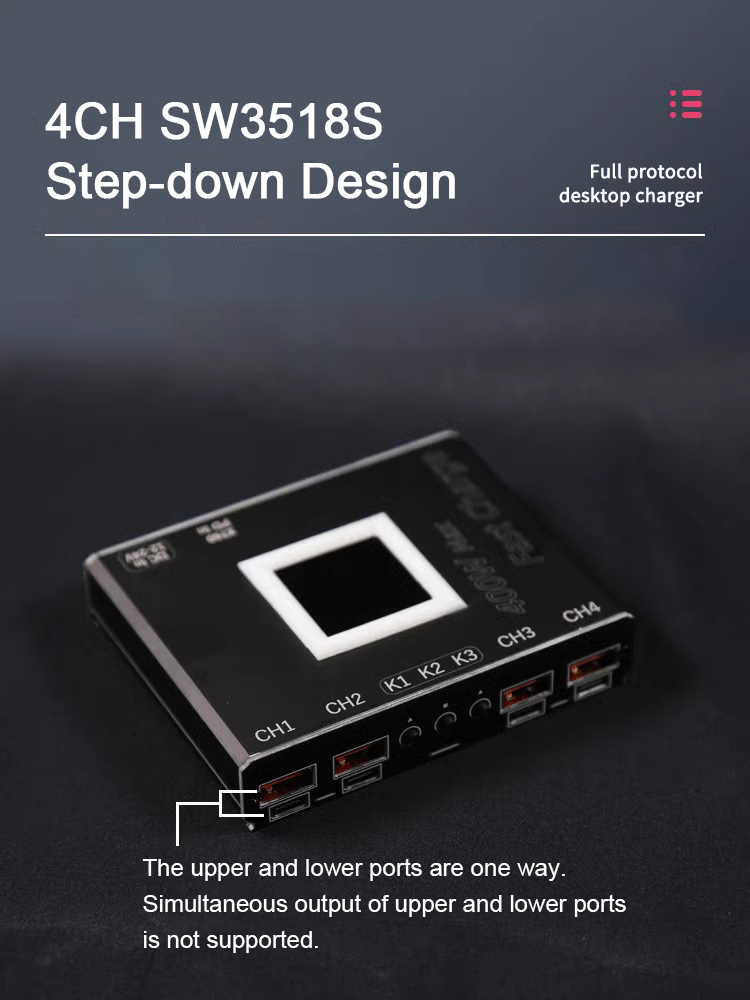

4CH SW3518S Step-down Design
* When there is 24V input, the module can output 5-20V. Each channel supports a fast charging output of up to 20V 5A.
* The no-load heating of the product is low and the conversion efficiency is high.

Main Control

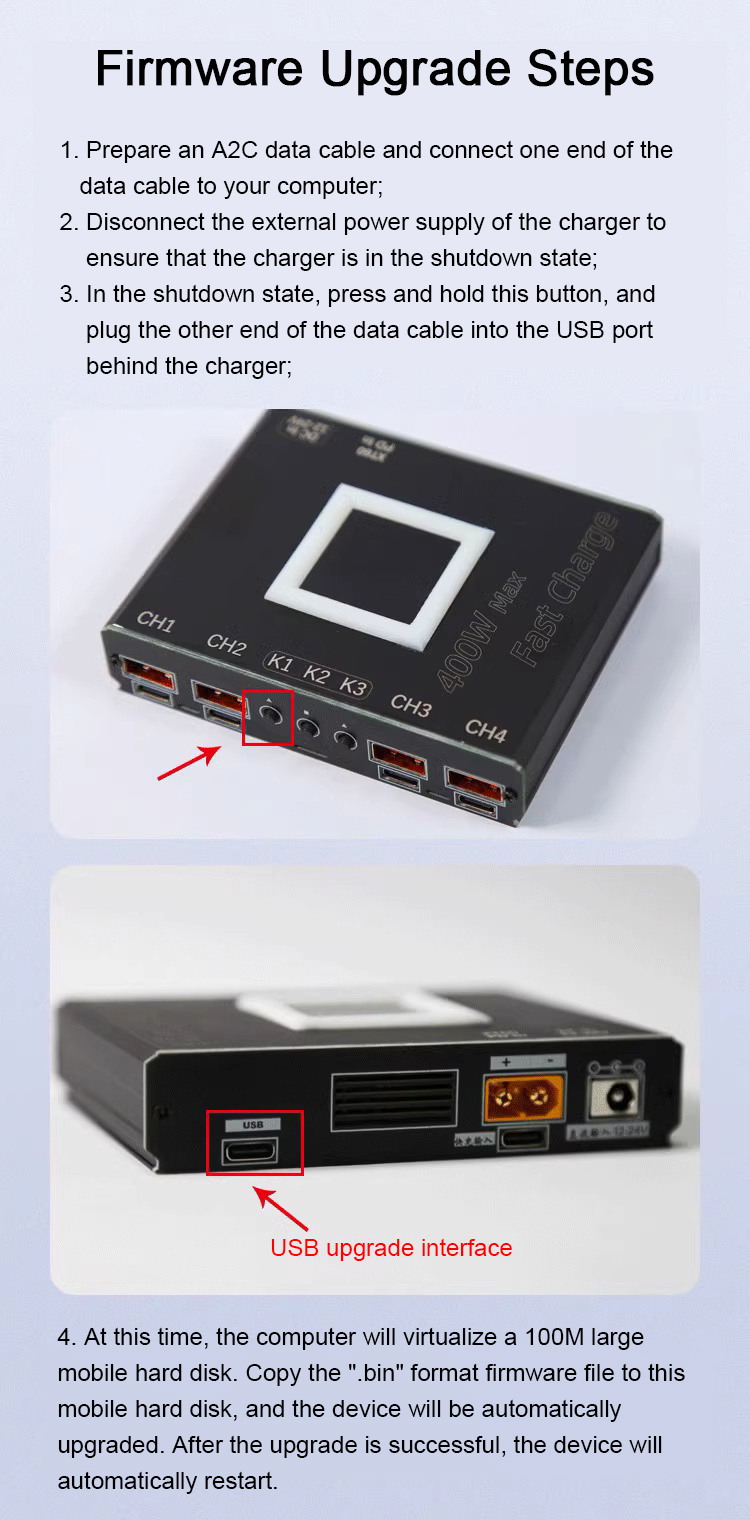

* The main control part adopts AT32F415CBT7 single-chip microcomputer, which boasts high frequency, stable performance, fast refresh rate of display interface. And it will not crash for a long time. The firmware can be upgraded later by connecting a computer via a type-c cable.

Multiple Protections
* Temperature protection, short circuit protection, input over-voltage protection, input over-current protection, output over-current protection, and output over-voltage protection. Fast charging and stable performance. Supports multiple-channel simultaneous charging.

1.54" IPS Screen

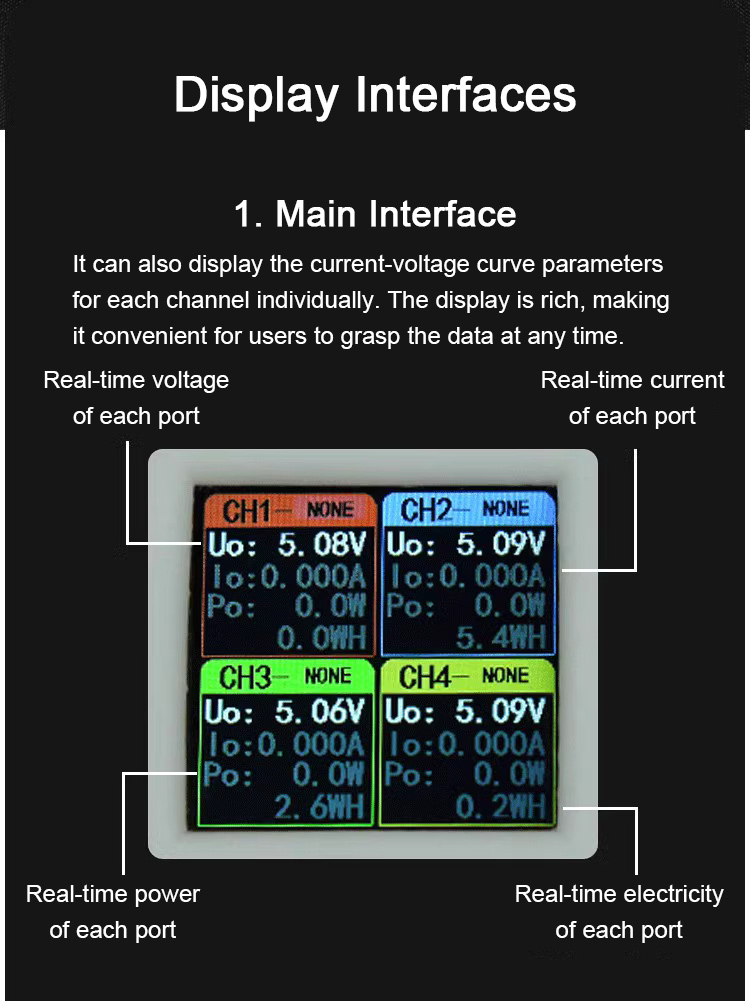

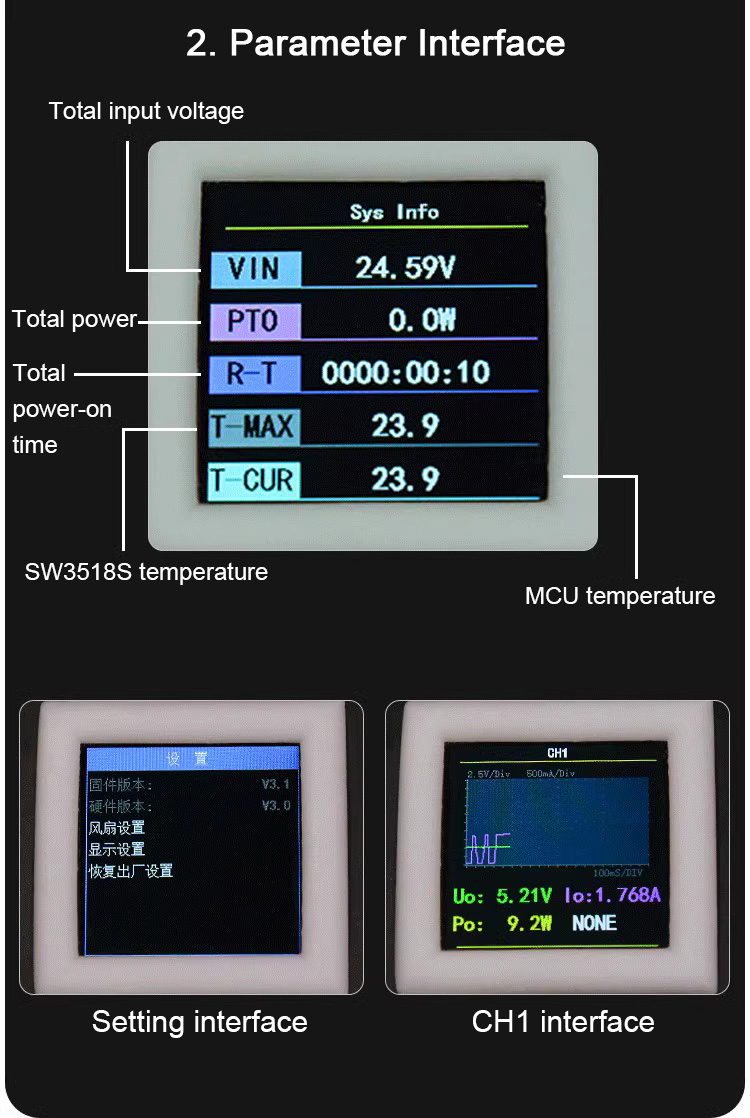

* The 1.54" IPS display makes it easy to observe the whole charging process. The home page can display the output real-time data of each channel.

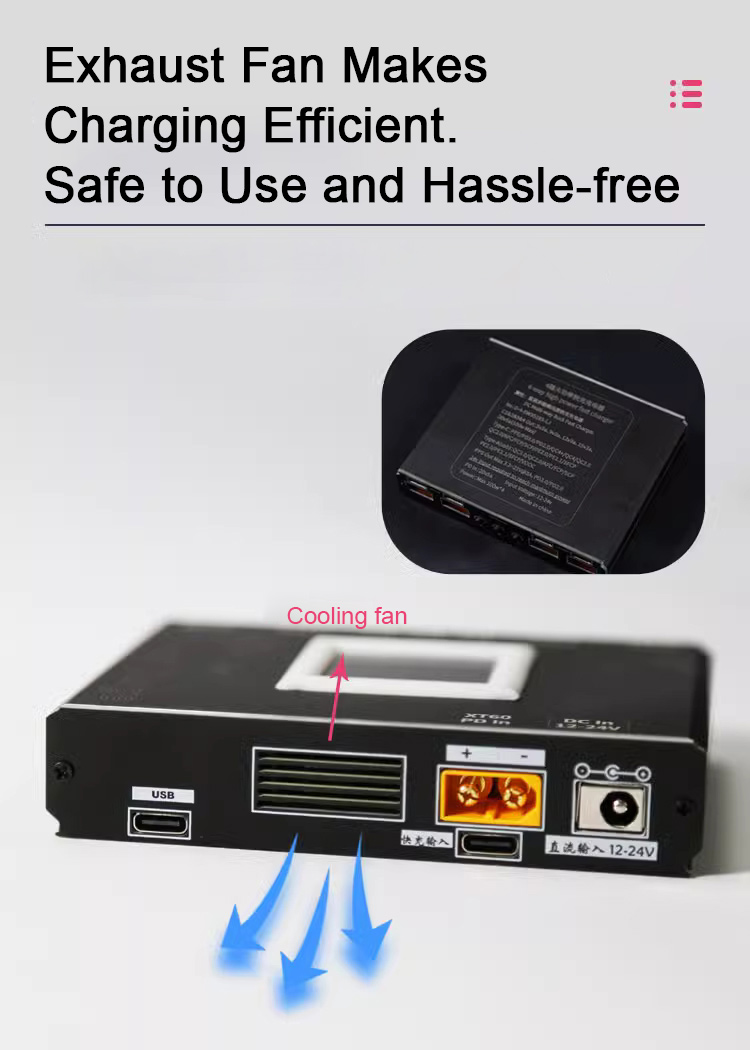

Exhaust Fan Makes Charging Efficient. Safe to Use and Hassle-free
* A built-in exhaust fan effectively dissipates heat, making it safe to use.
* The fan noise is extremely low, and the noise is within 20 decibels. The fan is quiet when it works.

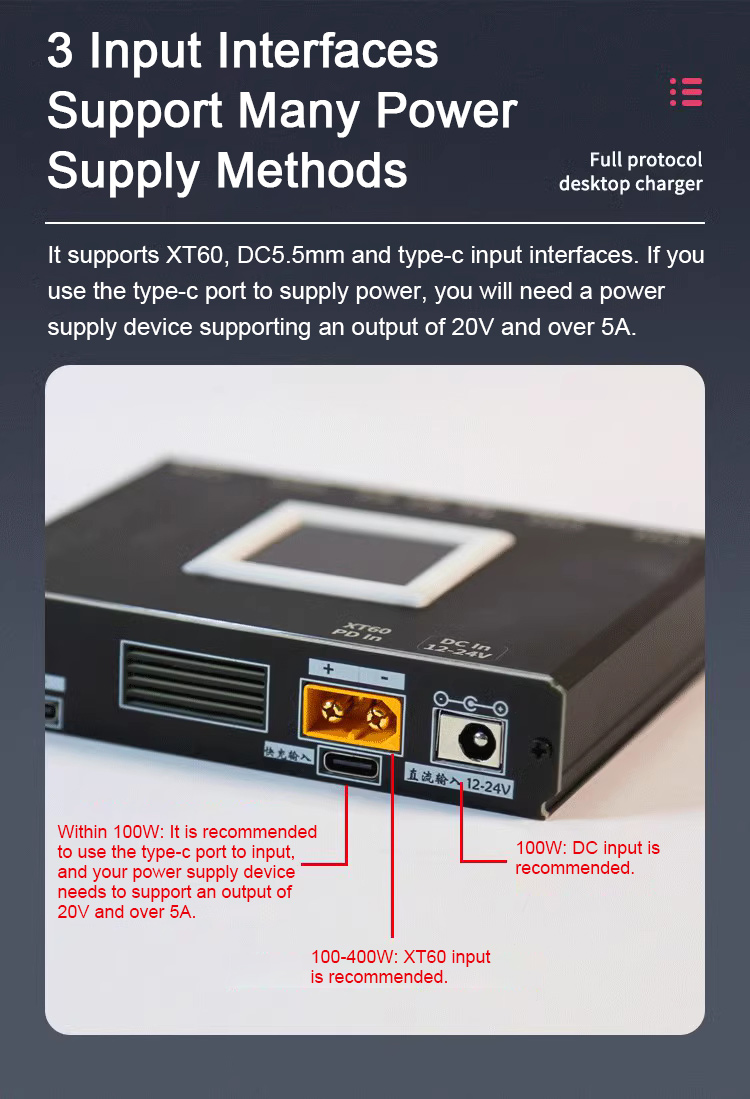

3 Input Interfaces Support Many Power Supply Methods
* The fast charging module supports XT60, DC5.5mm and type-c input interfaces. If you use the type-c port to supply power, you will need a power supply device supporting an output of 20V and over 5A.
* Within 100W: It is recommended to use the type-c port to input, and your power supply device needs to support an output of 20V and over 5A.
* 100-400W: XT60 input is recommended.
* 100W: DC input is recommended.

Supports Many Fast Charging Protocols
* The fast charging protocol of this product basically covers all types of electronic products on the market. However, there are a few points to note. If a 100W module is plugged into your mobile phone, it does not mean that the charging power is 100W. The specific power is determined by the fast charging protocol or the power of your power supply. Some manufacturers' equipment will detect whether the charging equipment is original. And if it is not the original chip or charger, the highest power cannot be reached. At the same time, the data cable and fast charging cable used by the device are also very important. For example, the data cable that does not support e-mark will naturally not be able to get the maximum power.

Small Size and Big Energy
* It is smaller than a mobile phone. Compact size makes it portable.

Specifications:
* Product name: 400W full protocol desktop charger
* Power supply: 12-24V DC
* Max power: 400W
* Number of output ports: 4 type-c and 4 USB ports
* Screen size: 1.54 inches
* Support PD input: Yes

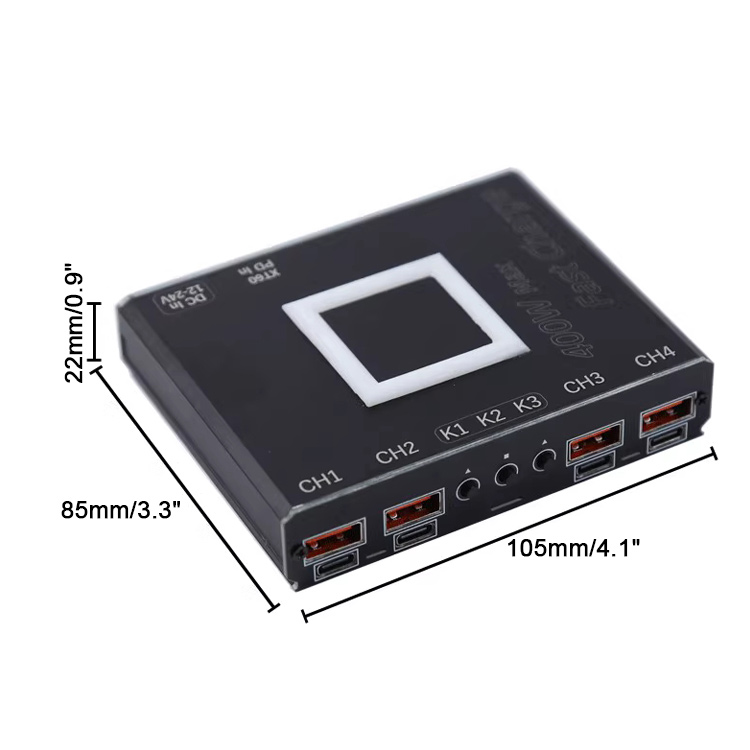

* Dimensions: 105mm x 85mm x 22mm / 4.1" x 3.3" x 0.9"
* Weight of main unit: 175g/0.4lb
* Multi-channel fast charging at the same time: 4 channels
* Features: small size; with a display; intuitive parameters; electricity statistics

Package Included:
* 1 x Fast Charging Module

Packaging Details:
* Weight: 0.4kg
