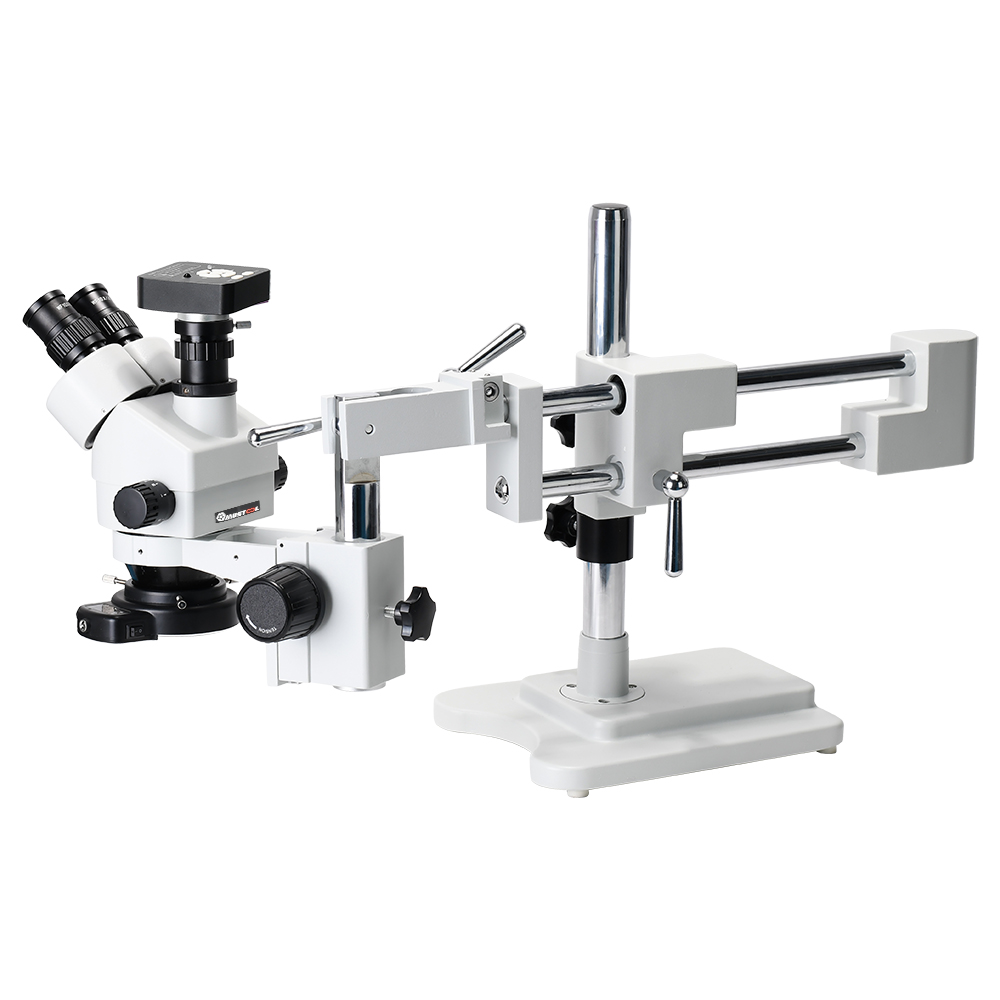

41MP 3.5X 90X Simul-Focal Double Boom Stand Trinocular Stereo Zoom HDMI-compatible USB Microscope Camera 2K 144 LED Light

41MP 3.5X 90X Simul-Focal Double Boom Stand Trinocular Stereo Zoom HDMI-compatible USB Microscope Camera 2K 144 LED Light

Features:
- Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
- Especially suitable for observing the surface micro-structure of large objects.
- Using highquality materials, strong and durable, has a long service life.
- HD camera with 41 megapixel CMOS sensor 1/2.3 inch, with HDMI-compatible USB port.
- Strict quality control and quality assurance, high safety factor, can be used with peace of mind.

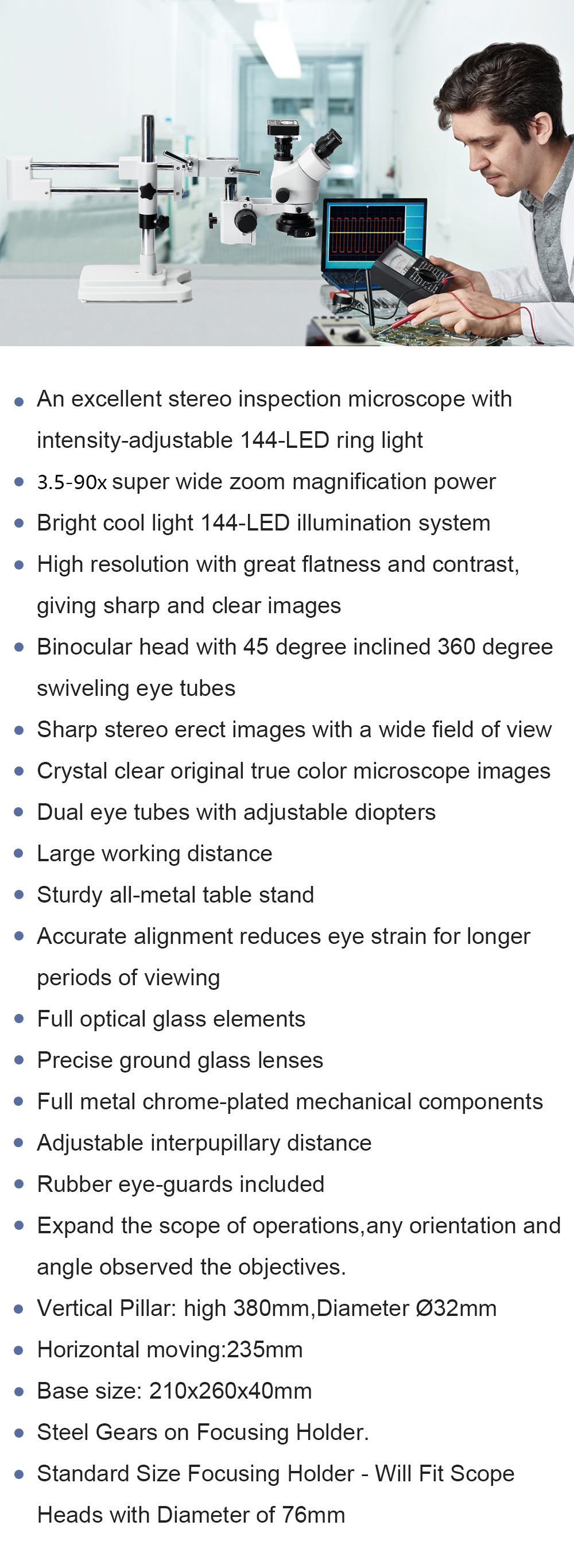

- An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
- 3.5x-90x super wide zoom magnification power
- Bright cool light 144-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included
- Expand the scope of operations,any orientation and angle observed the objectives.
- Vertical Pillar: height 380mm, Diameter 32mm
- Horizontal moving: 235mm
- Base size: 210 x 260 x 40mm
- Steel Gears on Focusing Holder.
- Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm
- 144 bright white LED bulbs
- 100,000 hours of life
- Intense and focused shadow-free illumination
- The brightness of 0-100% adjustable, high brightness
- Variable intensity control
- Power input: 100 - 240V, 50 - 60Hz
- Suit for the diameter of the lens: 30mm-63mm

Specification:

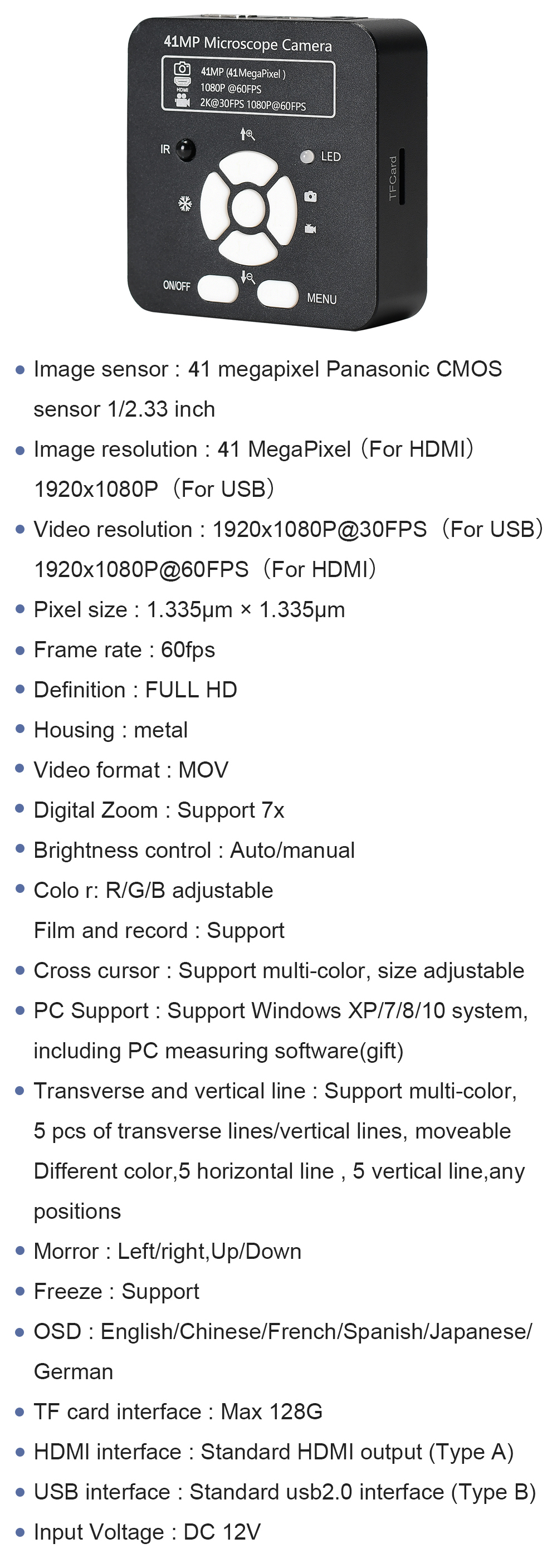

- Item Type: Microscope Camera
- Module: 5130
- Sensor: 41MP CMOS
- Optical Format: 1/2.3 inch
- Pixel Size: 1.335μmx1.335μm
- Interface: HDMI-compatible (Type A). USB (Type B). Small memory card
- HDMI-compatible Image Resolution: 41MP
- Video Resolution: 2K at 30FPS 1080p at 60FPS
- HDMI-compatible Resolution: 1920 x 1080p 60FPS
- HDMI-compatible Scale: Support 4: 3, 16: 9, 16: 10 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German  And other languages.
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port
- Remote Control Battery: 1 x 2302 button battery (delivered without battery)
- Weight: 22kg
- Camera size: 74 x 74 x 35mm
- Packaging size: 160 x 100 x 80mm

Questions Solution:
- LCD no video or flicker:
  1.Check power supply. Check green LED. Press Power Key to light up it.
  2.Check lens cover. Increase the lighting.
- LCD have black bar Image warp:
  1.Change resolution of LCD
  2.Change resolution of camera
- Have dirty spot:
  1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser.

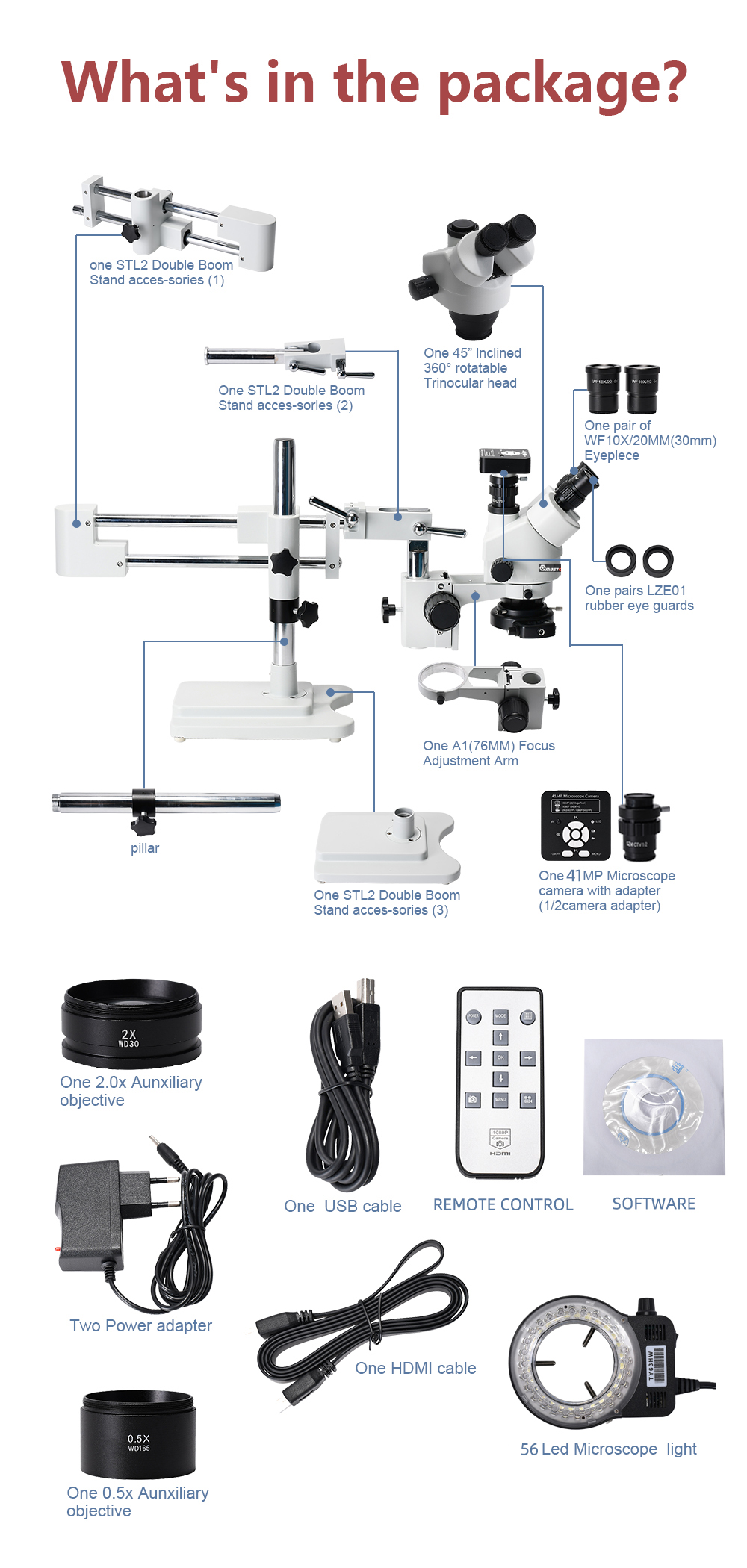

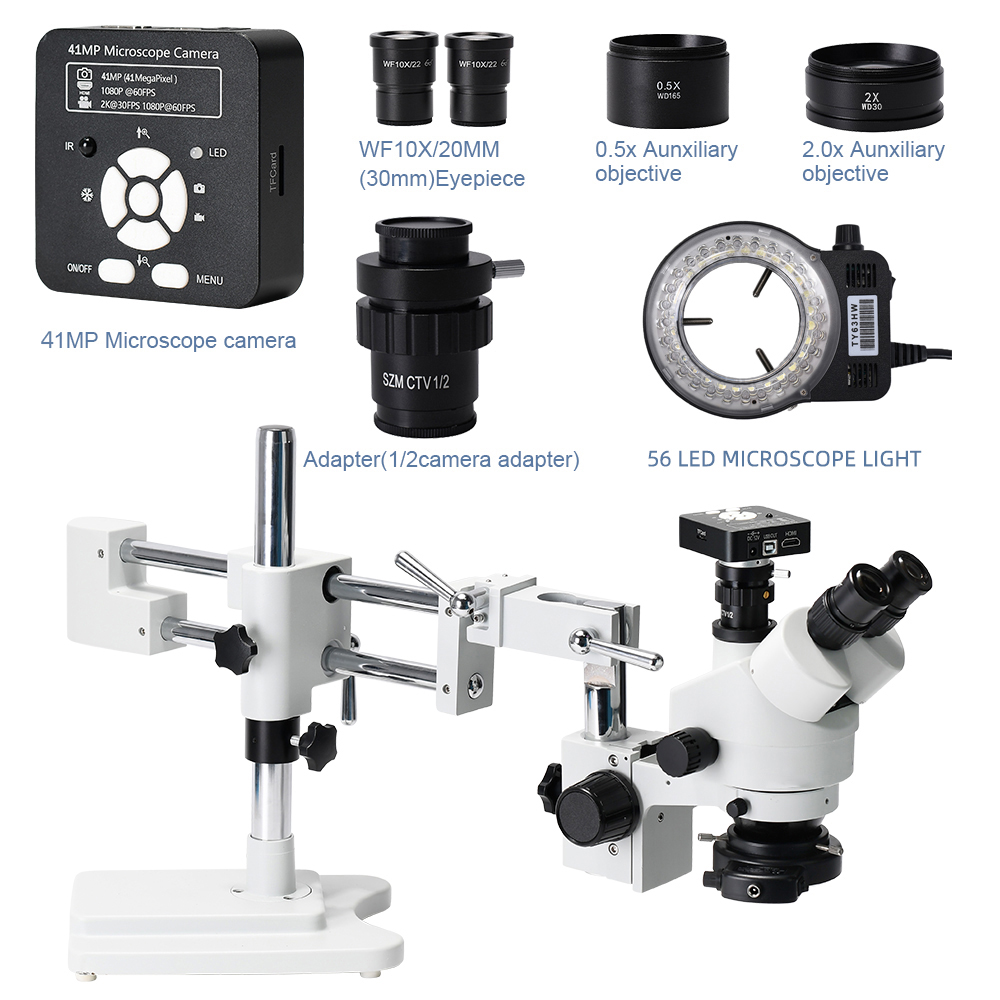

Package Included:

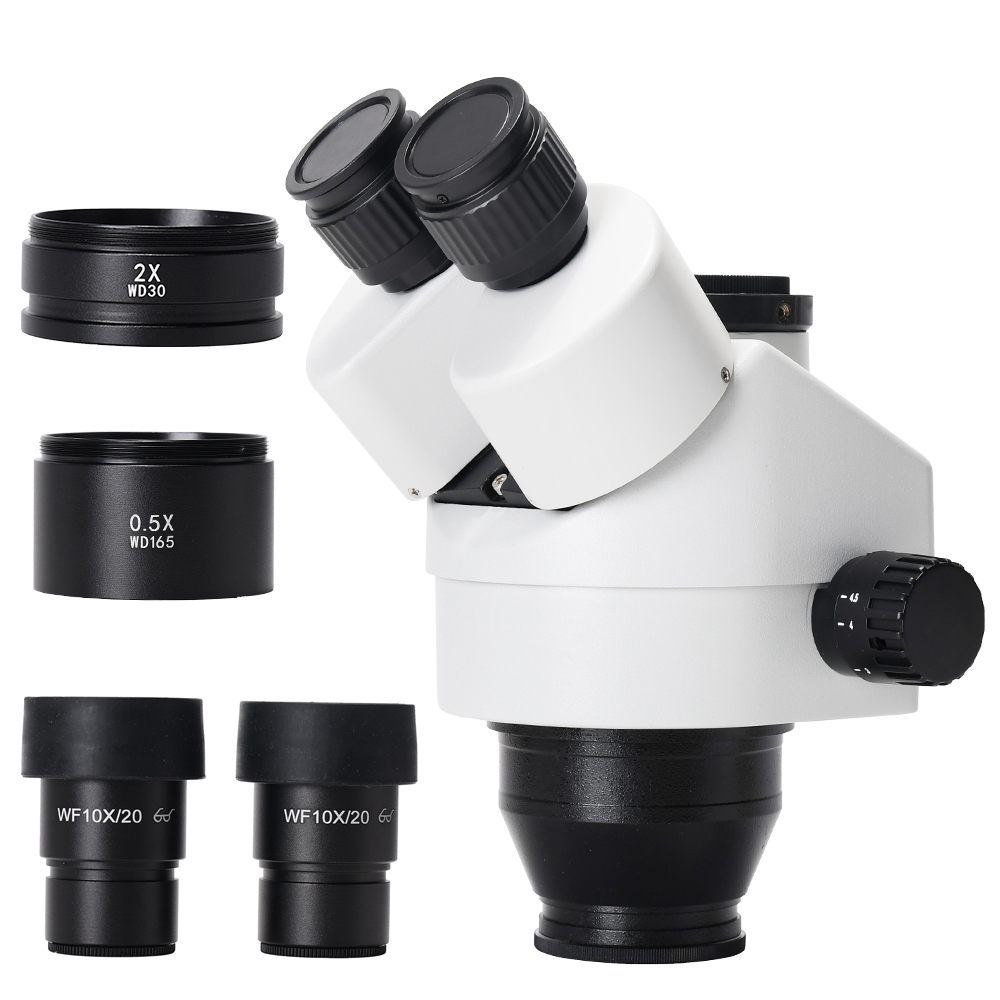

- 1 x Trinocular Stereo Zoom Head
- 1 x Pair of Super Wide-field 10X20MM Eyepieces

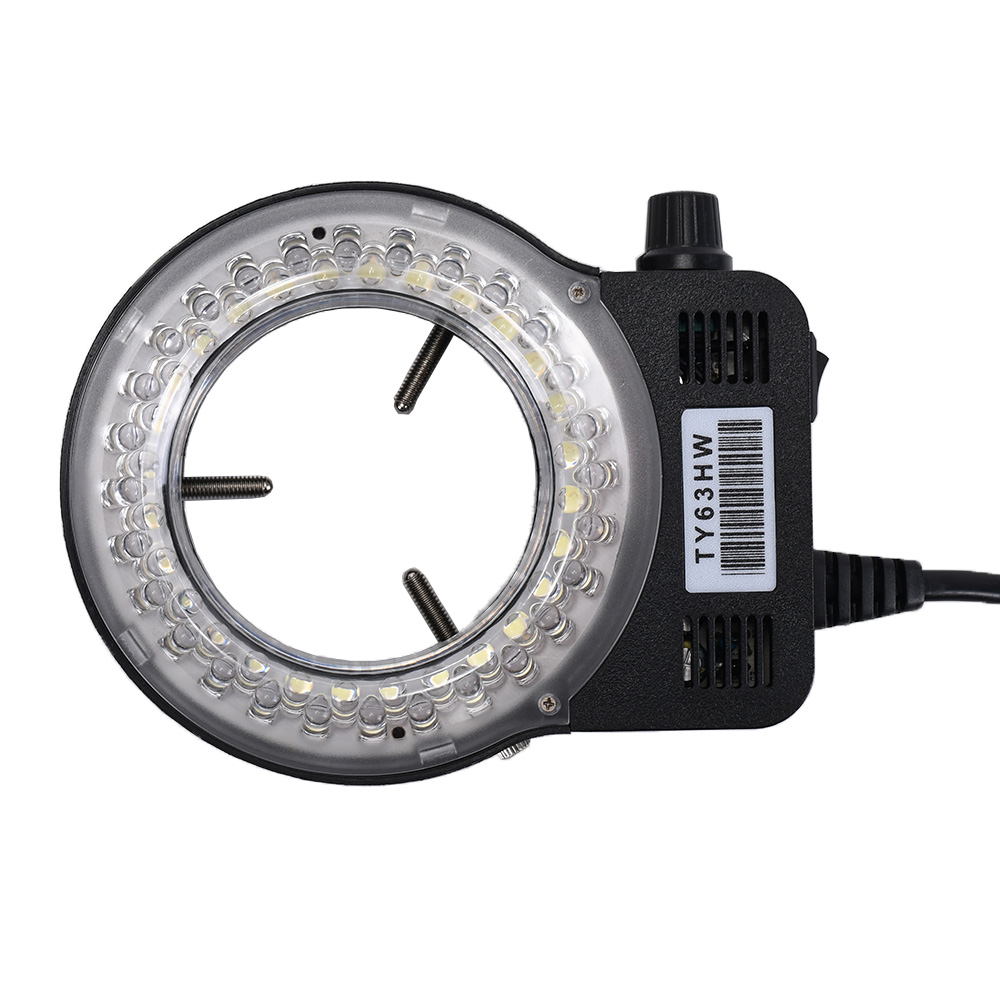

- 1 x 144-LED Ring Light

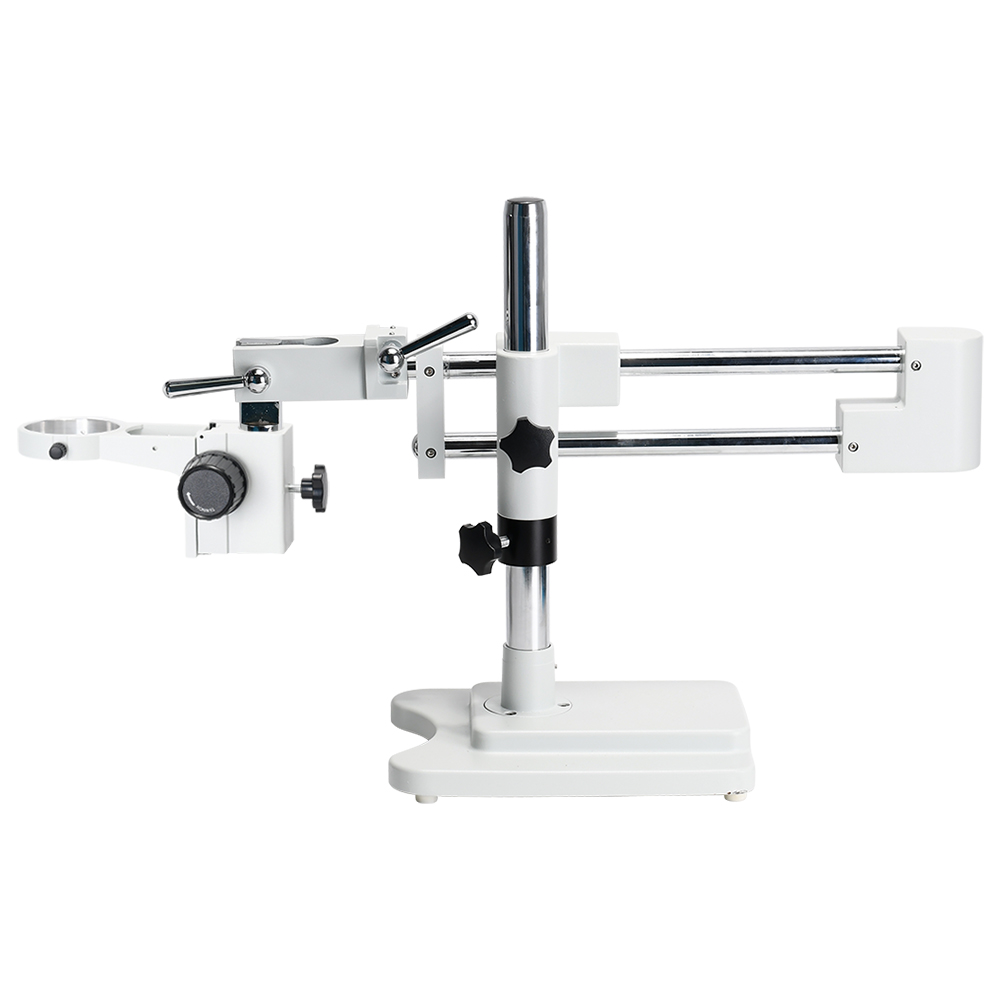

- 1 x Double Boom Microscope Bracket
- 1 x Focusing Rack
- 1 x C-mount Adapter
- 1 x Pair of Eye-Guards
- 1 x Dust Cover
- 1 x Microscope Camera
- 1 x Power Adapter (EU)
- 1 x IR remoter
- 1 x USB Lines
- 1 x HDMI-compatible Lines
- 1 x Paper Manual

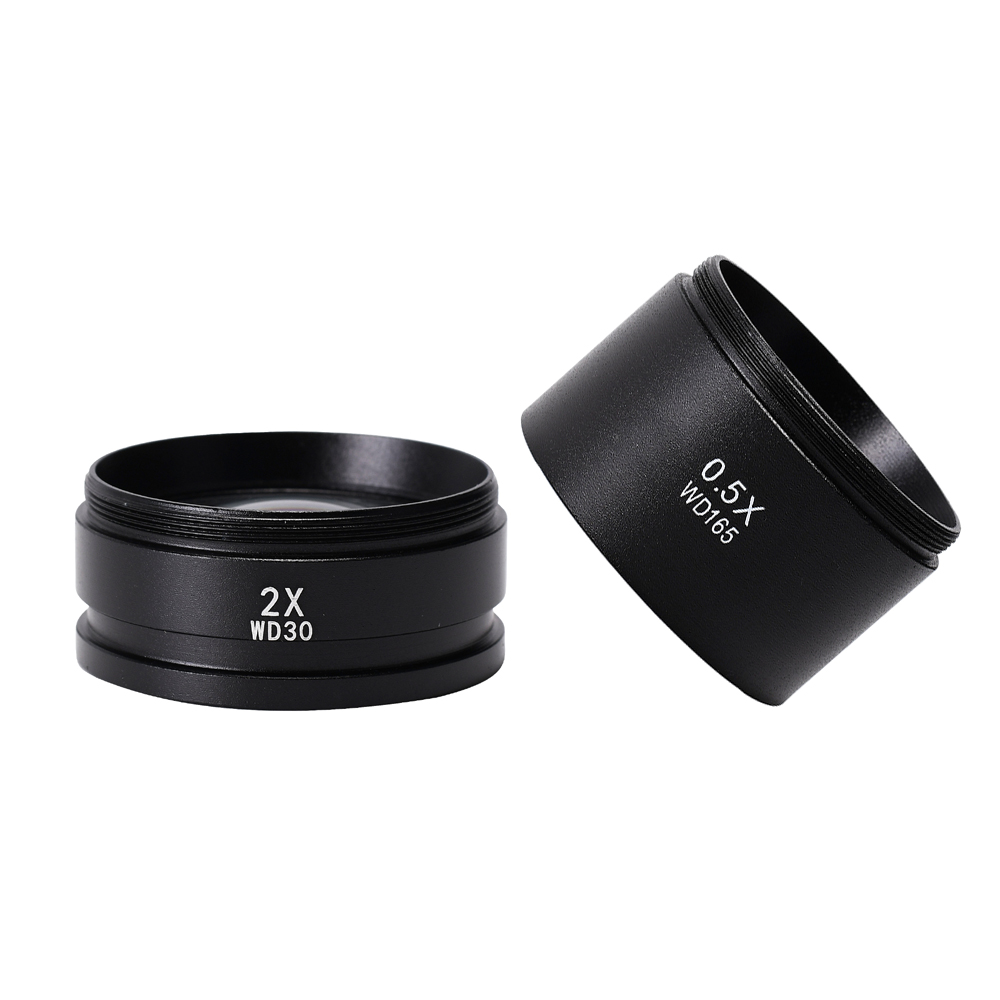

- 1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance 165 mm)
- 1 x 2.0X Microscope Auxiliary Objective Lens (Working Distance 40 mm)

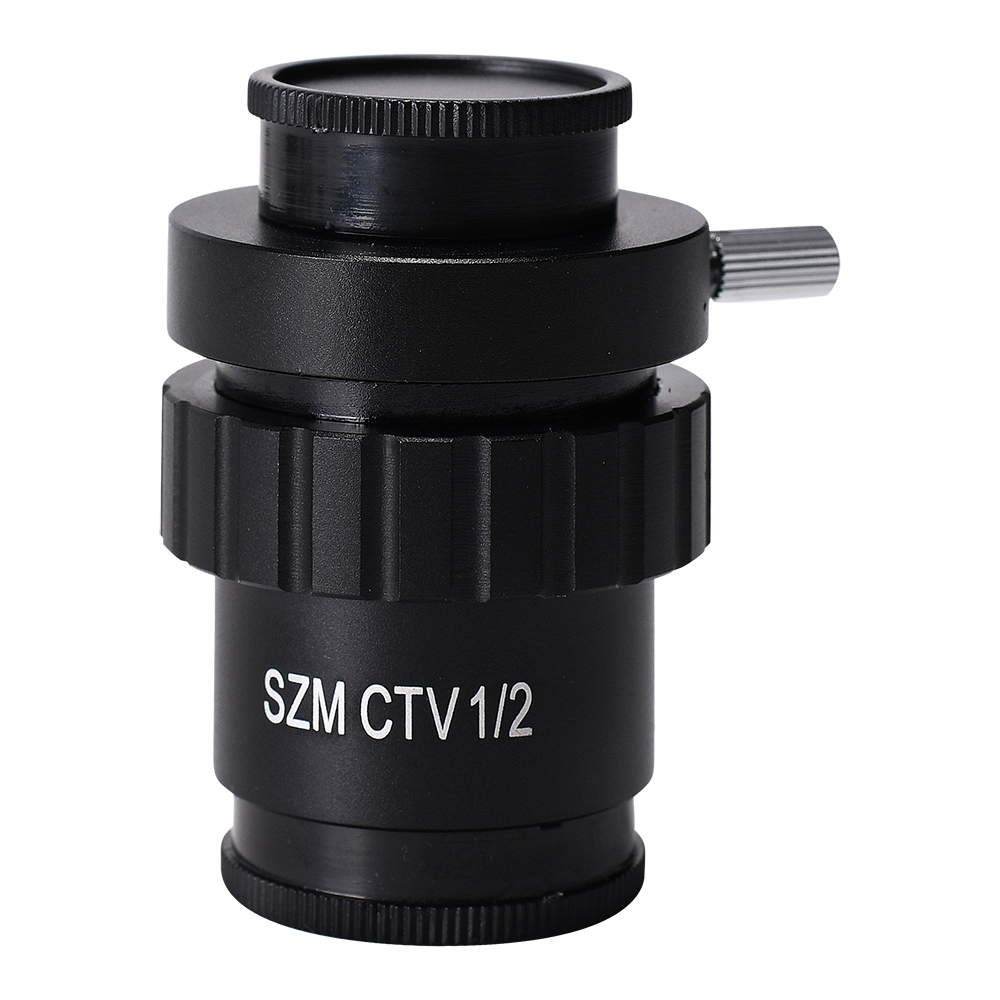

- 1 x SZMCTV 1/2 Lens

Note:
- Battery is not included.
