41MP Digital Video Microscope Camera Kit Industrial Camera 2K At 30FPS For Phone PCB Solder Repair

41MP Digital Video Microscope Camera Kit Industrial Camera 2K At 30FPS For Phone PCB Solder Repair

Specifications:
- Sensor: For Panasonic 41MP CMOS
- Optical format: 1/2.3 inch
- Pixel size: 1.335μm x 1.335μm
- Interface: HDMI (Type A). USB (Type B). TF Card
- HDMI Image resolution: 41MP
- Video record resolution: 2K at 30FPS; 1080p at 60FPS
- HDMI resolution: 1920*1080p 60FPS
- Can output with USB at the same time
- HDMI scale: Support 4:3, 16:9, 16:10 screen
- USB2.0 (Drive free): 1920*1080 at 30FPS; 1280*720at 30FPS; 640*510 at 30FPS
- TF card: MAX. 128GB (not included)
- AWB: WB color correction/Automatic/Manual
- R.G.B value setting independent
- Exposure: Automatic/Manual. AE value can set
- Cross lines: 8lines. Can set color & width & position
- Scale mark lines: 2lines
- Dotted lines: 2lines. Can set color & width & position
- Sharpness Contrast Color gain: Support
- Mono Negative: Support
- Mirror: Horizontal vertical mirror
- Language: English/simplified Chinese
- Digital Zoom: Support
- IR remote control: Support
- Voltage in: DC 12V 55-21mm size
- Power consumption: MAX. 0.15W 12V,0.12A
- Lens interface: C/CS
- Net weight: 180g
- Camera size: 70*70*35mm

Questions & Solutions:
LCD no video or flicker
1. Check power supply. Check red LED be onlight. Press Power Key to Up it.
2. Check lens cover. Increase the lighting.

LCD have black bar Image warp
1. change resolution of LCD
2. change resolution of camera

Have dirty spot
1. Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

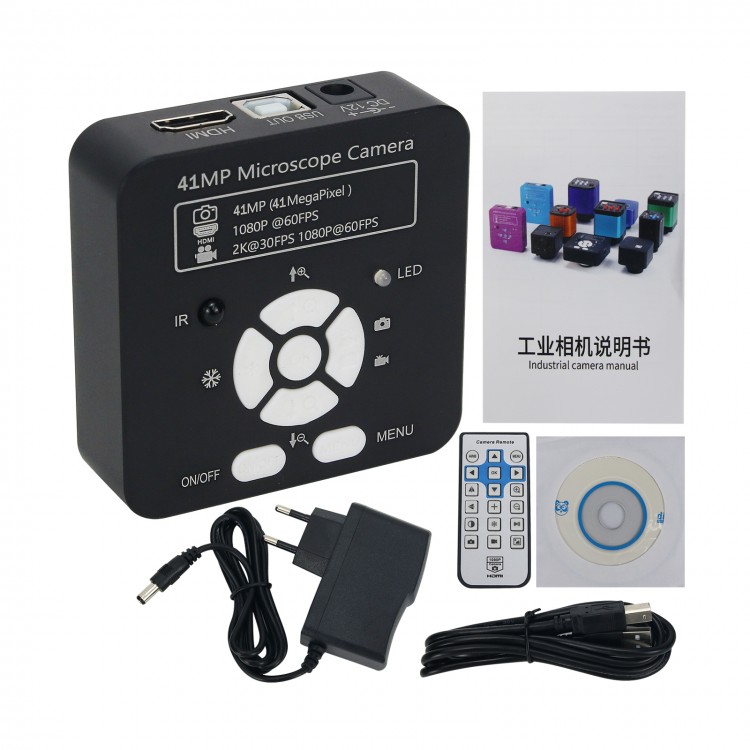

Package Included:
- 1 x 41MP Microscope Camera
- 1 x Power Adapter
- 1 x IR Remote Control
- 2 x Cables
- 1 x Software CD
