41MP Industrial Microscope Camera HDMI Kit 2K with 0.5X C-Mount Adapter 30mm & 30.5mm Adapter Rings

41MP Industrial Microscope Camera HDMI Kit 2K with 0.5X C-Mount Adapter 30mm & 30.5mm Adapter Rings

Features:
- Model: Camera with HDMI USB2.0 two output
- Image format: jpg
- Image resolution: 41MP
- Video format: MP4
- Video recorder: 2K@30 frame, 1080p@60 frame
- USB Video resolution: 2K@30 frame, 1080p@60 frame
- White Balance: Auto
- Light: Auto
- Color: Color
- Negative: Support
- Mirror: Left/right, Up/Down
- Freeze: Support
- OSD: English/Chinese/French/Spanish/Portuguese
- Line: different color, 5 horizontal line, 5 vertical line, any positions

Specifications:
- Image sensor: For 41MP Panasonic sensor 1/2.3 inch
- Effective pixel: 41MP
- Pixel size: 1.43 x 1.43um
- Frame rate: 60fps
- Definition: FULL HD
- Housing: metal
- Lens: CS for test, custom provide
- Video format: MP4
- Encode: H.264 (High Profile)
- Digital magnification: 5 times digital zoom
- Brightness control: Auto/manual
- Color: R/G/B adjustable
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line:
- Support multi-color, 5pcs of transverse lines/vertical lines, moveable
- Different color, 5 horizontal line, 5 vertical line, any positions
- SNR: Support
- TF card interface: Max 64G
- HDMI interface: Standard HDMI output (Type A)
- Lens: C
- USB interface: Standard usb2.0 interface (Type B)
- It build in digital crosshairs and color control, add line in the pictures, freeze
- Supply USB2.0, HDMI HD video, Two output ports
- We sell much to the industry factory, they can see the problems directly in the monitor via the camera.

Description of Adapters:
- Material: Metal
- C-mount threads: 32TPI-UN-2A
- Built-in 0.5X reduction lens
 - This 0.5X C-mount adapter is for microscope.
 - It can be used in all eyepiece position with 23.2mm or 30mm or 30.5mm.
- Of course, it can be used in photo tube and trinocular tube with 23.2mm or 30mm or 30.5mm.

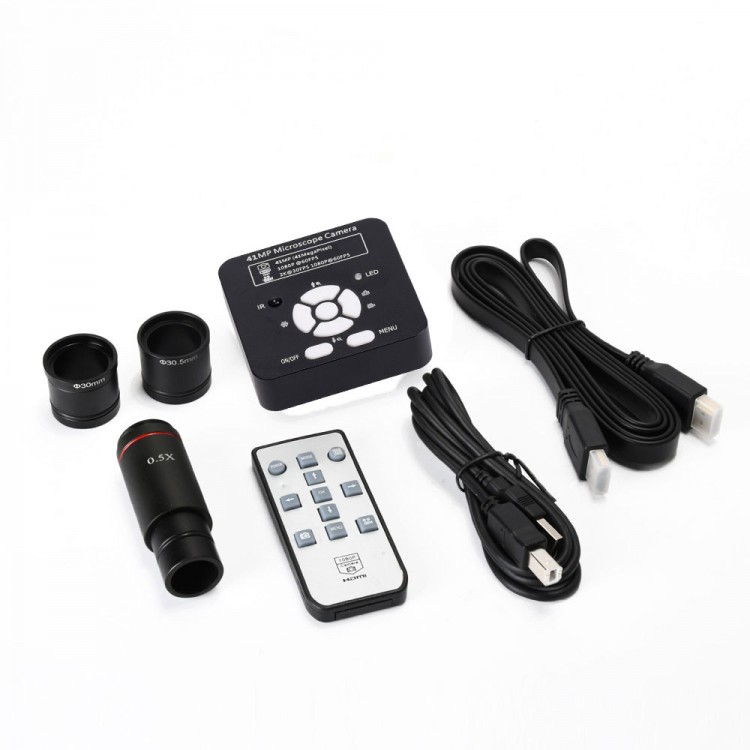

Package Included:
- 1 x Set of Microscope Camera

Note:
- For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.
- For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.
- TF card storage is only for HDMI output. USB output will be stored in PC.
- Microscope stand pictured is not included, for demonstration purposes only.
