41MP USB Industrial Microscope Camera HDMI 1080P + 100X C-Mount Lens Kit For Mobile Phone PCB Repair

41MP USB Industrial Microscope Camera HDMI 1080P + 100X C-Mount Lens Kit For Mobile Phone PCB Repair

Specifications:
Module: HY-4100
Sensor: 41 million pixels sensor for CMOS
Optical format: 1/2.33 inch
Pixel size: 1.335μm x 1.335μm
Interface: HDMI(Type A), USB(Type B), TF Card
Image resolution: 7728*5368 (for TF Card), 1920x1080(for TF Card),
Video record resolution: 2K@30FPS,1080p@60FPS
HDMI Resolution: 1920*1080p 60FPS
HDMI proportion: Support 4:3, 16:9, 16:10 screen
USB2.0(Drive free): 1920*1080@30 1280*720@30 640*480@30
TF card: MAX 64GB
Exposure: Automatic/manual exposure can be set to set the exposure value
Sharpness: 1-24 manual adjustment
Saturation: 1-24 manual adjustment
Contrast: 1-24 manual adjustment
Playback: Support picture playback
Cross line: 8 lines.Can set color and width and position
Zoom mark line: 2 lines.
Dotted line: 2 lines.Can set color and width and position
Black and white: Support
Negative film: Support
Flicker: 50HZ, 60HZ
Horizontal mirroring: manual adjustment
Vertical mirroring: manual adjustment
Language: English/Simplified Chinese
Digital zoom: Support 7X
Playback: Pictures and videos
Voltage in: DC 12V (5-19V),55-21mm size
Power consumption: MAX 0.15W (12V,0.12A)
Lens interface: C/CS

100X Lens Features:
Metal zoom c-mount Lens
Magnification Power by 0.12X - 2X (about 8X - 100X on the display)
Work distance: 55mm-130mm
Visual field: 43mm-120mm
Size: 115mm(L) * 40mm(Dia.)
Weight: 210g

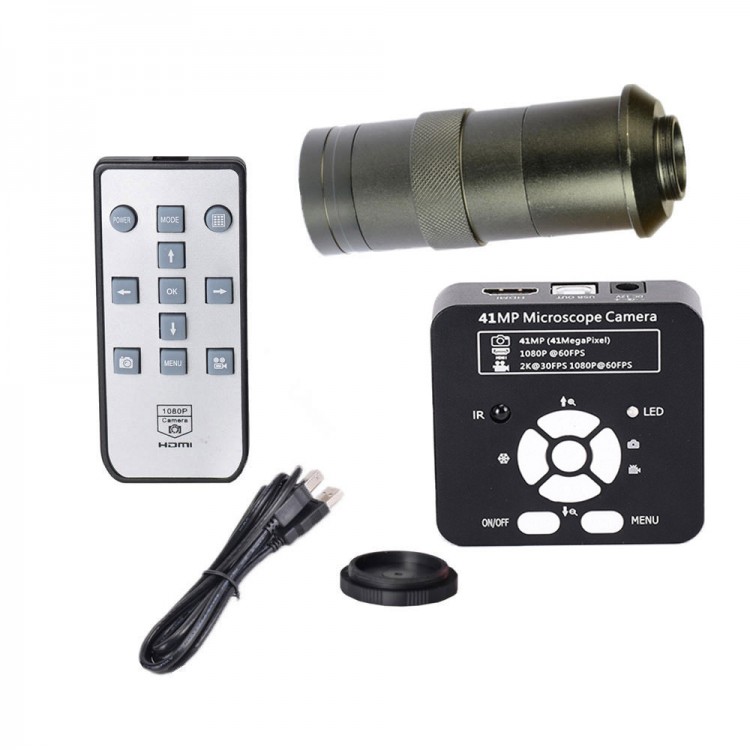

Package Included:
- 1 x Camera
- 1 x Adapter
- 1 x Remote Control
- 1 x USB Cable
- 1 x 100X Lens
