41MP USB Industrial Microscope Camera HDMI 1080P + 180X C-Mount Lens Kit For Mobile Phone PCB Repair

41MP USB Industrial Microscope Camera HDMI 1080P + 180X C-Mount Lens Kit For Mobile Phone PCB Repair

Attention:
1: PC Support: For Windows XP/7/8/10 system
2: When use USB connection, please make sure no TF card in the camera. TF card storage is only for HDMI output. USB output will be storage in PC.
3: When connect the camera with computer, just plug an USB cable is OK ( no need to use the power supply)

Microscope Camera Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 41MP
Video format: MP4 (for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Mirror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color, 5 horizontal line , 5 vertical line, any positions

Specifications:
Image sensor: 41MP sensor 1/2.33 inch for Panasonic CMOS
Effective pixel: 41MP
Pixel size: 1.335μm x 1.335μm
Frame rate: 60fps
Definition: FULL HD
Housing: metal
Lens: C/CS
Video format: MOV
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5pcs of transverse lines/vertical lines, moveable
Different color, 5 horizontal line , 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard USB2.0 interface (Type B)
Input Voltage: DC 12V

180X C-Mount Lens:
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
(180X maximum working distance 12.5CM)

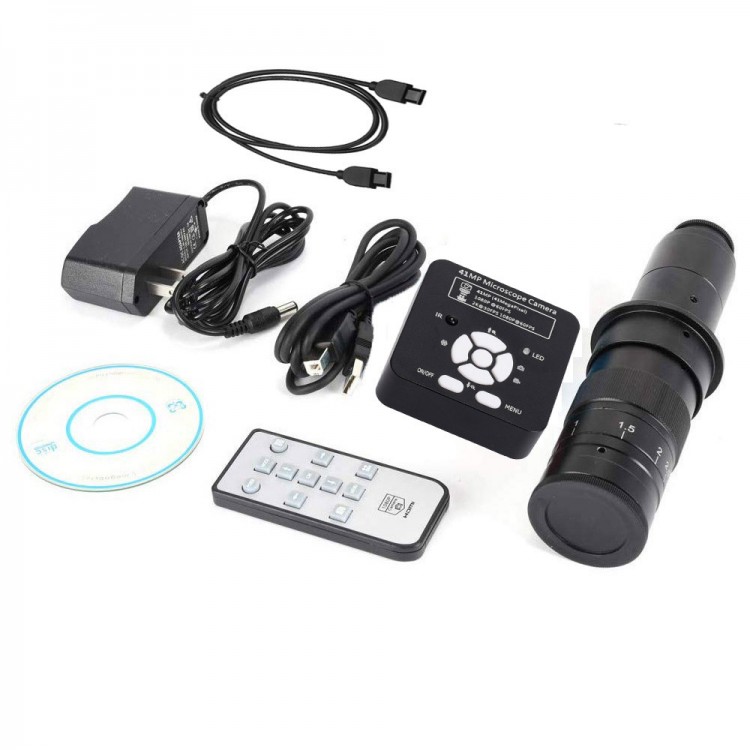

Package Included:
1 x Microscope Camera
1 x Power Adapter
1 x USB Cable
1 x HDMI Cable
1 x Software DISC
1 x Remote Control
1 x 180X Lens

Note: Other items pictured are not included.
