41MP USB Microscope Camera HDMI 1080P 300X C-Mount Lens w/ 56 LED Ring Light For Phone PCB Soldering

41MP USB Microscope Camera HDMI 1080P 300X C-Mount Lens w/ 56 LED Ring Light For Phone PCB Soldering

Note:
1: PC Support: For Windows XP/7/8/10 system
2: For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3: When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4: When connect the camera with computer, just plug the USB line is OK ( no need to use the power supply).

Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 41MP
Video format: MP4(for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Mirror: Left/right, Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color, 5 horizontal line, 5 vertical line, any positions

Specifications:
Image sensor: 41MP sensor 1/2.33 inch for Panasonic CMOS
Effective pixel: 41MP
Pixel size: 1.335μm x 1.335μm
Frame rate: 60fps
Definition: FULL HD
Housing: metal
Lens: C/CS
Video format: MOV
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5pcs of transverse lines/vertical lines, moveable
Different color, 5 horizontal line, 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard USB2.0 interface (Type B)
Input Voltage: DC 12V

300X C-Mount Lens:
Working distance: 95mm
Zoom c-mount Lens
1X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X (about 10 - 300X on the display)
Size: 248mm(L) * 50mm(Dia.)
(300x maximum working distance 11CM)

56 LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
56 bright LED
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60Hz, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-120mm

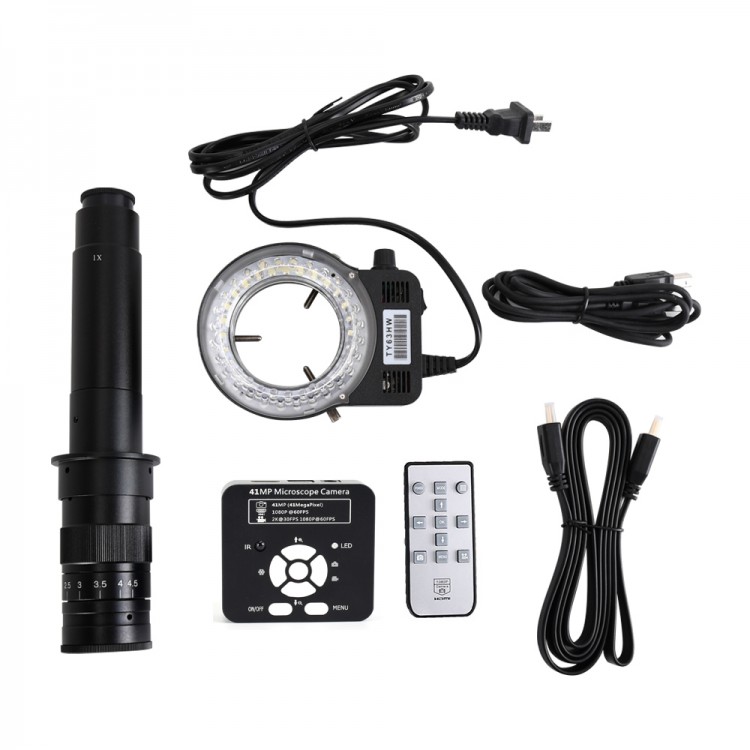

Package Included:
1 x Microscope Camera
1 x Power Supply (AU/EU)
1 x USB Cable
1 x HDMI Cable
1 x Remote Control
1 x C-Mount Lens 300X
1 x 56 LED Adjustable Microscope Ring Light

Attention:
- This is mainly a hdmi camera, if you need it get higher image quality for usb output, please choose the professional usb camera or contact us before place the order so we will give you some suggestion.
- For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.
