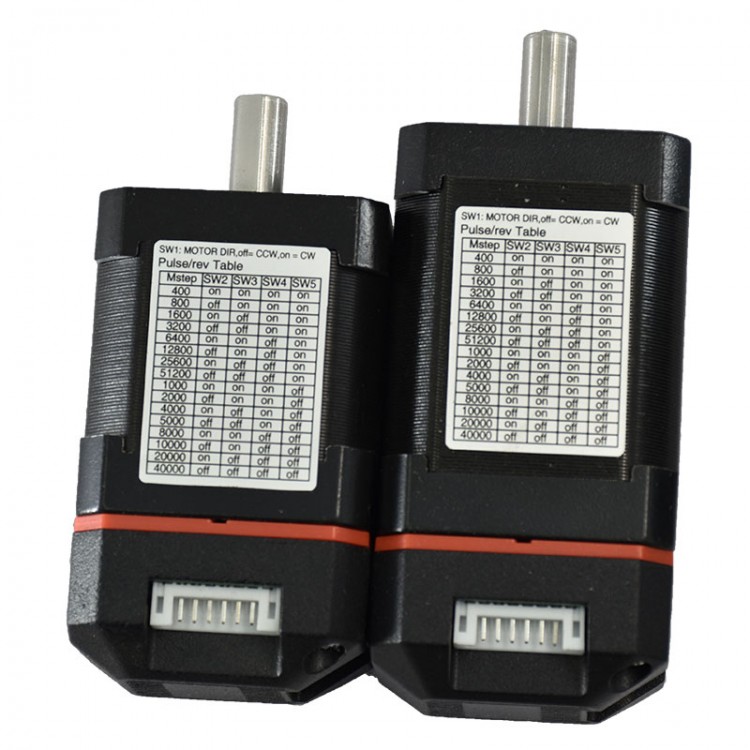

42-60 Closed-loop All in One Stepper Motor Support Current and Voltage Modification
Wiring mode:
AL-: Alarming Signal; connect PLC or controller alarming signal interface
AL+: Alarming Voltage; VDC (+5V and +24V)
EN-: Enable Signal; connected to PLC or controller enable signal terminal
EN+: Enable Voltage; VDC (+5V and +24V)
DR-: Direction Signal; connected to PLC or controller direction signal terminal
DR+: Direction Voltage; VDC (+5V and +24V)
PU-: Pulse Signal; connected to PLC or controller pulse signal terminal
PU+: Pulse Voltage: VDC (+5V and +24V)
VCC: Input power supply (positive pole); VDC (24-60V); recommended common voltage 24V/36V/48V
GND: Input power supply (negative pole); VDC (24-60V); recommended common voltage 24V/36V/48V
Package Included:
- 1 x 42-60 Stepper Motor
