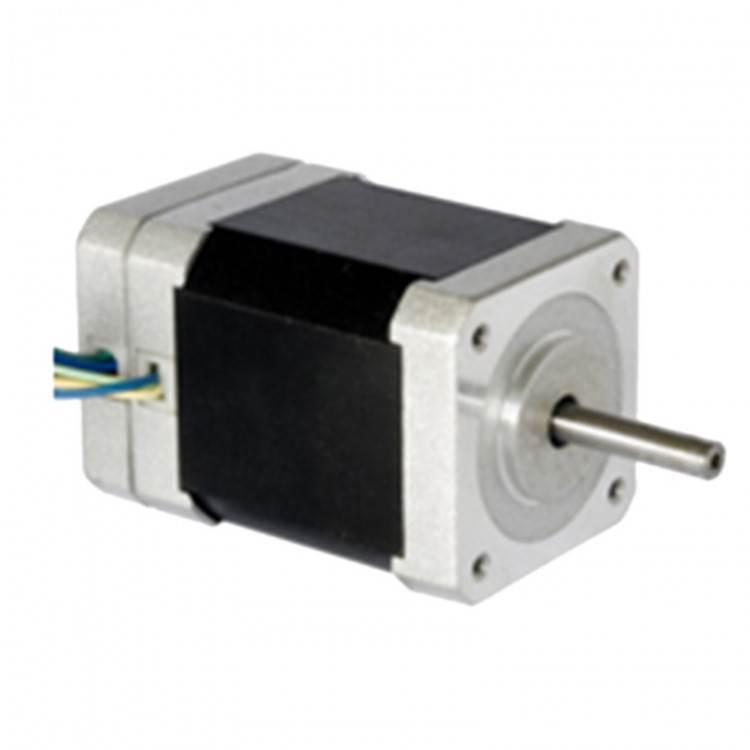

42BLF63-240 DC24V 52W 0.125N-m Brushless Stepper Motor 3-Phase Asynchronous Motor for CNC
General Specifications
- Winding Type: Star
- Hall Effect angle: 120°
- Insulation Class: B
- Ambient Temperature Range: -20~+50 deg C
- Insulation Resistance: 100MΩ Min 500VC DC
- Dielectric Strength: 700V AC 1 minute
Electrical Specifications
- Number of Poles: 8
- Number of Phases: 3
- Nominal voltage VDC: 24
- Rated speed RPM: 4000
- Rated Torque N-m: 0.125
- Rated Current Amps: 3.4
- Output Power Watts: 52
- Peak Torque N-m: 0.38
- Peak Current Amps: 10.2
- Torque constant N-m/A: 0.036
- Back EMF V/k RPM: 3.8
- Rotor inertia g·cm²: 48
- Body Length (L) mm: 63
- Mass kg: 0.48
Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near,
or at, a stalled condition will result in motor damaged.
Package included:
- 1 x Brushless Stepper Motor
