Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $44.76 | $43.84 | $42.47 | $40.65 | Contact US |

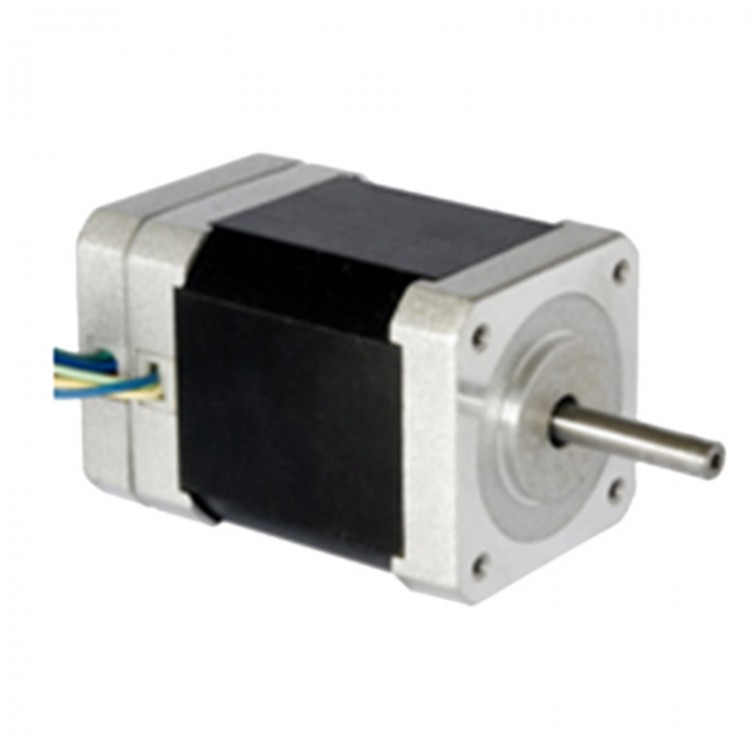

42BLF79-240 DC24V 78W 0.188N-m Brushless Stepper Motor 3-Phase Asynchronous Motor for CNC
General Specifications
- Winding Type: Star
- Hall Effect angle: 120°
- Insulation Class: B
- Ambient Temperature Range: -20~+50 deg C
- Insulation Resistance: 100MΩ Min 500VC DC
- Dielectric Strength: 700V AC 1 minute
Electrical Specifications
- Number of Poles: 8
- Number of Phases: 3
- Nominal voltage VDC: 24
- Rated speed RPM: 4000
- Rated Torque N-m: 0.188
- Rated Current Amps: 5.7
- Output Power Watts: 78
- Peak Torque N-m: 0.75
- Peak Current Amps: 18
- Torque constant N-m/A: 0.036
- Back EMF V/k RPM: 3.8
- Rotor inertia g·cm²: 72
- Body Length (L) mm: 79
- Mass kg: 0.63
Caution 1: Peak (Stall) Torque is provided for the purpose of performance calculations only. Operate near,
or at, a stalled condition will result in motor damaged.
Package included:
- 1 x Brushless Stepper Motor
