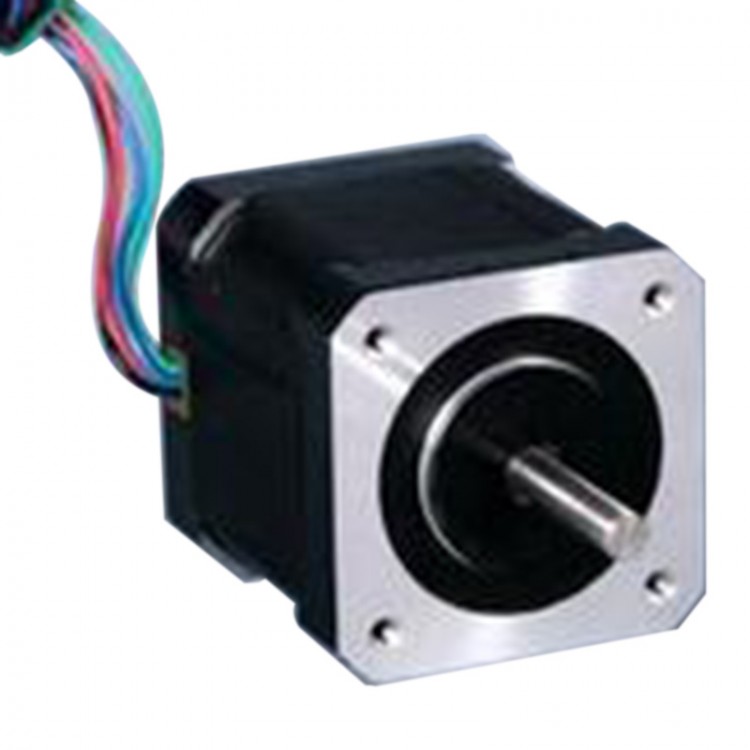

42HS3404A4 Two-Phase Stepper Motor 0.4A 28N.cm 1.8 Degree CNC Stepping Motor
Specification:
- Step Angle: 1.8 degree
- Current: 0.4A
- Resistance: 30Ohm
- Inductance: 35mH
- Holding Torque: 28N.cm
- Detent torque: 1.6N.cm
- Rotor inertia: 34g/cmxcm
- Body Length: 34mm
- Number of Leads: 4
- Weight: 220g
Technology condition:
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
Package included:
- 1 x Stepping Motor
