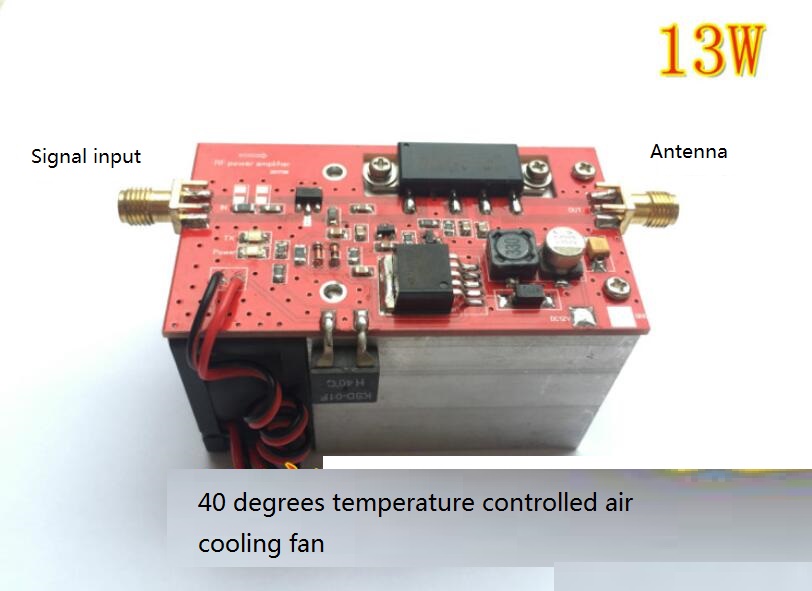

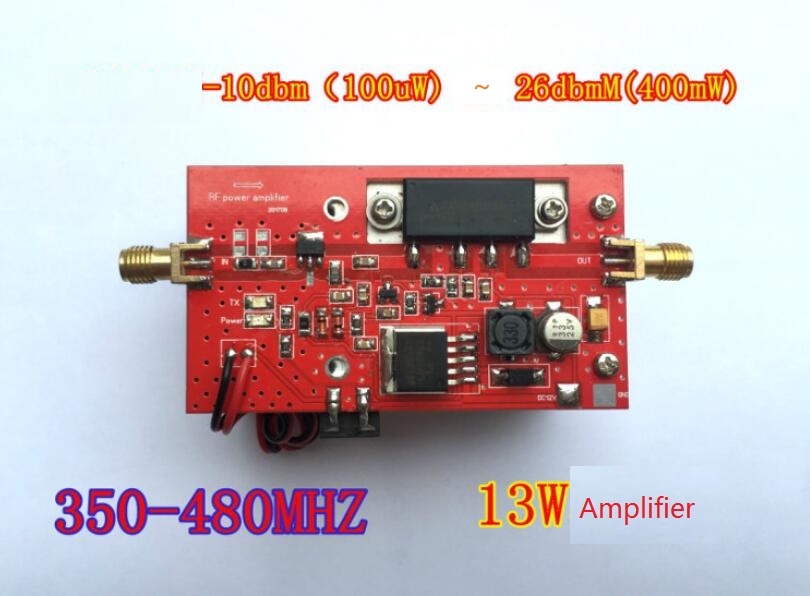

Product Description: The amplifier supports multi format,widely used in data transmission areas:data transmission radio station,433 radio station,aeromodelling,hydrology.It has temperature controlled mute radiator fan,especially for long time working.
Specification:
- Mode:TX13
- Working frequency:433MHz
- Application:data transmission
- Communication method:FSK,DMR,P25
- Frequency stability:12.5KHz
- Input power:-10~26DBM(100uW-400mW)
- Transmission frequency:350-480MHZ
- Working mode:simplex
- Second harmonic:>-20DBM
- Output power:13W
- Power voltage:12V
- Standby current:10-30mA
- Working current:<3A
- Heat dissipation mode:40 degrees temperature controlled air cooling
- Antenna type:external connection
- Size:70x40x40mm(SMA head not include)
Package List:
- 1 x TX13 433 DMR RF Power Amplifier
