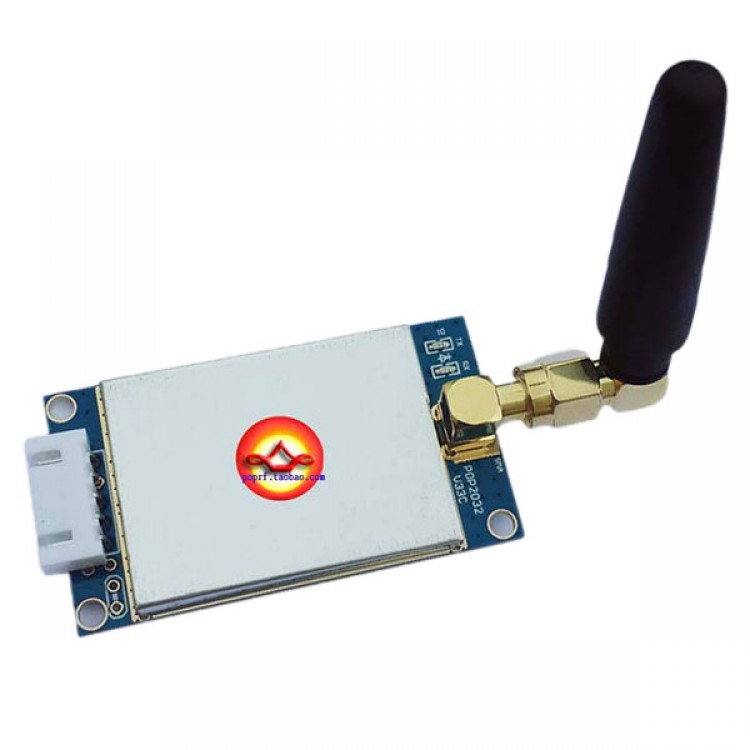

433M Distance POP2032 Wireless Data Transmission Module TTL Serial Port RS232 485 Transceiver Module

433M Distance POP2032 Wireless Data Transmission Module TTL Serial Port RS232 485 Transceiver Module

Function characteristics:
1 spacious visual transmission distance is 300-1800 meters, super penetration (penetrate 6-12 floor)
using anti-jamming GFSK modulation and demodulation,reliable data transmission
2.The carrier frequency is 433 MHz, ISM band need not apply;
3 support for multiple channels,a plurality of groups of modules at the same time transmission don't interfere;
4 interface modes: TTL/RS232 or RS485, in the order you need to specify;
5 data formats: 8N1/8E1/8O1/7E1 (default 8N1, 8 data bits, 1 stop bit);
6 supports multiple rate: 1200/2400/4800/9600/19200/38400/57600bps
(the default is 9600 BPS); the same environment different  rate communication distance is not the same,the lower rate is the  farther communication distance;
7.Transceiver,half duplex transceiver, data conversion automatically, the switching time is short;
8 can be used for point to point, point to multi point, multi point to point etc.varied communication combination methods;
9 data transparent  transmission, support the long data packets continuous transmission;
10 supports power saving modes: through the pin level signal into hibernation or wake up radio;
11 the watchdog function makes the module more reliable work;
12 automatically filtered air produce false data, long-term use good reliability;
13 data transceiver with LED lights, send data,red  lights flashing, receive data, green light flashing
14 in accordance with FCC, ETSI and other standards;
15.Transmit power: 100mW, the instantaneous emission current: 100mA, receiving current: 35mA;
16 default working voltage: 3.3-6V, the commonly used 5V;

Application field:
    wireless RS232/RS485 conversion / connector
    wireless LED screen display advertising screen
    a variety of industry  wireless control, such as: PLC programming and control
    monitoring platform, power supply, wind equipment wireless remote control alarm
    access control, attendance and meal selling system
    medical and electronic instrument automation control
    wireless crane scale, wireless transmission electronic balance
    mapping, measurement and control technology and wireless sensor data transmission
     water, electricity, gas, heating automatic meter reading and charging system
    driving and crane industrial remote control
    railway, oil terminals and forces data communication,
    auto anti-theft, tire pressure monitoring and four wheel aligner
    the bank and the government queue management system
    household appliances and lighting intelligent control
    security alarm and coal mine staff attendance and location
    warehousing logistics, laser gun, bar code reader
    sports training and competition
    wireless order dishes, wireless POS machine, PDA wireless intelligent terminal
    networking and other areas

Package Included:
1*  wireless data transmission module
