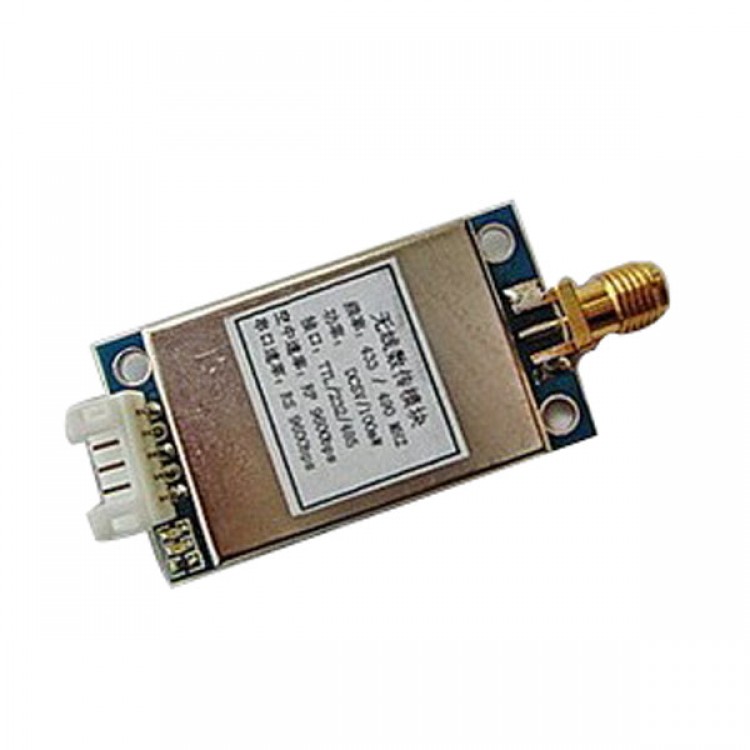

433M Wireless Data Transmission Module Serial Port Communication Wireless Transparent Transmission RS485/RS232
Description:
- Micro power wireless data transmission module satisfy industrial standard, small volume, convenient for building in usage, strong anti interference ability, high receiving sensitivity
- Eye distance reliable transmission distance can reach 1500m, adopts GFSK modulation
- Carrier frequency 315-915MHz, professional meter reading spectrum, no need to apply for frequency.
- Interface rate: 1200/2400/4800/9600/19200bps/38400/57600/115200bps
- Channel rate: 1200/2400/4800/9600/19200bps/38400/57600/115200bps
- Interface method: TTL/RS485/RS232 choose by users
- Receiver Transmitter all in one, half duplex, data transceiver conversion automatically
- Can be used point to point, one point to multi points, multi points to multi points commnunication combination method
- Data transparent transmission, can transmit long data frames
- Automatic filter the false data, reliable quality, very low failure rate
- Power supply: DC +4.5V~+5.5V
- Low consumption: power 100mw, receiving current<30mA, hibernation current<5uA
- Three power saving module: hardware arouse, serial port arouse, air arouse
- Temp: -30℃~+80℃；
- Volume: 37.5mm×23mm×5 mm
