433MHz 100W Anti-drone Module Anti-UAV Module GaN Module Counter-drone Solution Power Amp Module

Description:

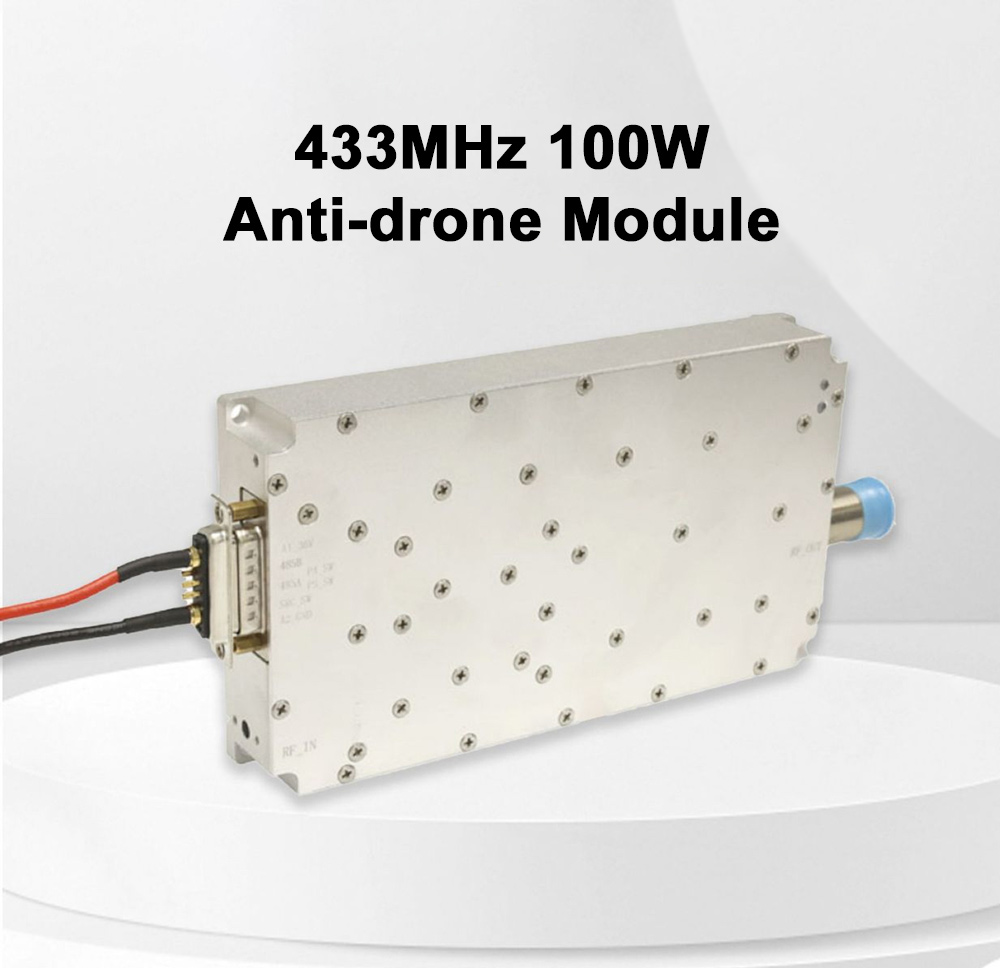

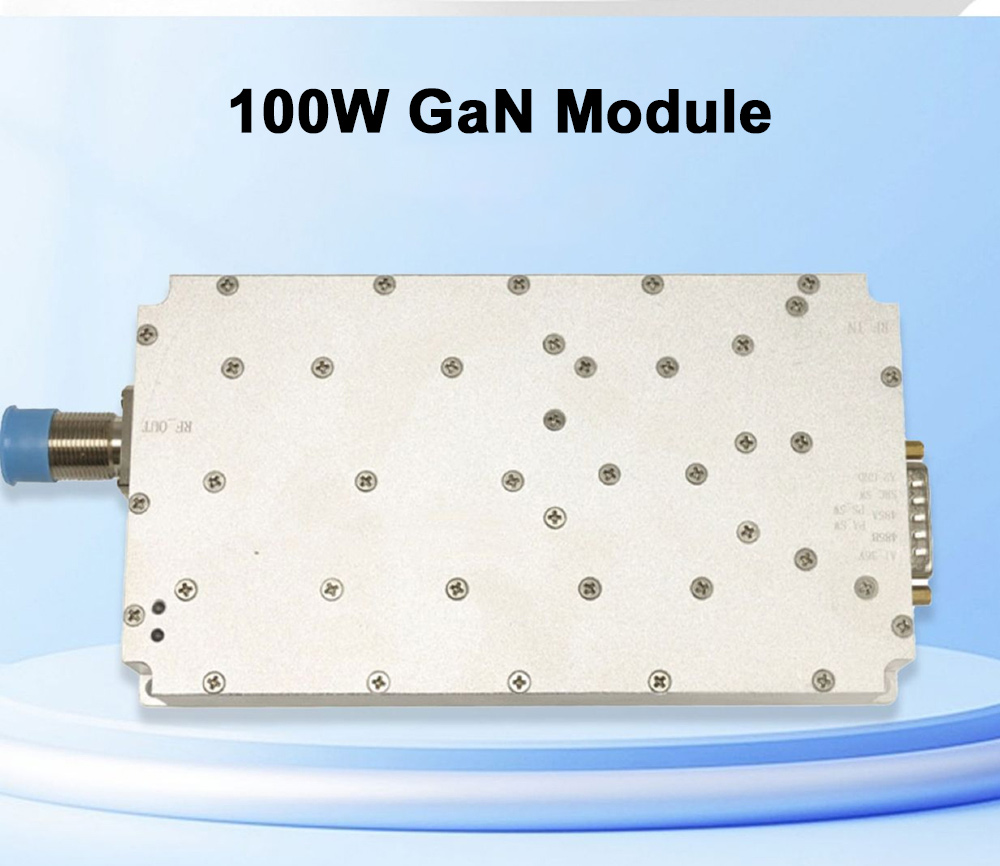

The 433MHz 100W GaN module can be used as an anti-drone module.

Product Parameters:
* Frequency band: 433Mhz
* Output power: 50dBm
* In-band group delay: ≤1us
* Power flatness: 45±1.0, 45±1.0 (Amplifier outputs 50dBm at 5dBm external input)
* In-band fluctuation (dB): ≤2.5
* Input VSWR: ≤1.35
* Output VSWR: ≤1.3
* Supply voltage: +30Vdc range: 24-36V
* Current: +30Vdc at 100W≤5.5A
* Output port: N-50KFD

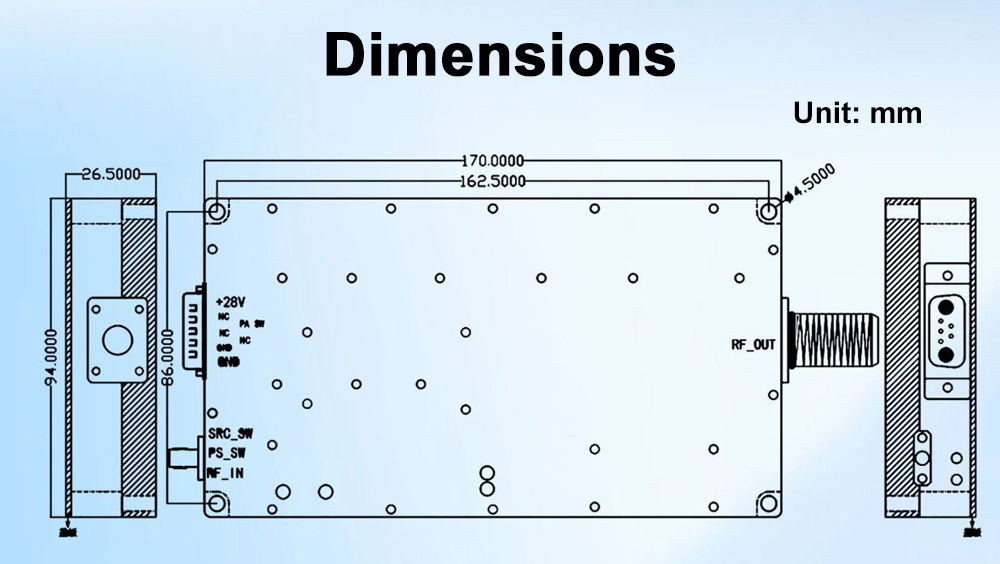

* Dimensions: 170mm x 94mm x 26.5mm/6.7" x 3.7" x 1" (excluding the size of connector)
* Input signal source: Built-in high-efficiency modulation sweep signal source. External signal source can also be connected

Other Information:
* 1 x 7W2 male socket
* 2 x feed-through capacitors (from top to bottom)
  1: A1 is 30V power input, and A2 is GND;
  2: The first pin of 7W2 is PA_SW amplifier enable;
  3: The top feed-through capacitor is SRC_SW (internal signal source switch). Conduction at high levels; cut-off at low levels;
  4: The lower feed-through capacitor is PS_SW (internal and external source switching). High: external source; low: built-in source.

Package Included:
* 1 x Module

Packaging Details:
* Weight: 0.45kg




① Power supply condition: +30V power supply: 7W2 (male)
② RF input interface: SMA-KFD (optional)
③ RF output interface: N-KFD

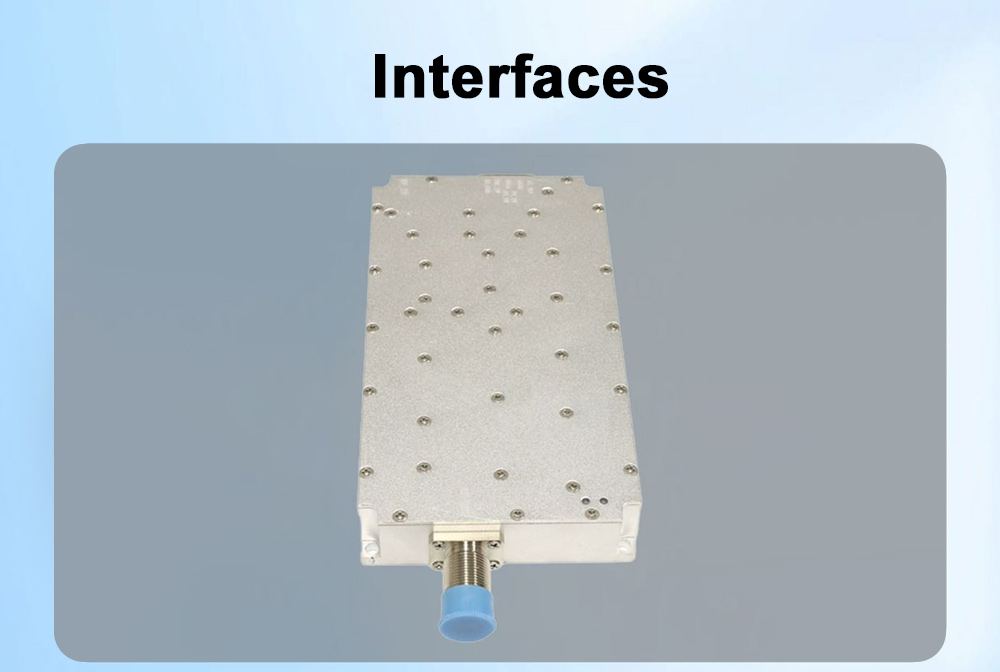

④ Control interface:

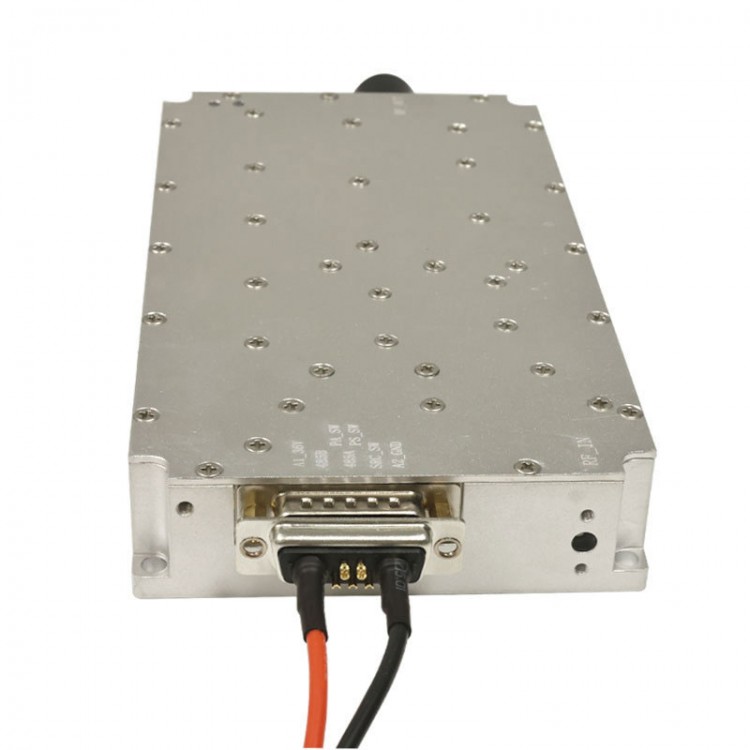

    a. 7W2 (male) socket: Pin 1 is connected to the power amplifier to enable PA_SW (When the high level is 5V/3.3V, the power amplifier is on.) When the level is low or the pin is disconnected, the amplifier is off);
    b. Feed-through capacitors: From top to bottom, they are SRC_SW and PS_SW feed-through capacitors. SRC_SW: Internal signal source will be on when there is 5V/3.3V. The signal source will be off when it is disconnected or grounded. PS_SW: Internal and external signal source switching. When the level is low, there will be a built-in source. It will switch to external power supply at 5V/3.3V high level).
⑤ Installation hole diameter: 4 through holes with a diameter of 4.5mm are left at the positions of installation holes for installing M3 screws.
