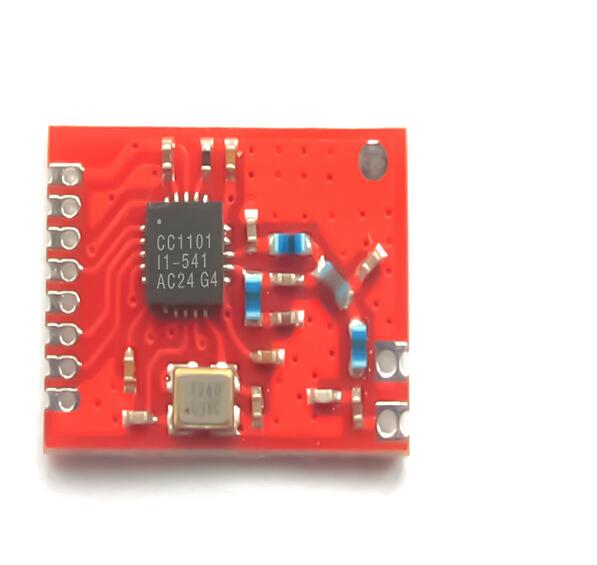

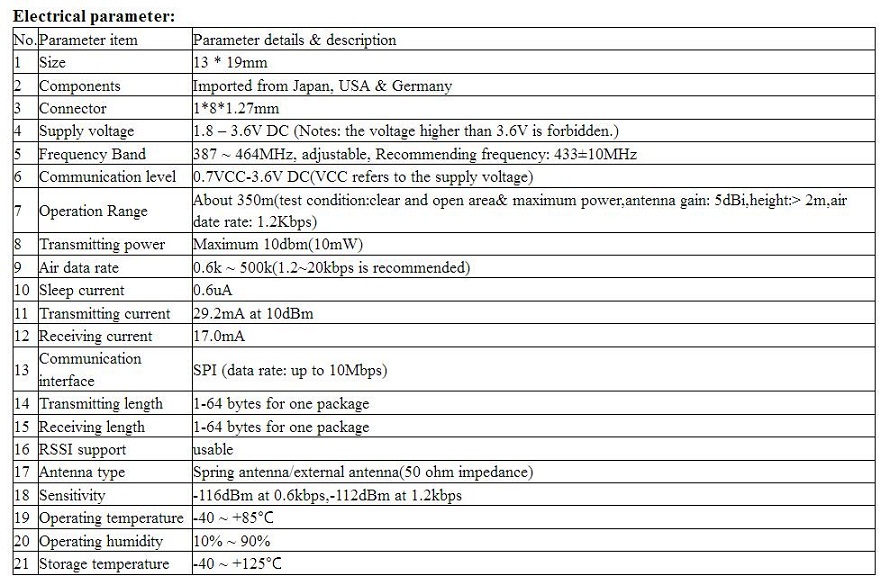

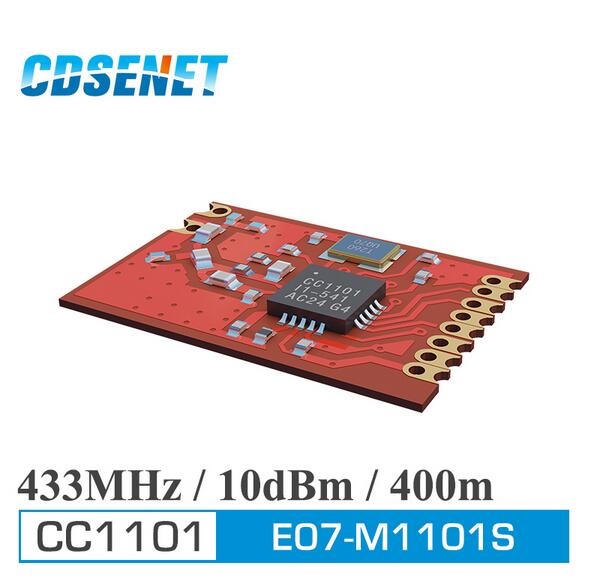

Specification:
- Mode:E07-M1101S

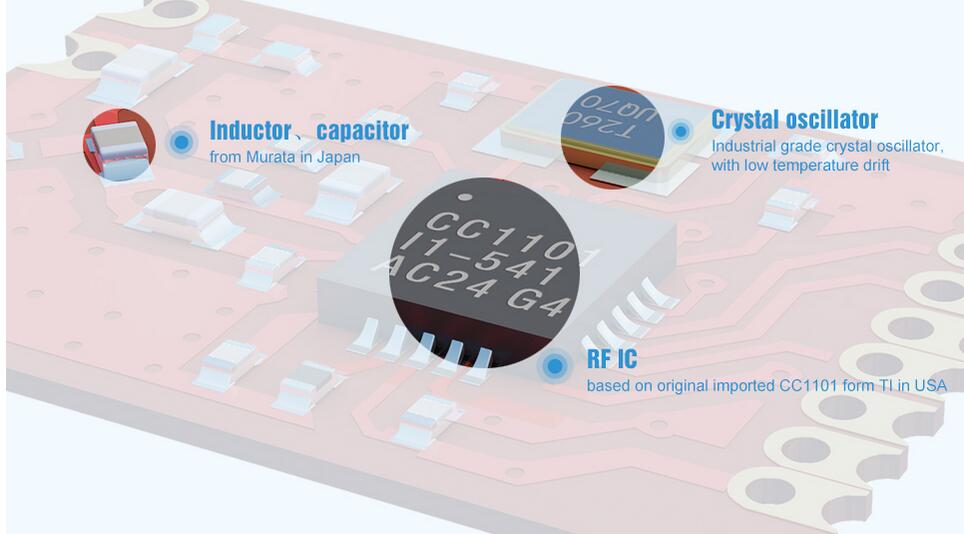

- Chip:cc1101
- The max power:100mW
- Speed in the air:0.6K-500K

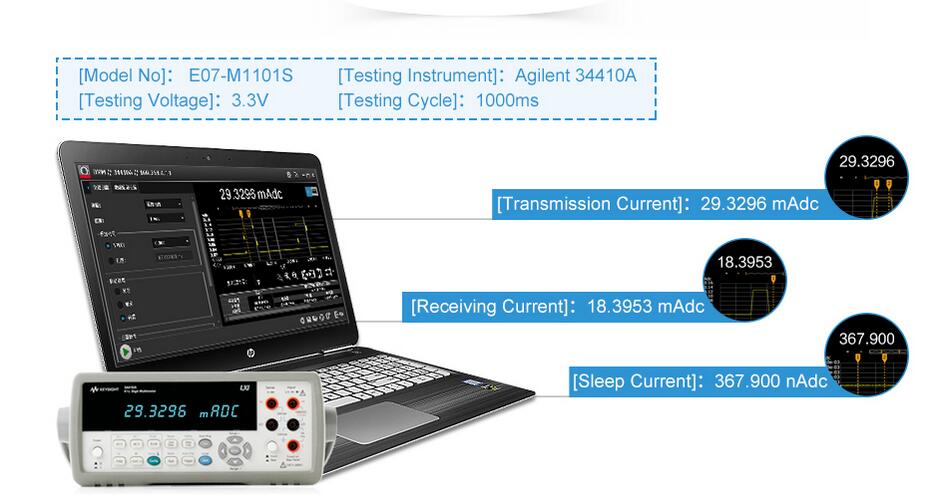

- Transmitter current:29mA
- Antenna type:Spring antenna/external antenna

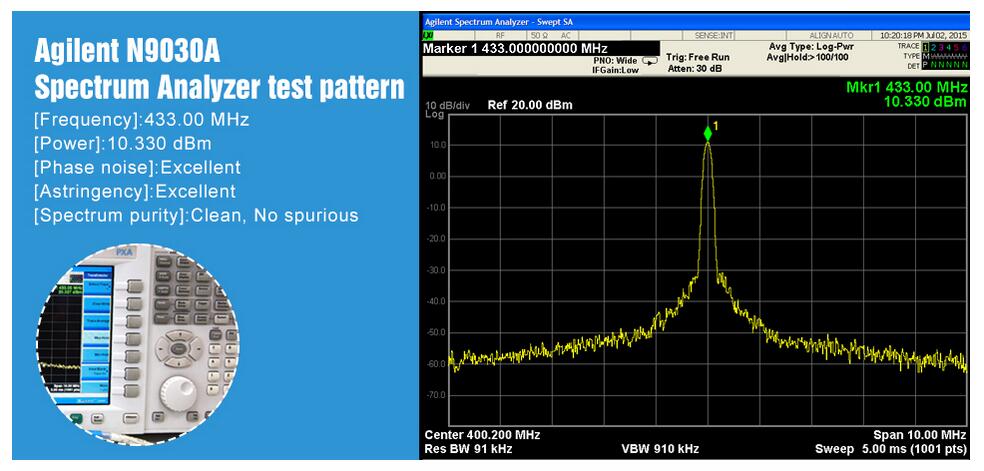

- Center frequency:433M
- Power voltage:1.8-3.6V

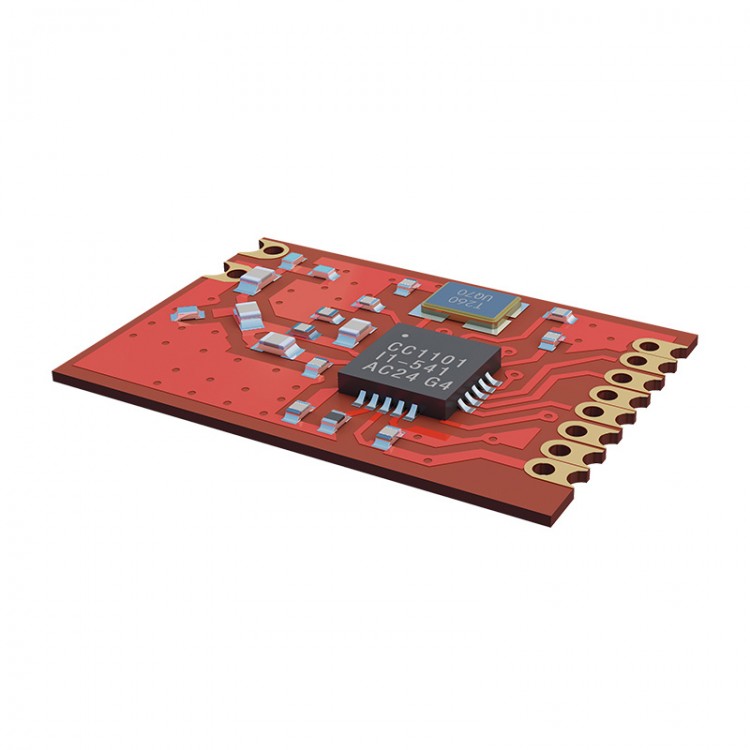

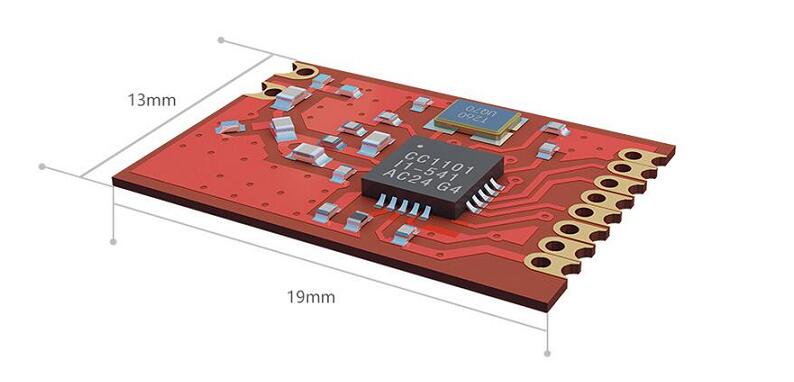

- Size:13x19mm
- Range:500m
- Feature:E07-M1101S is a SMD wireless transceiver module, operates at 433MHz with small-size and 10mW transmitting power.
Operating in the ISM bands, supporting low power consumption development and have stable batch production, which make the module suitable for various applications(especially for the electronic door lock in hotel).

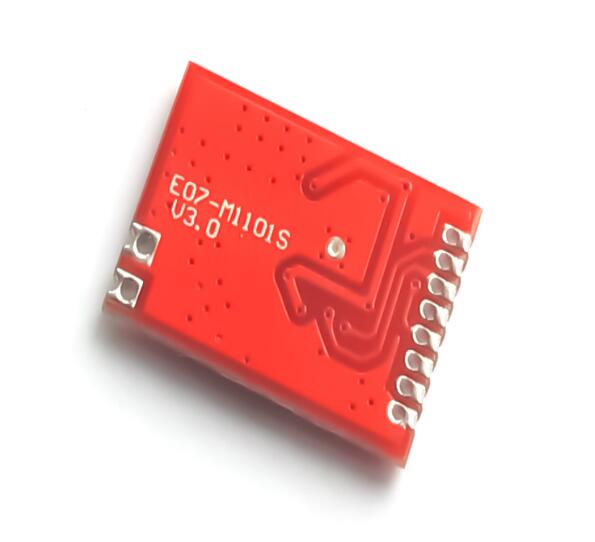

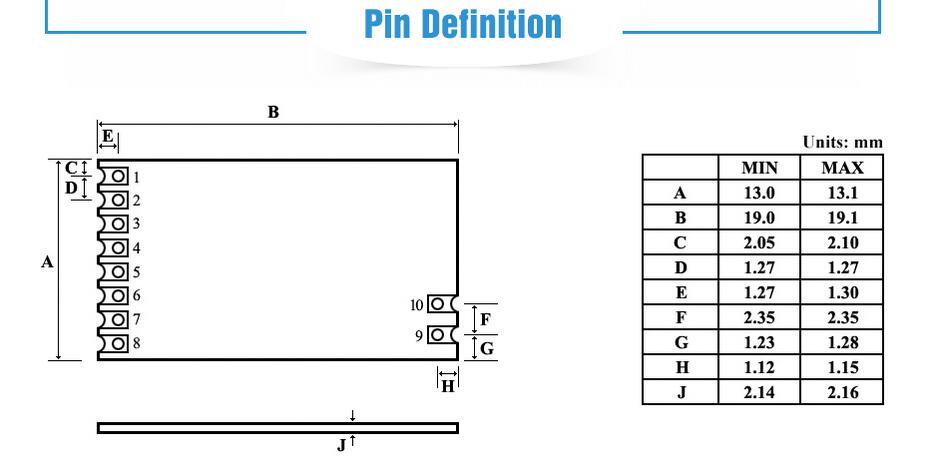

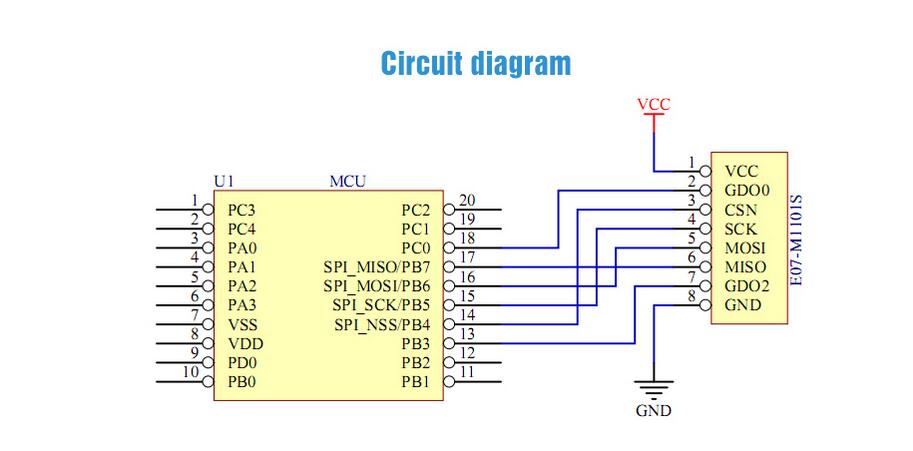

Pin number Pin name Pin direction:Pin uses
1.VDD Power supply, must be in the range 1.9-3.6V
2.GDO0 Module information output pin
3.CSN input Module chip select pin, used to start a SPC communication
4.SCK input SPI bus clock
5.MOSI input Module SPI data input pin
6.MOSI/GDO1 input input module SPI data output pin
7.GD02 output output module information output pin
8.GND output Express, connected to the power supply ground reference.

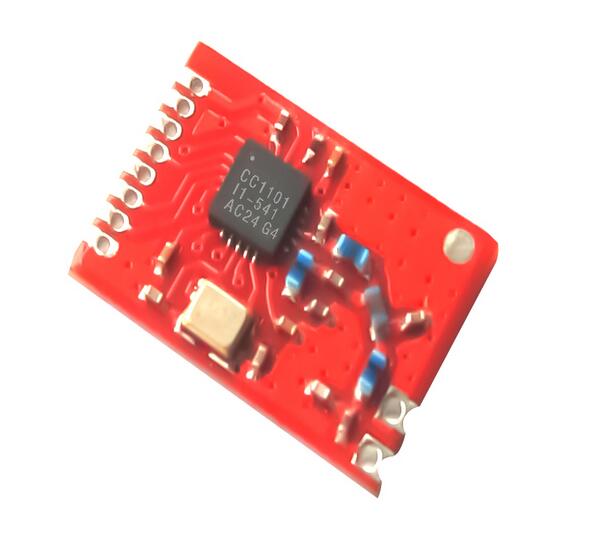

Package List:
- 1x E07-M1101S Wireless RF Module Transceiver
