433MHz CUAV Data Transmission Telemetry to Bluetooth Box (RTB+TTL End Telemetry Module)

Availability: In stock, usually dispatched in 1 business day

  • Price:$59.86
  • Price in reward points: 599 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $58.66 $57.47 $55.67 $53.28 Contact US
Quantity:

433MHz CUAV Data Transmission Telemetry to Bluetooth Box (RTB+TTL End Telemetry Module)

Description:

- RTB Box is a 3DR wireless serial port to bluetooth box, integrating lipo battery charge discharge managing circuit, USB data terminal will automatically switching multifunctional box
- Wirless serial port: wirless module adopts 3DR open source firmware, compatible with 3DR telemetry receiving end of same frequency. (Default baud rate 57600, firmware version 1.9)
- Lipo battery mangement: built in 850mah battery, can last for 8 hours
- Wireless bluetooth: built in 2.1 bluetooth module, support PC or Andriod telephone wireless connection
- USB automatically swith: automatic detect USB pluging in, when USB plugs in, the data terminal end will automatically switch to USB FTDI serial port. When there is no USB pluging in, it is bluetooth-telemtery
- Built in battery AND charging circuit
- Bluetooth or USB FTDI automatic switching
- 100mW maximum output power (adjustable)
- Wireless transmission distance 750m *
- Frequency Hopping Spread Spectrum (FHSS)
- MAVLink protocol framing
- CUAV TTL Radio
- 4-Wire TTL port
- 100mW maximum output power  (adjustable)
- Air data rates up to 252Kpbs(adjustable)
- Wireless transmission distance 750m *
- MAVLink protocol framing
- Frequency Hopping Spread Spectrum (FHSS)
- Open-source SIK firmware
- RP-SMA connector

Specs:
- USB POWER SUPPLY                               4.5-5.5v
- Battery capacity                                   850mah
- Current Consumption                          100ma
-  Standby current                                  12ma
- Charging current                                 350~450ma
- Working temp range                   -10 ~+60°
- Operating humidity                             85%RH
- Radiorange                              500-800m
- Bluetoothrange                              8-15m

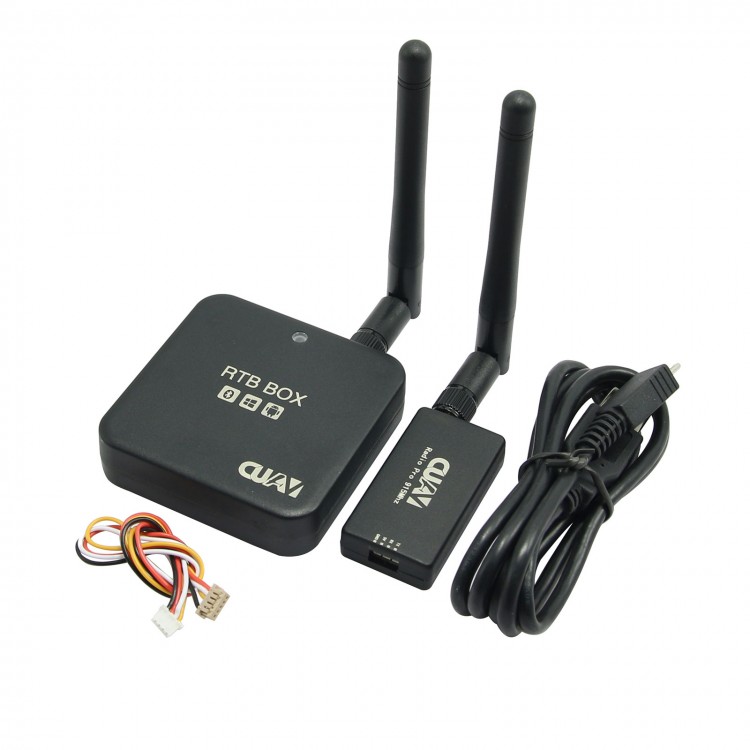

Package includes:
- RTB x 1
- USB cable x 1
- Telemetry module x 1
- APM data cable x 1
