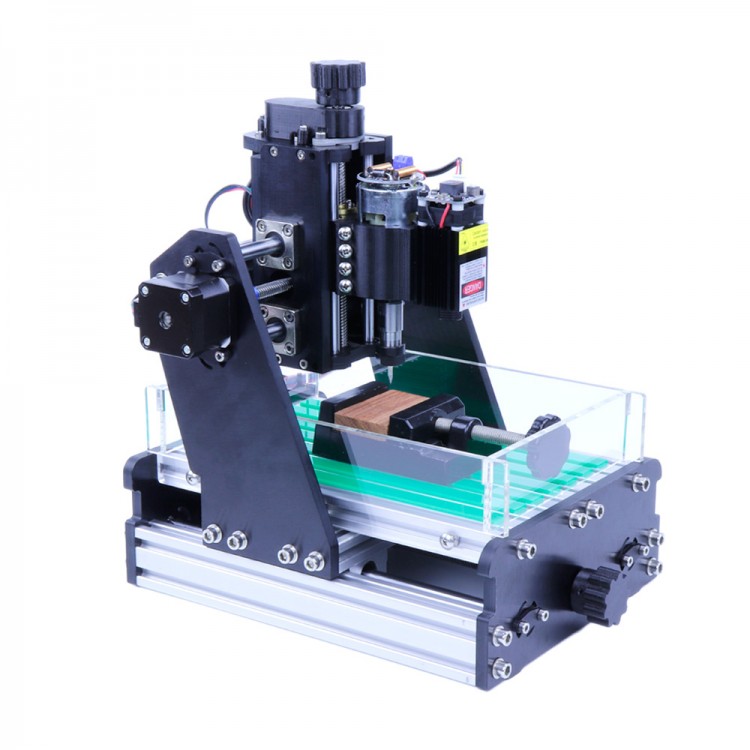

45W Desktop CNC Engraver Mini Laser Engraver Unfinished Working Area 33x21x6cm 2235 Standard Version
Features:
- Working Area: 33 x 21 x 6cm (L*W*H).
- High Precision Engraver: Accuracy of positioning is 0.02mm. Accuracy of processing is 0.03mm.
- 2-In-1 CNC Machine: It can be used as a CNC engraver or a laser engraving machine. Please purchase laser module separately.
- Engraved Materials: Including wood, Jade, bamboo, bone, amber, turquoise, crystal, software metal, and the like.
- Compact Size: Design with industrial structure, the small engraving machine works stably with even force.
- Other Functions: Highly integrated controller board; Linear Interpolation, Circular Interpolation, Temporal Interpolation; Spindle PWM Speed Regulation; Can be Connected to Limit Switch; Can Set Software Limit; Can be Connected to Tool Setting Module; USB Interface for Connection.
- High-Precision Control: 3-Axis 42 stepper motors feature 1.7A, 1.8°; Controller board features 16 subdivisions for precise control and its positioning accuracy is up to 0.02mm.
Product Details:
- 2235 Engraver Standard Version
- Control System: USB-GRBL
- Control Software: Precise Engraving
- Communications Way: Via USB Interface
- For PC System: For Win 7/8/10
- 3 Axis Linkage: Yes
- Drive Way: 1.7A 42 Stepper
- Rail Type: Hardened Round Rail
- Spindle Power: 45W
- Cooling Way: Air Cooling
- Chuck Type: Rigid Coupling
- Laser Power: Arbitrary (Not included)
- Driving Type: T8 Precision Guide Screw
- Positioning Accuracy: 0.02mm
- Voltage & Current: 12V 6A
- Working Area: 33 x 21 x 6cm
- Assembled Size: 56 x 40 x 35cm
- Main Functions: 3-Axis Linkage, Linear Interpolation, Circular Interpolation, Temporal Interpolation, Support Machine Coordinate Origin, Support Workpiece Coordinate Origin, Support Hardware Limit, Support Software Limit, Support Tool Setting, 4 Groups of Self-defined Buttons, 3 Groups of Segments, Support Emergency Stop, Pause, Specify Segment to Start Processing, Spindle PWM Speed Regulation, Laser PWM Power Regulation, Preserved Serial Port for Offline Controller
- For Materials: Wood, Jade, bamboo, bone, amber, turquoise, crystal, software metal, etc. (Please use carving knife according to different materials).
What’s in it?
- 2235 Engraver Frame + Power Supply + Spindle + Data Cable + Controller Board + 2pcs Carving Knives (30°) + Wooden Block + Bench Clamp...
Package Included:
- 1 x Set of 2235 CNC Engraver Unfinished
