480W Adjustable DC Switching Power Supply Switch Mode Power Supply 0.28" Display (Output 0-12V 40A)

Features:

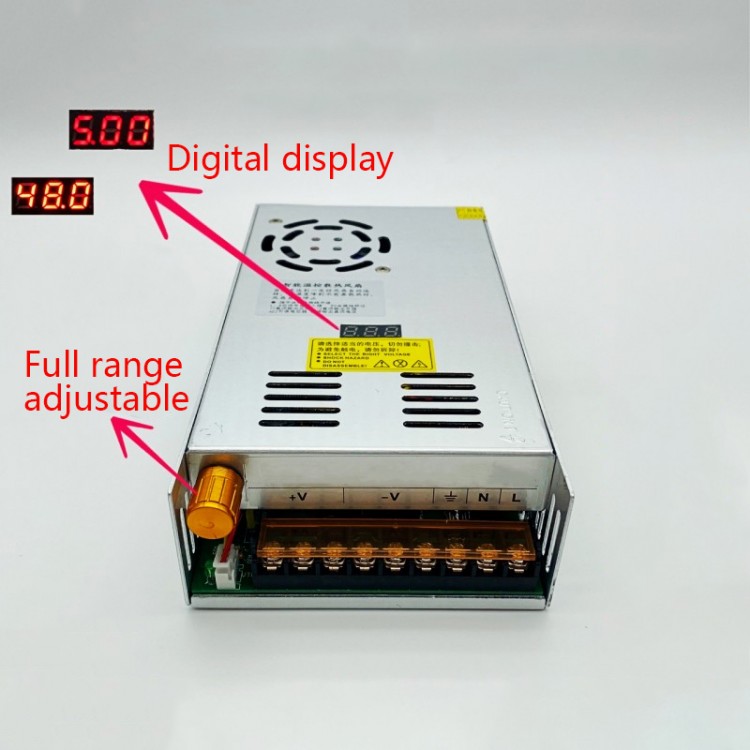

- 0.28" Digital DC Voltmeter: Good stability and high test accuracy
- The voltage can be adjusted all the way
- Thickened aluminum alloy shell. The open-hole design makes it more thermally conductive and the power supply operates more stably
- Cooling fan (ultra-quiet) with intelligent temperature control: When the temperature reaches a certain level, the fan runs automatically. When the temperature does not require cooling, the fan automatically stops
- With a 110V/220V switch; widely used around the globe
- Premium components: Two imported power tubes, imported 494 chip, imported fast rectifier tubes, double imported electrolytic capacitors, FR-4 sheet double-sided double-layer PCB, and high-frequency low-resistance filter capacitors
- Pure Copper: Transformer, inductor, common mode, and drive

Specifications:
DC output range:
0-5V 60A (can be adjusted to 8V); 3-digit display
0-12V 40A (can be adjusted to 15V); 3-digit display
0-24V 20A (can be adjusted to 27V); 3-digit display
0-36V 15A (can be adjusted to 38V); 3-digit display
0-48V 10A (can be adjusted to 50V); 3-digit display
0-60V 8A (can be adjusted to 62V); 3-digit display
0-80V 6A (can be adjusted to 82V); 3-digit display
0-120V 4A (can be adjusted to 122V); 4-digit display
0-160V 3A (can be adjusted to 162V); 4-digit display
0-220V 2.2A (can be adjusted to 222V); 4-digit display
0-300V 1.6A (can be adjusted to 305V); 4-digit display

Other Parameters:
- Ripple voltage: not more than 100mV
- Equivalent internal resistance of voltage regulator: not more than 0.05Ω
- Voltage regulation
- With short-circuit and overload protection, and automatic recovery function
- Input voltage: AC110V/220V±15%
- Rated power: 480W
- 0-5V control PLC signal control
- Dimensions: 215 x 115 x 50mm/8.5 x 4.5 x 2" (LxWxH)

Package Included:
- 1 x Power Supply

Applications:
It is mainly used in various DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electrolytic plating speed regulation, scientific research testing, student experiments, etc.

Attention:
When using inductive loads such as motors and fans, please pay attention to the motor starting current parameters. This parameter should not be higher than the current used by the power supply, otherwise the power supply may be damaged. You should choose a power supply with a larger current, or equip the motor with a soft-start protection circuit to absorb the inrush current.

Terminal Description and Wiring Method:
L, N: AC input terminal
FG: Ground
V+: DC output positive terminal
V-: DC output negative terminal
ADJ: Adjustable potentiometer (fine adjustment of output DC voltage)

- Full voltage input
- Miniaturization
- Protection function: short-circuit/overload/over-voltage
- Full load aging test
- Input voltage & frequency range: 110V/220VAC/47～63Hz
- Start Inrush Current: 20A at 120VAC (cold start)
- Output adjustment range: ±(rated output voltage)
- Overload protection: 105%～200% (rated load), self-recovery
- Over-voltage protection: 115%～135% (rated output voltage)
- Short-circuit protection: self-recovery
- Output startup time: ≤2S at 120VAC; ≤1.0S at 230VAC
- Output hold time: ≥10mS at 120VAC; ≥20mS at 230VAC
- Dielectric Strength: Input--Output: AC1500V, 1min; Input--chassis: AC1500V, 1min; Output--chassis: DC500V, 1min
- Working environment: -10℃ to 50℃; 20%～90%RH (non-condensing)
- Safety Standard: Designed with reference to EN/UL60950
- Electromagnetic Compatibility Standard: Design Reference EN55022 Class B; EN61000-4-2/-3/-4/-5/-6/-11
