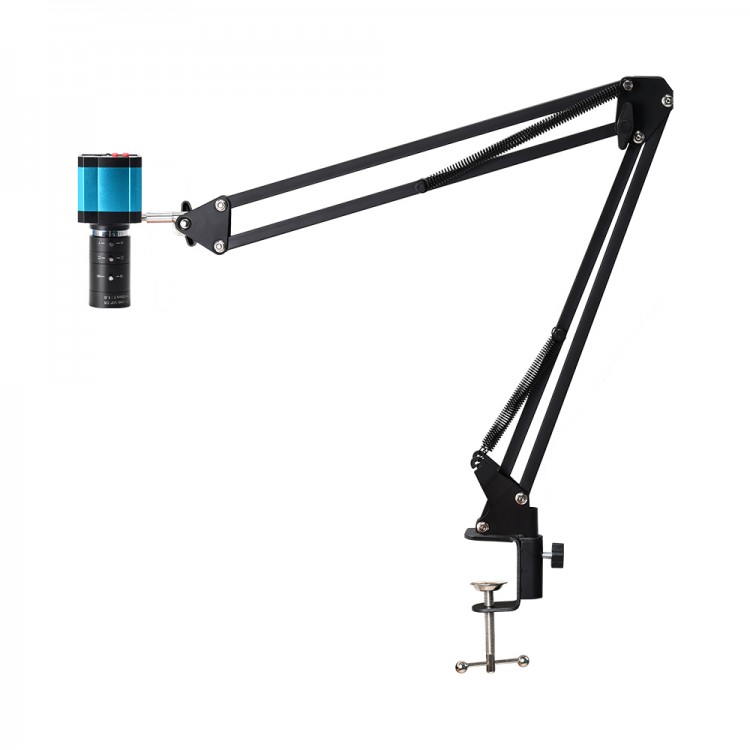

48MP 2K USB Industrial Microscope Video Camera Big Visual Field 6-60MM Zoom Lens For PCB Repair

48MP 2K USB Industrial Microscope Video Camera Big Visual Field 6-60MM Zoom Lens For PCB Repair

Features:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects
3. Using highquality materials which are strong and durable, and enjoying a long service life
4. HD camera with 48 megapixel 1/2.9 inch sensor for CMOS, with HDMI USB port
5. Strict quality control, quality assurance and high safety factor. Can be used with peace of mind

Specifications:
- Item Type: Microscope Camera
- Module: 2307D
- Sensor: 48MP for CMOS
- Optical Format: 1/2.9inch
- Pixel Size: 1.335μmx1.335μm
- Interface: HDMI (Type A). USB (Type B). Small memory card
- HDMI Image Resolution: 48MP
- Video Resolution: 2K at 30FPS and 1080p at 60FPS
- HDMI Resolution: 1920 x 1080p at 60FPS
- HDMI Scale: Support 4:3, 16:9 and 16:10 screen
- USB2.0: 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS and 640 x 480 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port

6-60MM/0.2-2.4" Lens:
- Image Format: 1/3"
- Focus Length: 6-60MM/0.2-2.4"
- Aperture: F1.6
- Mount Type: CS Type
- Angle of View: 44.8°-4.6°
- Minimum photographic distance: 0.2

Problems & Solutions:
LCD with no video or flickering
1. Check the power supply. Check if the red LED lights up. Press Power Key to move it up.
2. Check the lens cover. Increase lighting.

LCD has black bars and image distortion
1. Change the resolution of LCD
2. Change the camera resolution

Dirty spots
1. Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent

Package Included:
- 1 x 48MP Microscope Camera
- 1 x HDMI Cable
- 1 x USB Cable
- 1 x IR Remote Control
- 1 x Power Adapter
- 1 x Stand
- 1 x 6-60mm Lens

Note:
- Battery for the remote control is not included. A CR2025 button battery is recommended.
