48MP Industrial Microscope Camera FHD w/ 180X C-Mount Lens 56-LED Ring Light For Phone PCB Repair

48MP Industrial Microscope Camera FHD w/ 180X C-Mount Lens 56-LED Ring Light For Phone PCB Repair

Features:
- Model: Camera with HDMI USB2.0 two output
- Image format: jpg
- Image resolution: 48MP
- Video format: MP4(for TF card)
- Video recorder: 2K@30FPS, 1080P@60FPS
- HDMI Video resolution: 1920*1080 @ 60FPS
- USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
- White Balance: Auto/Manual
- Light: Auto/Manual
- Exposure: Auto/Manual, value adjustable
- Color: Color
- Mirror: Left/right, Up/Down
- Freeze: Support
- OSD: English/Chinese/French/Spanish/Japanese/German
- Line: different color, 5 horizontal line, 5 vertical line, any positions

Specifications:
- Image sensor: For 48 megapixel Panasonic CMOS sensor 1/2.33 inch
- Effective pixel: 48 megapixel
- Pixel size: 1.335μm x 1.335μm
- Frame rate: 60fps
- Definition: FULL HD
- Housing: metal
- Lens: C/CS
- Video format: MOV
- Digital Zoom: Support
- Brightness control: Auto/manual
- Color: R/G/B adjustable
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line:
* Support multi-color, 5pcs of transverse lines/vertical lines, moveable
* Different color, 5 horizontal line, 5 vertical line, any positions
- TF card interface: Max 64G
- HDMI interface: Standard HDMI output (Type A)
- USB interface: Standard usb2.0 interface (Type B)
- Input Voltage: DC 12V

180X C-Mount Lens:
- Working distance: 95mm
- Zoom c-mount Lens
- 0.5X C-mount adapter
- Zoom ratios: 6.5:1
- Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
- Size: 180mm(L) * 50mm(DIA) (180X maximum working distance 11.5CM)

56 LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 56 bright LED
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, auto switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 27mm-120mm

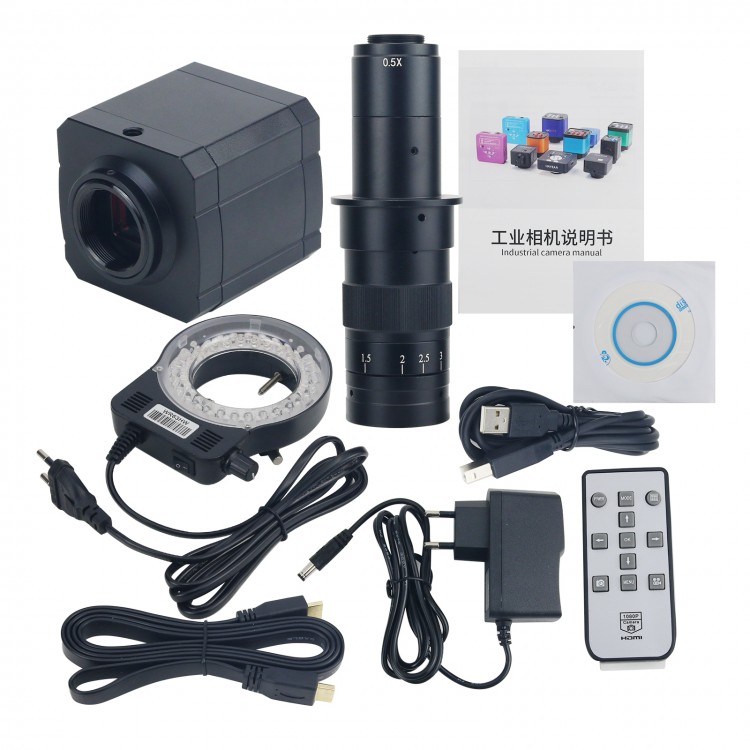

Package Included:
- 1 x Set of Microscope Camera
