48V 1000W Bicycle Motor Conversion Kit Mid-Drive w/ Integrated Controller C965 LCD Display 100mm
Product Details:
- Compatible with standard bikes, touring bike and commuter bikes
- A maximum torque of 160 Nm to provide ideal power for vehicles
- This motor greatly enhances riding comfort
- Suitable for bottom bracket in 100mm
- Has a rated power of 48V 1000W
- A reduction ration of 1:21.9
- Light but strong and efficient
Specifications:
- Motor Type: Mid Drive
- Construction: Geared Motor
- Rage Voltage (DCV): 48V
- Loading of OW (RPM): 130/150 RPM
- Rated Power: 1000W
- Max Torque: 160Nm
- Efficiency (%): ≥85%
- Pedal Sensor: Speed Sensor
- Shaft Standard: JIS
- Motor Weight: 4.8 kg
- Speed Detection Signal (Pulses/Cycle): N/A
- Reduction Ratio: 1:21.9
- Magnet Poles (2P): 8
- Noise Grade: <55dB
- Waterproof Grade: IP65
- Certifications: CE/UL/ ROHS EN 14764
- G.W.: 6.5 kg
- Color: Black

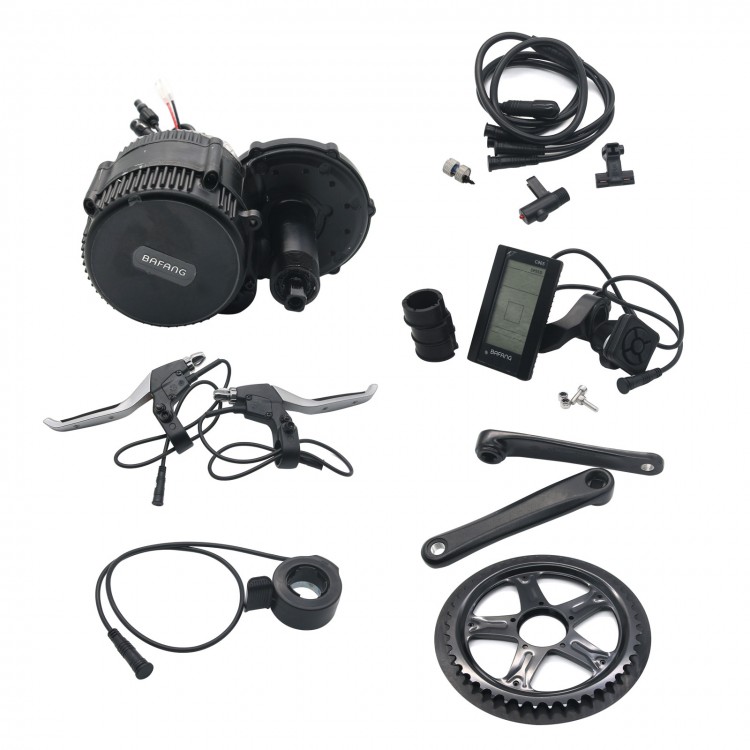

Packing Included:
- 1 x Mid-Drive Motor
- 1 x C965 LCD Display
- 2 x Brake Levers
- 1 x Thumb Throttle
- 1 x Waterproof Quick Release Wire
- 1 x Speed Detecting Sensor + Magnet
- 1 x Chain Wheel + Chain Cover
- 1 x Left Crank + Right Crank
- 1 x Fixing Plate
- Other fixing accessories
