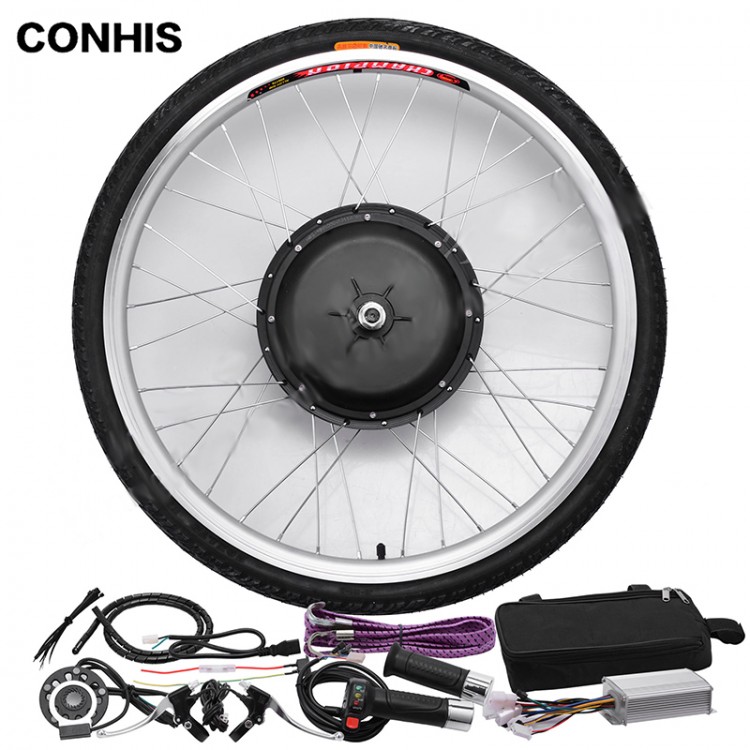

48V 1000W Front Wheel Electric Bicycle Conversion Kit 12'' 16'' 18'' 20'' 24'' 26'' 28'' 700C
Features:
- Optional Front Wheel: 12'', 16'', 18'', 20'', 24'', 26'', 28'', 700C

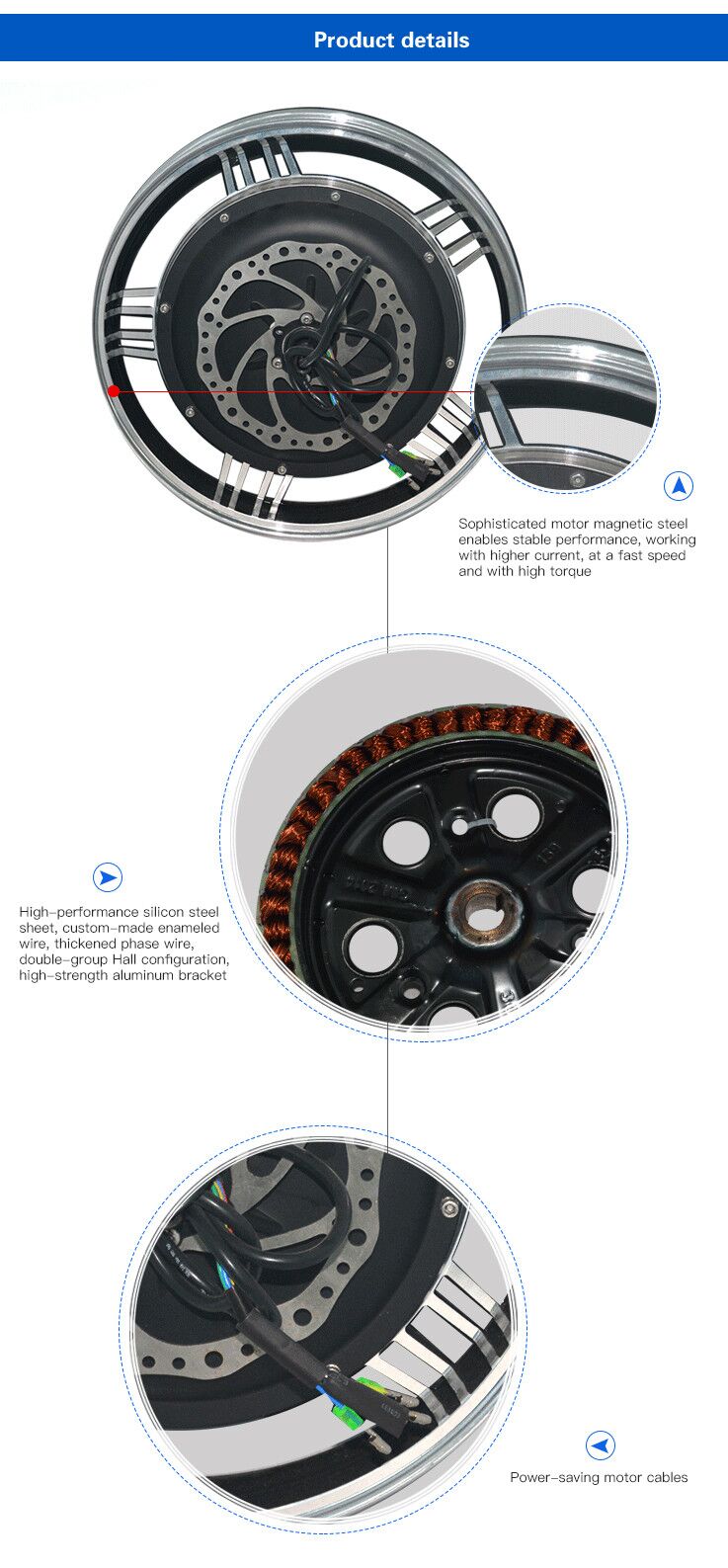

- Sophisticated motor magnetic steel enables stable performance, working with higher current, at a fast speed and with high torque
- High-performance silicon steel sheet, custom-made enameled wire, thickened phase wire, double-group Hall configuration, high-strength aluminum bracket
- Power-saving motor cables
Specifications:
- Voltage: 24-48V
- Power: 150-1000W
- Motor: Brushless Gearless 205Series Hub Motor
- Motor Net Weight: 6-6.5kg
- Motor Diameter: 243mm
- Motor Shaft Diameter: M14
- Motor Shaft Length: 153mm
- Optional Front Wheel: 12'', 16'', 18'', 20'', 24'', 26'', 28'', 700C
- Motor Cable Length: 150cm
- QTY of Hall Sensors: 3pcs
- Rated Speed: 180-550RPM
- Rated Torque: 15-35NM
- Magnet Size: 13.65 *3*30mm *46
- Flat Fork Width: Min. 100mm
- Controller: 36V 500W
Package Included:
- 1 x Front Wheel
- 1 x Carry Bag
- 1 x Controller
- 1 x Band
- 2 x Handlebar Grips (One Twist Speed Throttle)
- 2 x Brake Levers
- 3 x Connecting Cables
- 1 x Sensor
- Some Binding Ties
Note:
- Please note that battery is not included in this package. You can buy lead-acid batteries or lithium batteries by yourself!
- Please leave a message about your favorite wheel size when purchasing. Thank you!
