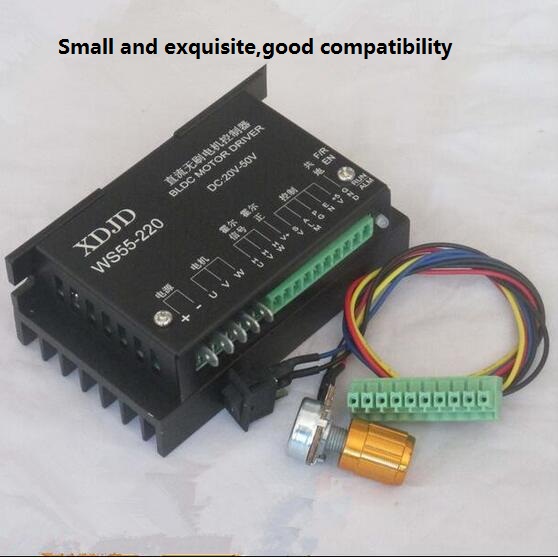

48V 500W WS55-220 Brushless Spindle BLDC Motor Driver Controller MACH3 Speed Analog

48V 500W WS55-220 Brushless Spindle BLDC Motor Driver Controller MACH3 Speed Analog

Product Description:
- WS55-220 brushless DC motor controller is commonly used in 24V, 36V, 48V third voltage ranging from 20V to 50V that the motor can work normally. Compatible square wave includes Holzer and no Holzer. It has potentiometer speed control function, external 10V voltage speed regulation function, switch machine function, speed output function, alarm output function, positive and negative reverse function, etc.It has protective shell.
- Widely used in small equipment, power tools, pumps, fans control system, etc.

Have:
L compatible with Holzer and no Holzer
L start to stop
L external potentiometer control/external voltage control
L lnertia stop
L owe overvoltage protection
L current limiting
L over-current protection
L locked-rotor protection
L the alarm signal output
L speed signal output
L compatible with and without hall hall

Controller Performance Parameters:
- The rated voltage:20 to 50 VDC
- Rated current:WS55-220:12 a
- Current limiting:15 a
- Maximum speed:Support speed 20000RPM or more, the specific speed depends on the motor itself and load.
- Two modes of speed regulation:
1.external potentiometer: through this potentiometer speed regulation;
2.external voltage: external 10VDC voltage speed regulation;
Note: The two speed regulation can not be used simultaneously;
- Speed output:PG signal: There is a 5v-revolution pulse output between the port and the ground.
The output frequency is set to P (Hz), the motor class logarithm is N, and the speed is F (RPM), then the output speed frequency is P=F*N/60;
Alarm output:ALM signal:There is an 5v alarm pulse output between the port and the ground.
Positive inversion function:F/R:Fiddle the toggle switch on the corresponding side, the motor steering direction can be changed. For the toggle switch, the white part is up and down, then twang it up and down. For the toggle switch, the white part is horizontal, and the twang horizontally.
- Start-stop:Two control modes:
1.External switch EN: Transfer through switch;
2.Side toggle switch EN: for the toggle switch, the white part is up and down, then down for the start; for the toggle switch, the white part is horizontal, then dial to start
- Remark: You can only turn one control at the same time, one of the switches is closed, and the other one is valid
- Blocking protection:If the motor stops working ,switch on the power again to start.
- Power light:Green light: power on and off
- Status light:Red light: two flashes in standby time, after starting, extinguish. Blink when fault occurs
- Insulation resistance:>100M at ambient temperature and atmospheric pressure
- Insulation strength:At normal temperature and pressure, 0.5KV, 1 minutes

Usage environment and parameters:
- Storage temperature:-20℃~+65℃
- Usage environment:occasion:Avoid direct contact with dust, fumes and corrosive gases
- Temperature:0-45 DEG C
- Humidity:< 80%, no frost, frost free
- Shock:5.9m/S2 MAX
- Storage humidity:0~95%RH
- Volume:96mm (long) *67mm (wide, including terminal block) *37mm (high)
- Weight:195g (with potentiometer and switch)
- Terminal connection mode:Potentiometer speed control connection mode;External 10V speed control connection mode

Package List:

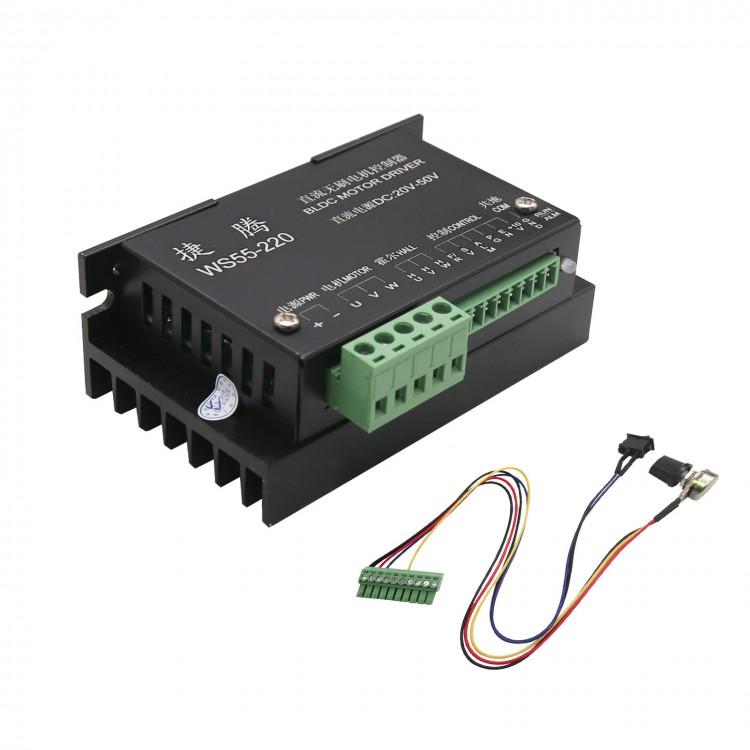

- 1 x 48V 500W WS55-220 Brushless Spindle BLDC Motor Driver Controller
- 1 x Connection wire
