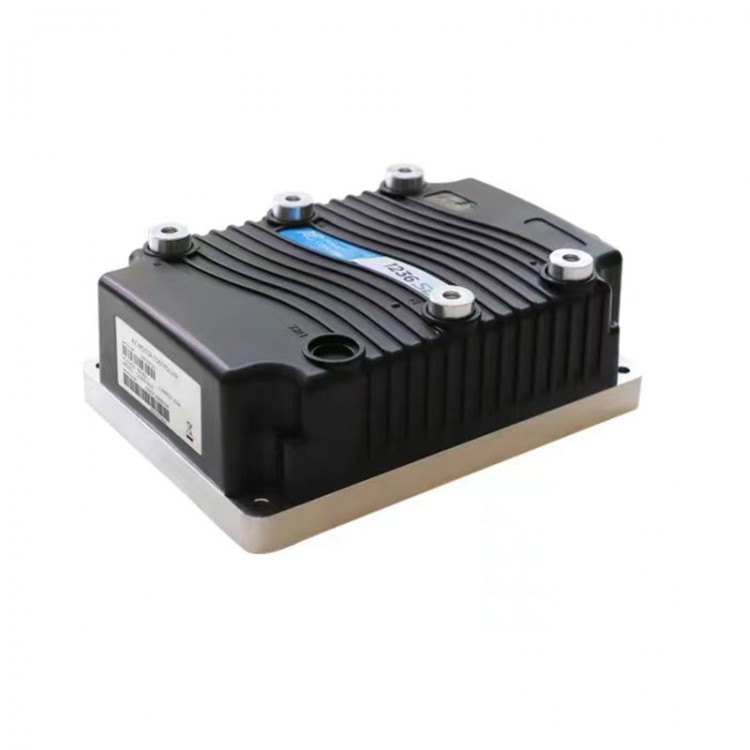

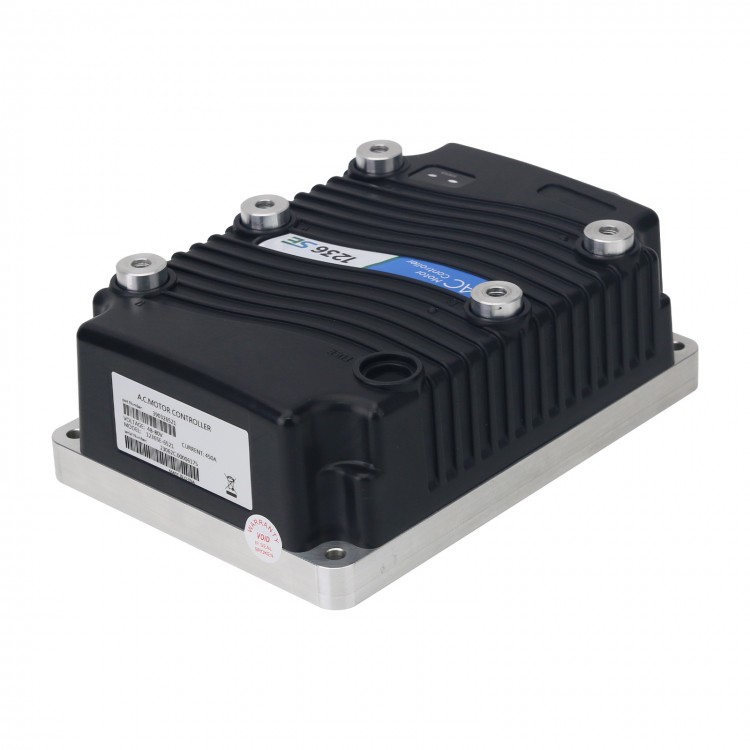

48V-80V 450A 1236SE-6521 AC Motor Controller AC Motor Speed Controller Made in China for Curtis
Description:
Through advanced control software, the controller ensures that the motor can run smoothly in different modes, including regenerative braking at full speed and high torque, zero speed and torque control, proprietary input/output ports and software. This improves the economy and high efficiency of the controller for electromagnetic brake and hydraulic system control.
Advantages:
- Product voltage: 48-80V
- Product current: 450A
- Powerful operating system ensures that vehicle control, motor control and user-side programs run simultaneously.
- Advanced pulse width modulation technology ensures that the electricity is used efficiently and reduces the loss of motor energy consumption and torque conversion.
- Built-in electricity status and timer function.
- On-site debugging program. Built-in flash memory can download software at any time.
Features:
Robust Safety and Reliability
- Dual Microprocessor architecture cross-checks critical circuits, logic, and software functions to ensure the highest possible functional safety performance level is achieved.
- Insulated metal substrate power-base provides superior heat transfer for increased reliability.
- Fail-Safe power component design.
- Reverse polarity protection on battery connections.
- Short circuit protection on all output drivers.
- Thermal cutback, warning, and automatic shutdown provide protection to motor and controller.
- Rugged sealed housing and connectors meet IP65 environmental sealing standards for use in harsh environments.
Meets or complies with relevant US and International Regulations
- EMC: Designed to the requirements of EN12895.
- Safety: Designed to the requirements of: EN1175-1:1998+A1:2010; EN (ISO) 13849-1
- IP65 Rated per IEC 60529.
- UL recognized per UL583.
- Regulatory compliance of the complete vehicle system with the controller installed is the responsibility of the vehicle OEM.
Package Included:
- 1 x 1236SE-6521 AC Motor Controller
Note:
- Customers need to copy their old software to the device.
- Battery is not included in the package.
Packaging Details:
- G.W.: 4kg

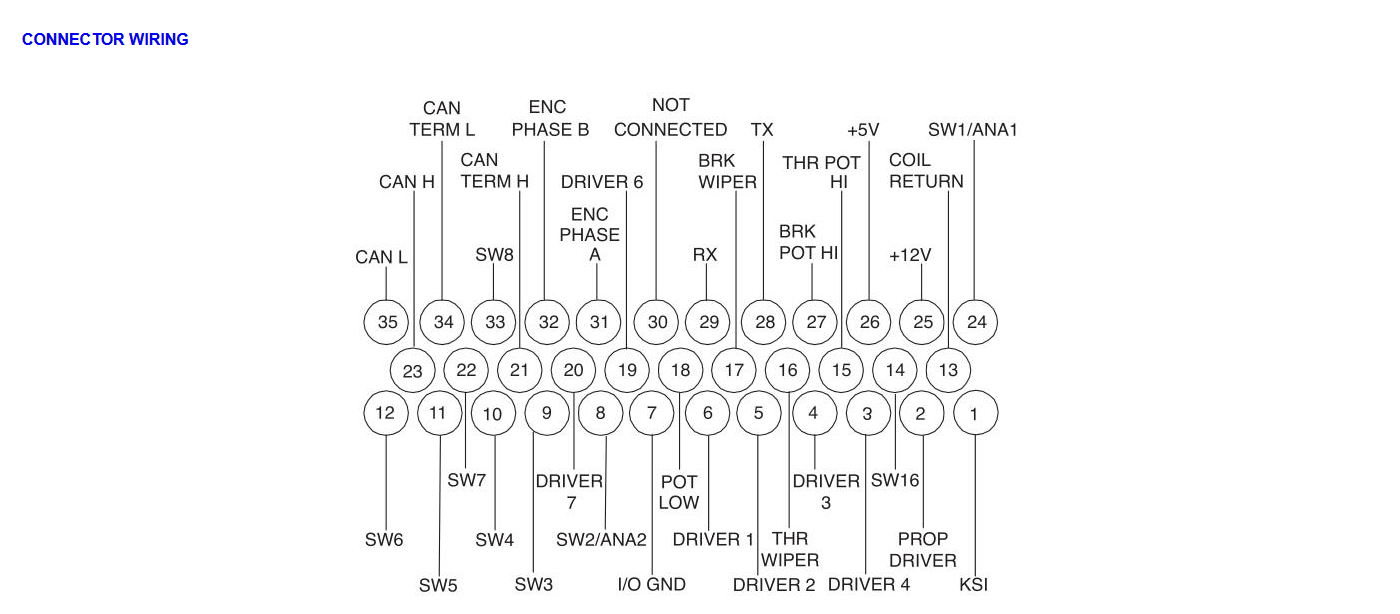

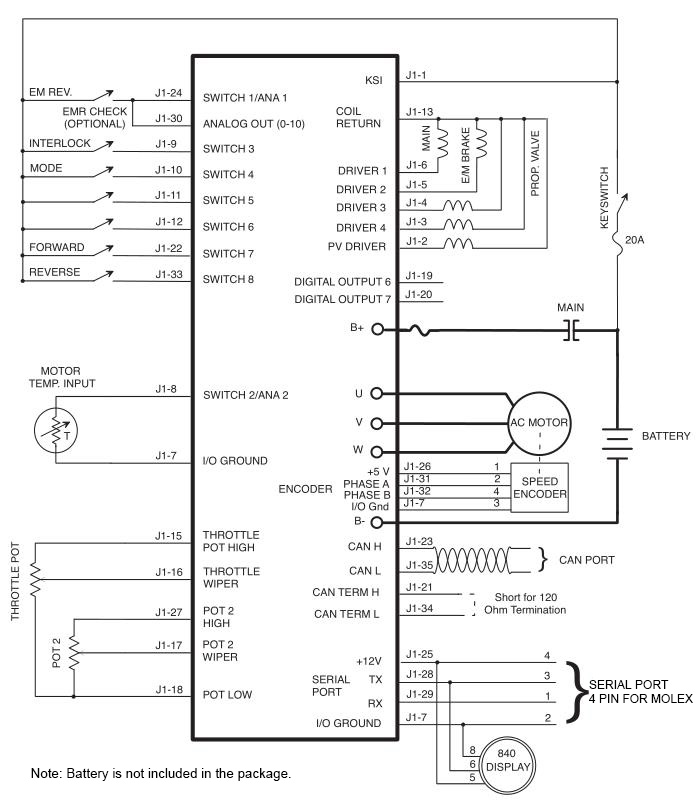

Typical Wiring:
