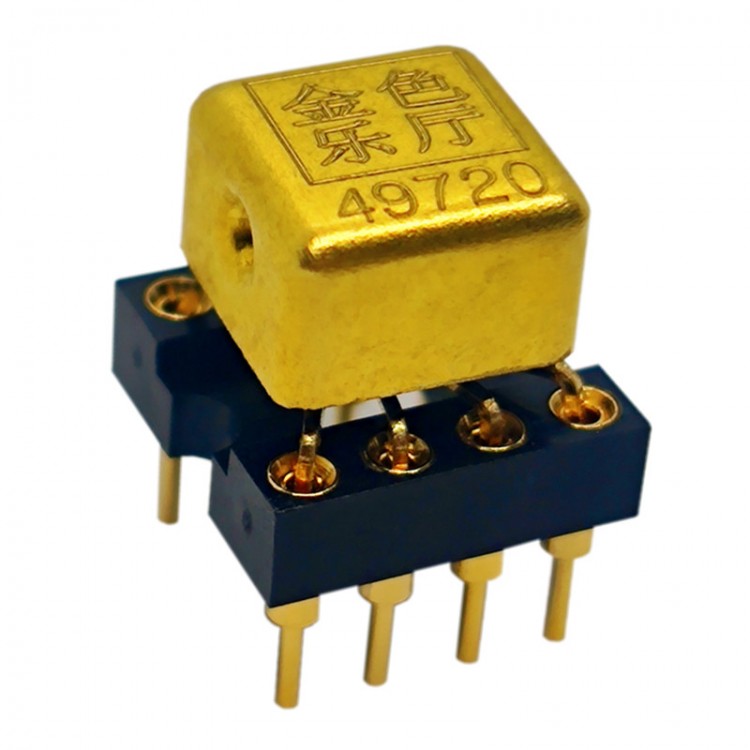

49720 Dual Opamp Operational Amplifier Audio Op Amp Impressive Effect Replacement for LME49720HA
Description:
49720 is an audio-dedicated op amp. It is an advanced dual op amp, which is very suitable for enthusiasts to upgrade standard AD827JN/AQ/SQ, NE5532P, OPA2604AP, OPA2134PA, AD712AQ, etc. of original equipment. The sound of 49720 is clear, transparent and sweet, the details are rich and in place, and the dynamics and resolution are outstanding. The overall sound is fresh, clean and transparent!
Specifications:
- Amplifier type: Audio dedicated J-FET type

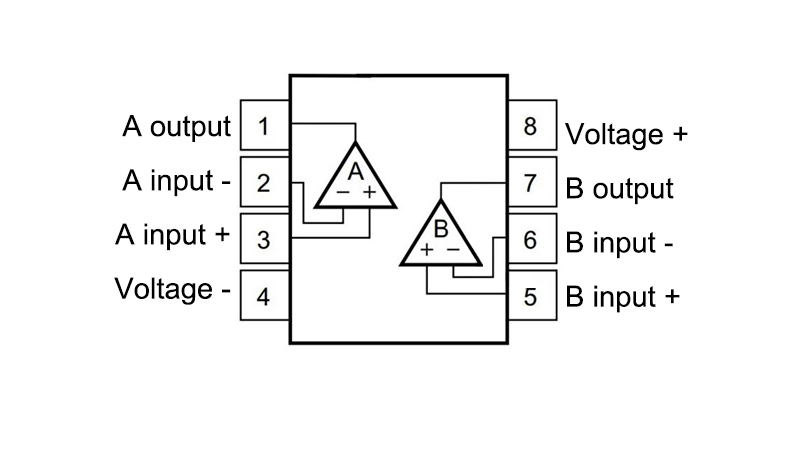

- Number of amplifier channels: Dual op amp
- Conversion rate: 18V/μs
- Bandwidth: 6MHz
- Current - input bias: 22pA
- Voltage-input offset: 1.2mV
- Current-power supply: 1.5mA
- Current - output/channel: 45mA
- Rated voltage: ±3 to ±18V
- Working temperature: -40℃ to 85℃
- Installation type: in-line
- Package: Dual in-line module (for replaceable standard in-line DIP8 package)
Package Included:
- 1 x Op Amp
