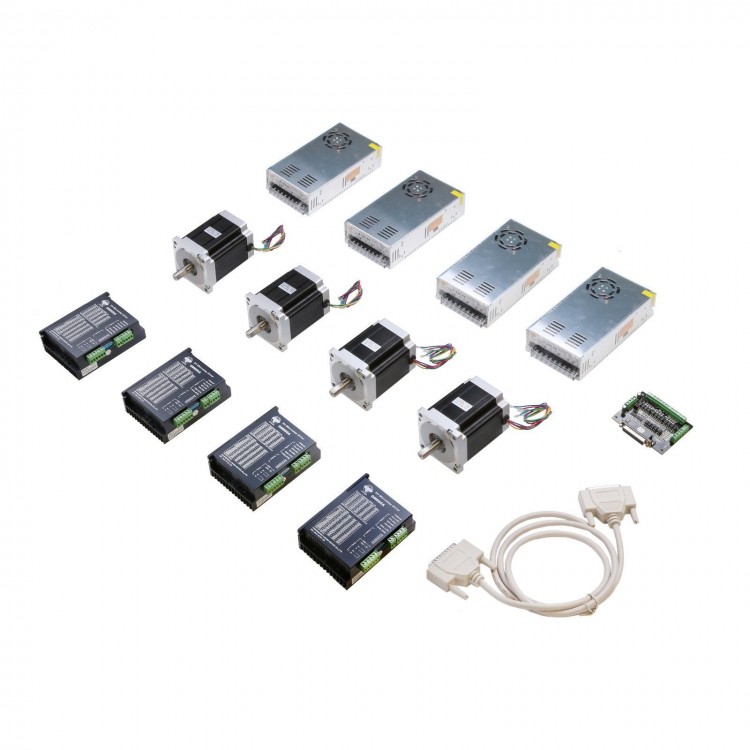

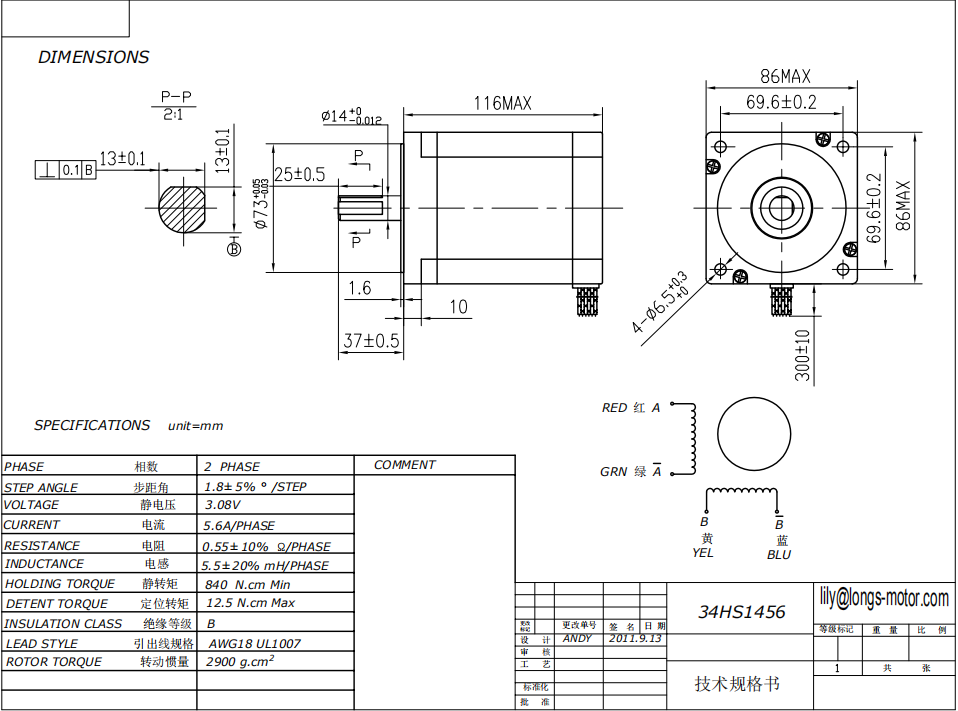

This item includes: 2. Stepper motor driver DM860A 3.Power supply: The power of this power supply is 350Watts, and the output voltage/current is 60V.1. Nema 34 stepper motor
Introduction:
DM860A is a type of two-phase hybrid stepping motor driver, The drive
voltage of which is from 24VDC to 80VDC. It is designed for use with
2-phase hybrid stepper motor of all kinds with 57mm to 110mm outside
diameter and less than 8.0A phase current. This circuit that it adopts
is similar to the circuit of servo control which enables the motor run
smoothly almost without noise and vibration. Hording torque when DM860A
run under high speed is also significantly higher than the other
two-phase driver, what’s more, the positioning accuracy is also higher.
It is widely used in middle and big size numerical control devices such
as curving machine, CNC machine, and computer embroider machine, packing
machines and so on.Features:l High performance, low pricel Average current control, 2-phase sinusoidal output current drivel Supply voltage from 24VDC to 80VDCl Opto-isolated signal I/Ol Overvoltage, under voltage, overcorrect, phase short circuit protectionl 14 channels subdivision and automatic idle-current reductionl 8 channels output phase current settingl Offline command input terminall Motor torque is related with speed, but not related with step/revolutionl High start speedl High hording torque under high speedElectrical specification:Input voltage24-80VDCInput current＜ 6AOutput current2.8A～7.8AConsumptionConsumption：80W； Internal Insurance：10ATemperatureWorking Temperature -10～45℃；Stocking temperature -40℃～70℃HumidityNo condensation, no water dropletsgasProhibition of combustible gases and conductive dustweight500G Pins assignments and description: 1) Connector Pins Configurations Pin Function Details PUL +,PUL- Pulse signal, PUL+ is the positive end of pulses input pin PUL- is the negative end of pulse input pin DIR+,DIR- DIR signal: DIR+ is the positive end of direction input pin DIR- is the negative end of direction input pinENBL+ Enable
signal: ENBL+ is the positive end of direction input pin. This signal
