4G HD Video Encoder Live Broadcast Streaming HDMI H.265 H.264 Hardware

4G HD Video Encoder Live Broadcast Streaming HDMI H.265 H.264 Hardware

Product Description:
- 4G wireless wire Wifi HD broadcast video encoder
- Hardware H.265/264 HD digital video compression technology,stablity,high definition,low bit rate,low delay.H.265 code technology more clear image,lower bandwidth occupied.
- Compatible,Support multi-media
- Support HD 1080P video broadcast record.It can record video with software,support conference rebroadcast,surgery broadcat,TV set box device output HDMI video signal record.
- Support 4G/WiFi/wire/wireless website broadcast,support mobile phone hotspot broadcast
- Support multi website broadcast platform
- Coder support HTTP/UTP/RTMP/RTSP/Protocol streaming  broadcast
- Large capacity lithium battery power supply.It can support 5-hour working in full-charge.

Product Parameter:
- Name:4G HD HDMI Encoder
- Input interface support:HD HDMI interface
- HDMI resolution:1920x1080P@60i/60P,1920x1080_50i,1280x720_60p
- Video encoder format:H.264/H.265
- 1920x1080 code rate range:16kbps~12Mbps
- Video code rate control:CBR/VBR
- GOP type:adjustable
- Audio encoder format:AAC,G.711(ONVIF),support external audio input
- Audio sampling rate:32K,44.1K,48K
- Audio bit rate:48K,64K,96K,128K,160K,192K,256K.
- Audio sampling accuracy:24 bit
- Audio code rate range:64Kb/s~384Kb/s
- Support website interface:RJ45:1000M network port   wireless WiFi:2.4G150M   3G/4G:11M
- Support website protocol:HTTP,UTP,RTSP,RTMP,ONVIF protocol
- Operation configuration interface:WEB operation interface
- Update:can update software through website

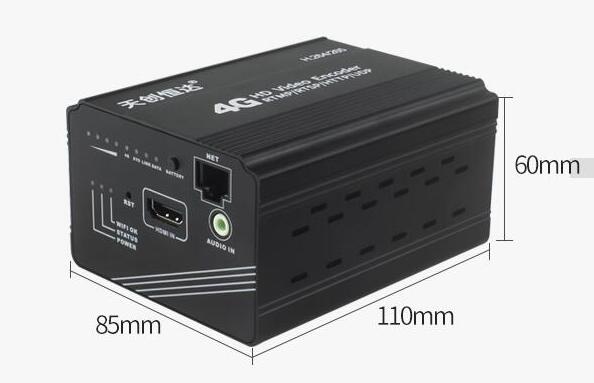

- Dimension:110x85x60mm(LxWxH)
- Weight:main unit:0.56kg   package weight:1.2kg
- Temperature range:0℃~45℃(operation),-20℃~80℃(storage)
- Power:battery power supply,charging voltage 5V/2A
- Power consumption:5W/1-channel

Application:
- UAV live broadcast
- Outdoors broadcast
- Wedding broadcast
- Company party broadcast
- Foundation/Opening ceremony

Package List:
- 1 x 4G Encoder main unit
- 1 x WiFi antenna,4G antenna
- 1 x Router antenna
- 1 x Long Power adapter
- 1 x Short Router antenna
- 1 x Router antenna
- 1 x HDMI wire
- 1 x Audio wire
- 1 x User manual,Certificate,Hot Shoe
- 1 x Retrieve pin
