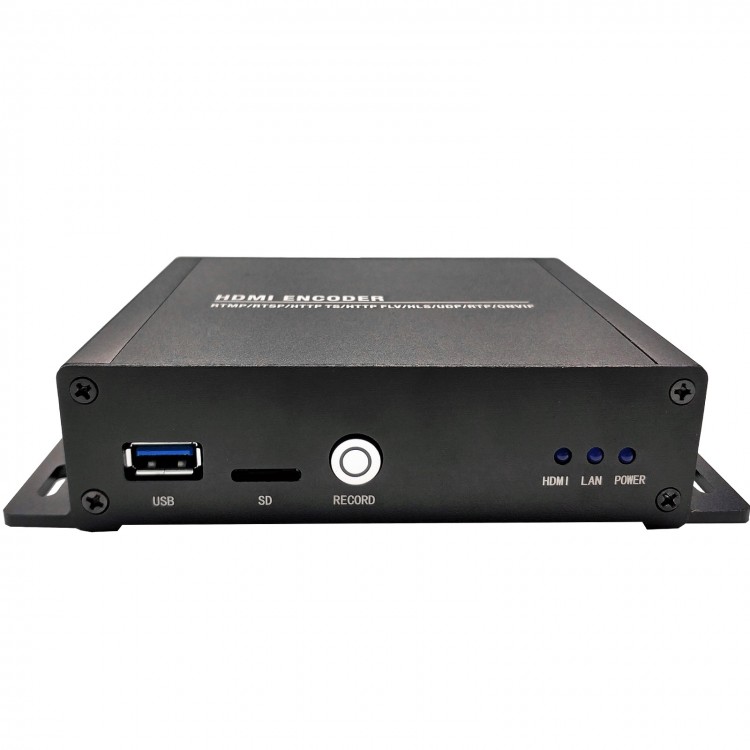

4K 60FPS HDMI Video Encoder H.265 Encoder H.264 Loop Output Live For IPTV BT2020 HDR10 XE9A60
Advantages:
- 4K 60FPS HDMI loop output video encoder
- Support for BT2020 color gamut
- Support for 100M bit rate encoding
- Support for HDR10, 10BIT input and encoding
- Support one-click recording of USB3.0 U disk/SD card in format for NTFS/EXFAT/FAT32
- 4096x2160@60fps; 3840x2160@60fps; 2560x1440@144fps
- Support for live broadcast platforms for RTMP live
- For standard ONVIF to connect NVR for Hikvision and Dahua
- Video screen can add LOGO and scrolling text
Specifications:
Audio & Video Interfaces:
- Video Input: 1-way HDMI
- Audio Input: 1-way HDMI built-in audio, 1-way analog external audio
- Audio Video Loop Output: 1-way HDMI, 1-way analog external audio
Video Input:
- Maximum Resolution: 4096x2160@60 (compatible with lower resolutions)
- Color Space: HDR10 10bit
Video Encoding:
- Encoding type: H.265/H.264/MJPEG optional
- H.265 level: Main profile/Main 10 profile optional
- H.264 level: Baseline profile/Main profile/High profile optional
- Encoding frame rate: 5-60 adjustable
- Typical resolution (high frame rate):
* 4K DCI: 4096x2160@60
* 4K: 3840x2160@60
* 2K: 2560x1440@144
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-100000 adjustable
- Color depth: HDR10 10bit
- Color gamut: BT601/BT709/BT2020 optional
- Resolution after encoding: 4096x2160/3840x2160/1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144/same as input resolution
- Bit stream control: Cbr/vbr optional
- Streaming: Support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP Multicast/RTP Multicast
Audio Encoding:
- Encoding sampling rate: 44100/48000 optional
- Coding method: AAC/AAC+/AAC++/MP3/MP2/AC3 optional
- Encoding bit rate: AAC: 48000-320000 adjustable; AAC+: 24000-48000 adjustable; AAC++: 12000-32000 adjustable; MP3: 64000-320000 adjustable; MP2: 64000-320000 adjustable; AC3: 40000-640000 adjustable
- Left & right channels: L+R/L/R adjustable
- Digital volume: -50 to 50 adjustable
- PTE stream uses G711A encoding: disable/enable optional
Audio For ONVIF:
- RTSP stream uses G711A encoding: disabled/enabled/enabled and resampled to 8K
- G711 encoding: G711A/G711U
Video Record:
- Storage: For NTFS/EXFAT/FAT32 format USB3.0 U disk/SD card
- View: Built-in server for SAMBA, for online video viewing
- File format: Ts format
OSD:
- Transparency: 0-128 adjustable
- Type: text/picture/scrolling text
- Regions: 4 regions are optional
- X coordinate: 0-3840
- Y coordinate: 0-2160
- LOGO: 4 LOGOs can be uploaded for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional
General:
- Network: Gigabit
- Configuration management: configuration management via WEB
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: < 5W
- Working temperature: -20℃ to 60℃
- Working humidity: < 90%, non-condension
- Product Size: 15.6 x 10.4 x 3.5 cm
Package Included:
- 1 x Set of Video Encoder
